12 / 24 page

2016-01-25

Version 1.5

CW CBLPM1.S1

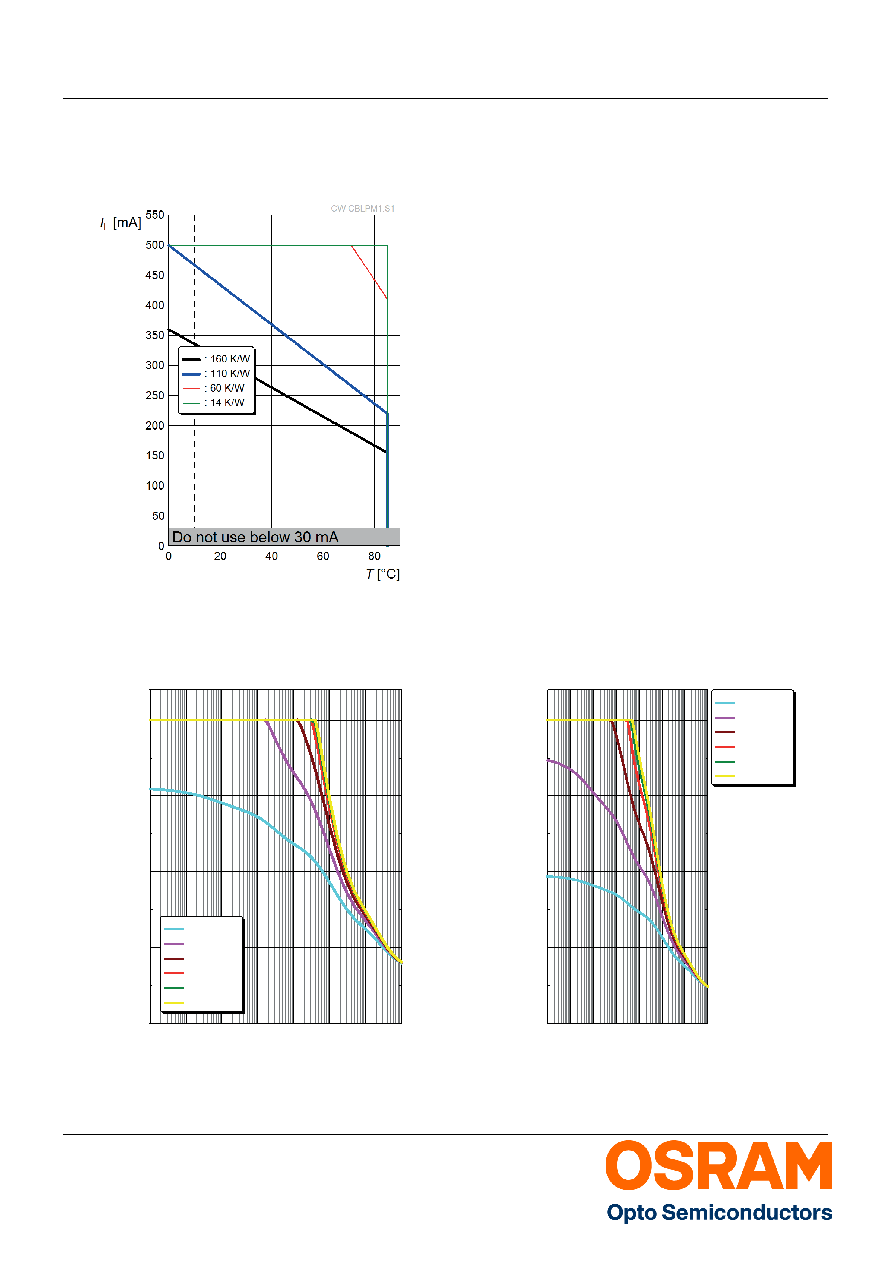

Max. Permissible Forward Current

Max. zulässiger Durchlassstrom

IF = f (T)

Permissible Pulse Handling Capability

Zulässige Impulsbelastbarkeit IF = f(tp)

Rth JA el = 160 K/W; TA = 25°C; still air; FR4

Permissible Pulse Handling Capability

Zulässige Impulsbelastbarkeit IF = f(tp)

Rth JA el = 160K/W; TA = 85°C; still air; FR4

Note:

Deratings strongly relate on the boundary conditions of

each individual device:

• The DC-derating on the left represents several thermal

resistance values Rth JA (Junction/Ambient) as

examples.

• The shown pulse-deratings represent just one of

alterative options for use. For further information please

refer to application note „Thermal Management of Flash

LEDs“.

10-5

10-4

10-3

0,01

0,1

Pulsetime

[s]

0,0

0,5

1,0

1,5

2,0

IF [A]

CW CBLPM1.S1

: D = 0.2

: D = 0.1

: D = 0.05

: D = 0.02

: D = 0.01

: D = 0.005

10-5 10-4 10-30,01 0,1 1 10

Pulsetime

[s]

0,0

0,5

1,0

1,5

2,0

IF [A]

CW CBLPM1.S1

: D = 0.2

: D = 0.1

: D = 0.05

: D = 0.02

: D = 0.01

: D = 0.005
