TNETX15AE
ADDRESS-LOOKUP DEVICE
SPWS041A – AUGUST 1997 – REVISED OCTOBER 1997
76
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
APPLICATION INFORMATION
TNETX15AE/TNETX3150/TNETX3150A stand-alone applications (continued)
PHY
PHY
TNETX3150
TNETX3150A
EEPROM
OSC
TNETX15AE
CPU
Manager
SRAM
DIO
Multiports
EEPROM
MAC
MII

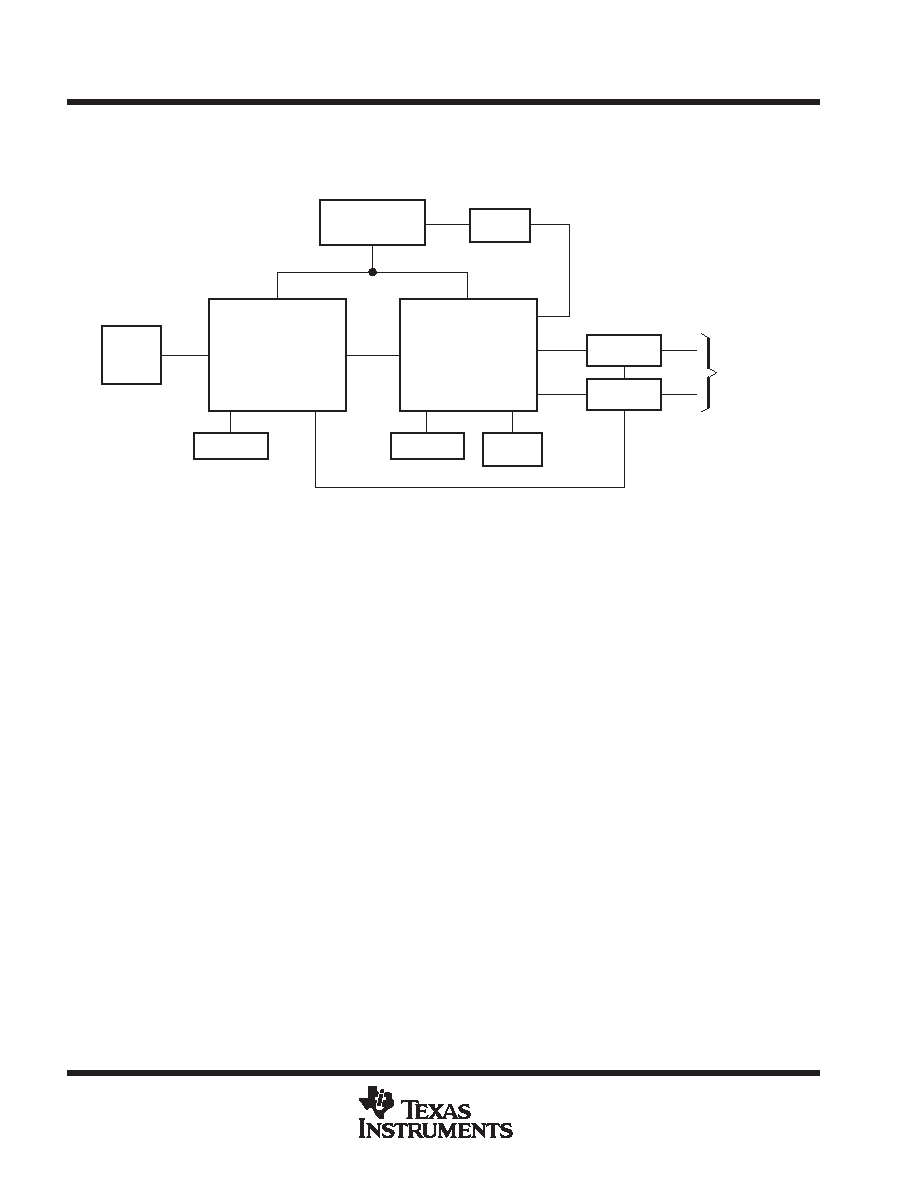

Figure 29. In-Band Managed Multiport Switch
With access to a port, the CPU can receive frames destined to other nodes. By tagging the CUPLNK bit for that
particular address in the address table, the CUPLNK bit copies all frames destined for that address to the ports
specified in UPLINKport. By setting UPLINKport to direct these frames to the management CPU, it can receive
frames of interest.
