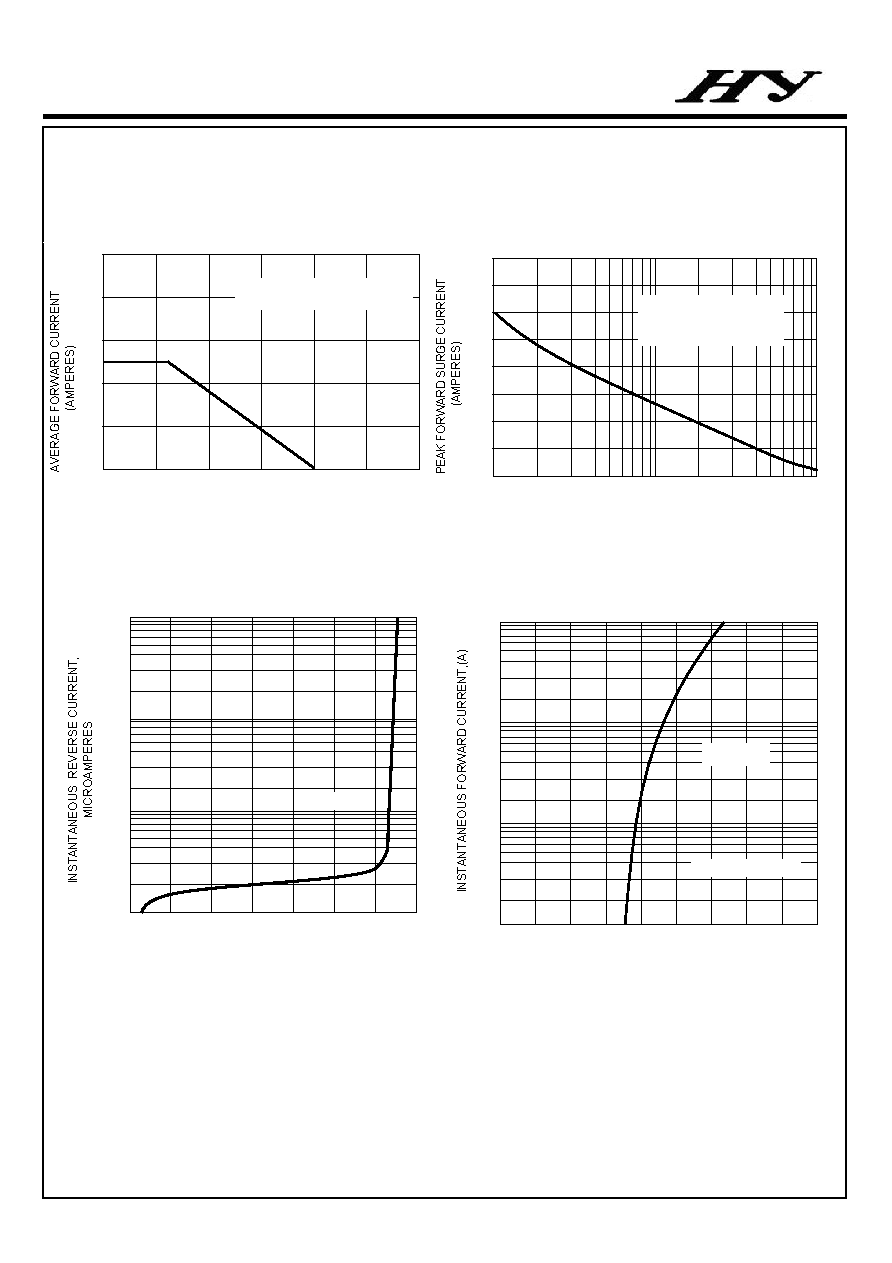

RATING AND CHARACTERTIC CURVES

SQL9-1 thru SQL9-10

The cruve graph is for reference only, can't be the basis for judgment(曲线图仅供参考)!

Rev. 7, 16-Mar-2017

NUMBER OF CYCLES AT 60Hz

FIG. 2 – MAXIMUM NON-REPETITIVE SURGE CURRENT

150

100

200

100

PULSE WIDTH 8.3

SINGLE HALF-SINE-WAVE

(JEDEC METHOD)

FIG.4-TYPICAL FORWARD CHARACTERISTICS

INSTANTANEOUS FORWARD VOLTAGE,VOLTS

0.1

1.0

0.01

0.2

0.4

0.6

0.8

1.2

1.6

1.4

1.0

1.8

TJ = 25°C

PULSE WIDTH 300us

PERCENT OF RATED PEAK REVERSE VOLTAGE

FIG.3-TYPIACL REVERSE CHARACTERISTICS

100

120

140

0.01

0.1

1.0

TJ=25℃

FIG. 1 – FORWARD CURRENT DERATING CURVE

AMBIENT TEMPERATURE

10.0

100

125

150

175

8.0

6.0

4.0

2.0

0.0

SINGLE PHASE HALF WAVE 60Hz

RESISTIVE OR INDUCTIVE LOAD
