PACDN042
www.onsemi.com
4
PERFORMANCE INFORMATION
Diode Capacitance
Typical diode capacitance with respect to positive TVS cathode voltage (reverse voltage across the diode) is given in Diode
Capacitance vs. Reverse Voltage.

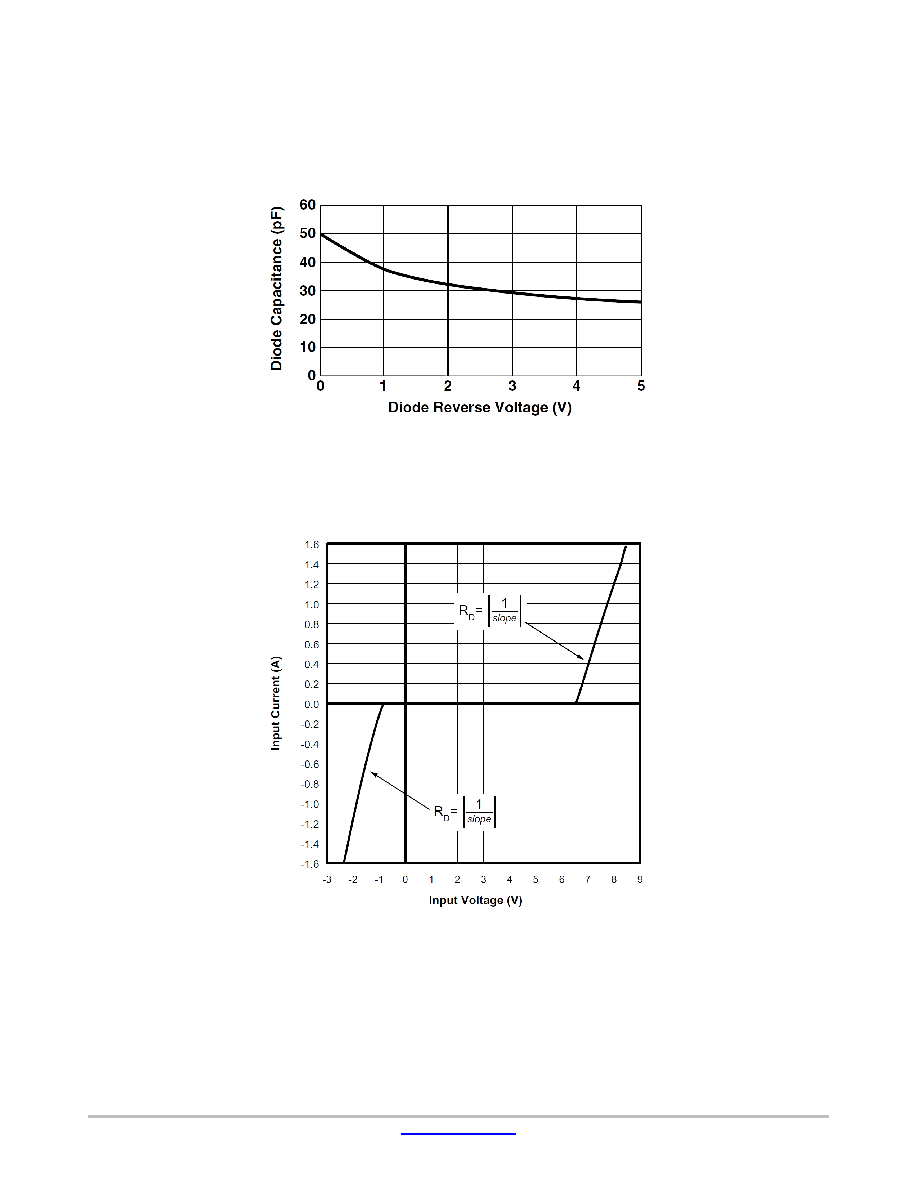

Figure 1. Diode Capacitance vs. Reverse Voltage
Typical High Current Diode Characteristics
Measurements are made in pulse mode with a nominal pulse width of 0.7 mS.
Figure 2. Typical Input VI Characteristics
(Pulse−mode measurements, pulse width = 0.7 mS nominal)
