OUTLINE DIMENSIONS

TOP VIEW

0.30

0.25

0.20

BOTTOM VIEW

PIN 1 INDEX

AREA

SEATING

PLANE

0.80

0.75

0.70

1.55

1.45

1.35

1.84

1.74

1.64

0.203 REF

0.05 MAX

0.02 NOM

0.50 BSC

EXPOSED

PAD

3.10

3.00 SQ

2.90

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

COPLANARITY

0.08

0.50

0.40

0.30

COMPLIANT

TO JEDEC STANDARDS MO-229-WEED

PIN 1

INDICATOR

(R 0.15)

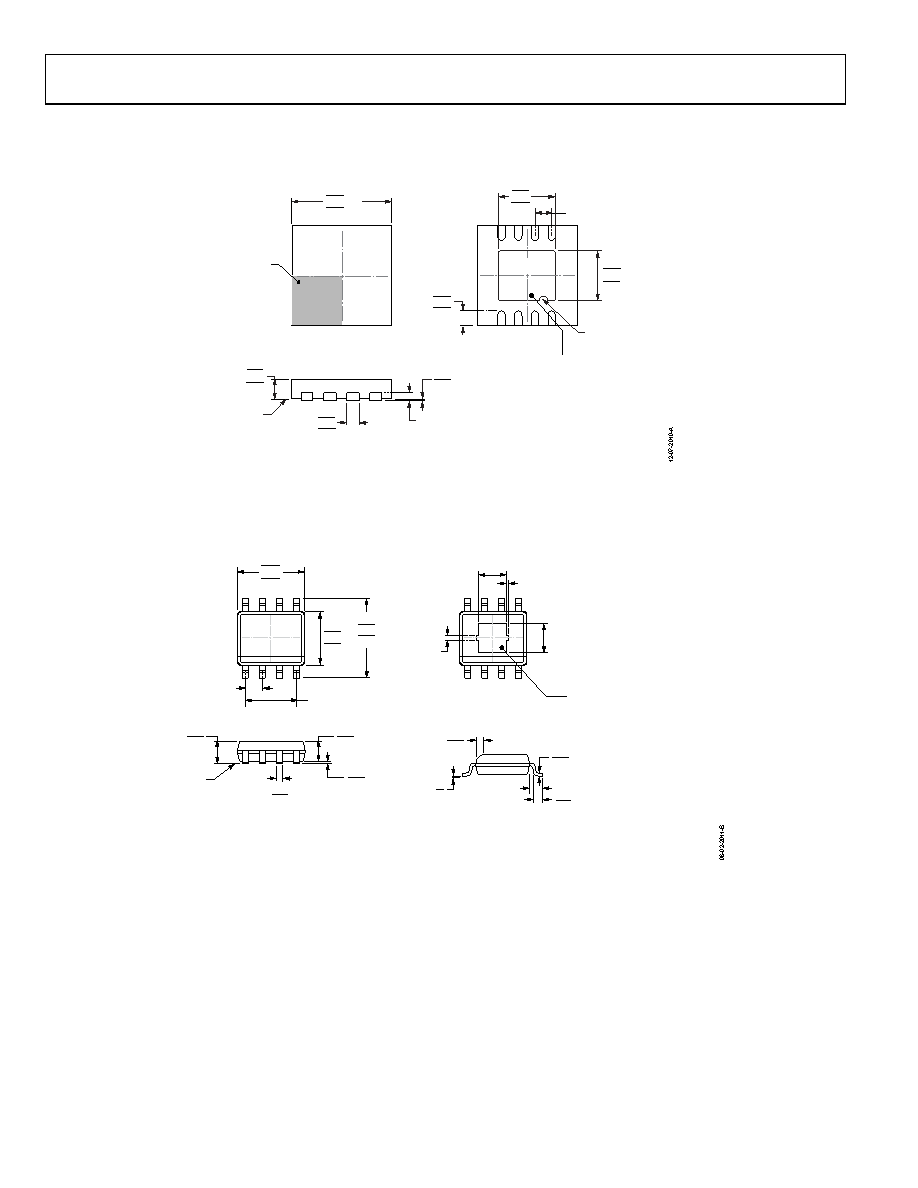

Figure 58. 8-Lead Lead Frame Chip Scale Package [LFCSP]

3 mm × 3 mm Body and 0.75 mm Package Height

(CP-8-13)

Dimensions shown in millimeters

COMPLIANT TO JEDEC STANDARDS MS-012-A A

1.27

0.40

1.75

1.35

2.29

0.356

0.457

4.00

3.90

3.80

6.20

6.00

5.80

5.00

4.90

4.80

0.10 MAX

0.05 NOM

3.81 REF

0.25

0.17

8°

0°

0.50

0.25

45°

COPLANARITY

0.10

1.04 REF

1.27 BSC

SEATING

PLANE

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

BOTTOM VIEW

TOP VIEW

0.51

0.31

1.65

1.25

Figure 59. 8-Lead Standard Small Outline Package with Exposed Pad [SOIC_N_EP]

(RD-8-1)

Dimensions shown in millimeters
