AD8290

Rev. B | Page 20 of 20

OUTLINE DIMENSIONS

COMPLIANT TO JEDEC STANDARDS MO-248-UEED.

0.50

BSC

PIN 1

INDICATOR

TOP VIEW

BOTTOM VIEW

SEATING

PLANE

INDEX

AREA

0.60

0.55

0.51

0.30

0.25

0.18

0.05 MAX

0.02 NOM

0.40 MAX

0.30 NOM

0.08 REF

3.00

BSC SQ

1.80

1.70 SQ

1.55

EXPOSED

PAD

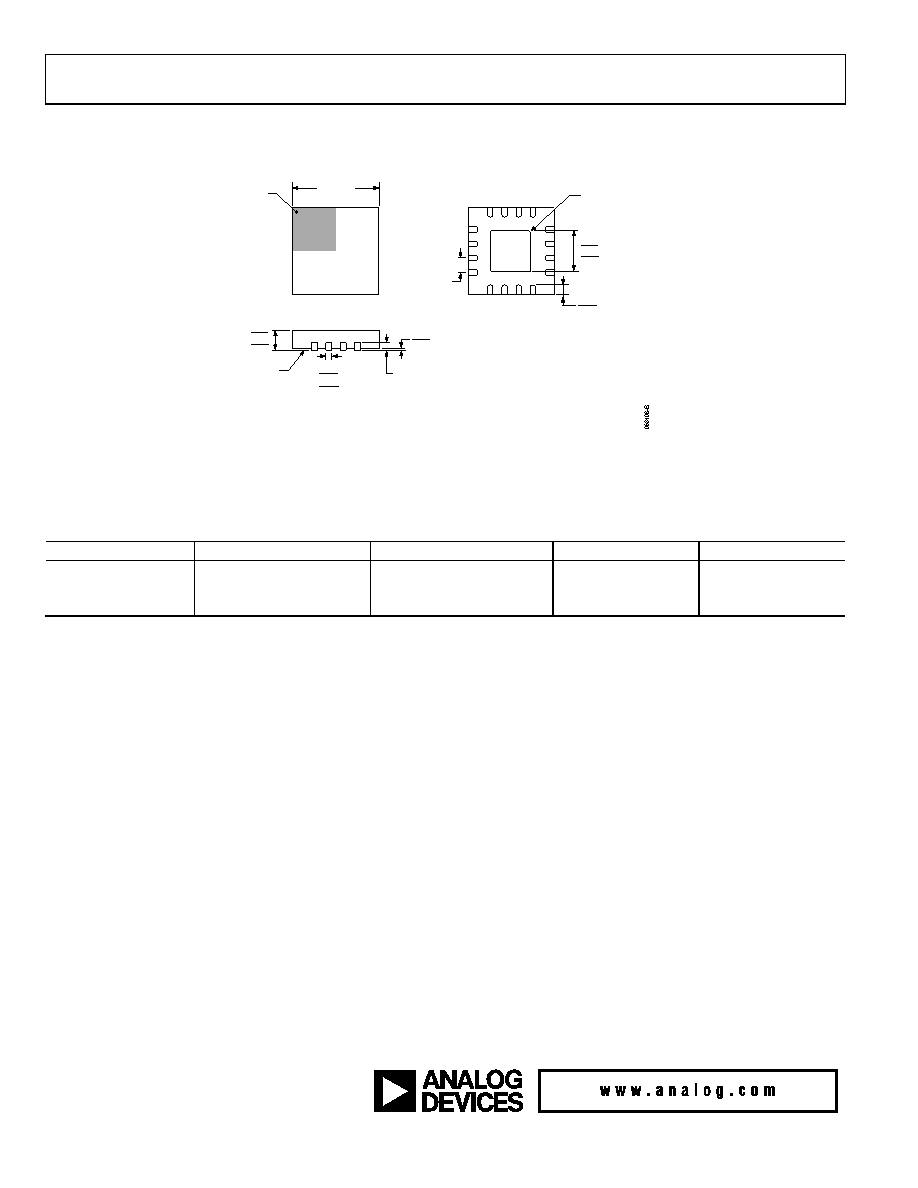

Figure 49. 16-Lead Lead Frame Chip Scale Package [LFCSP_UQ]

3 mm × 3 mm Body, Ultra Thin Quad

(CP-16-12)

Dimensions shown in millimeters

ORDERING GUIDE

Model

Temperature Range

Package Description

Package Option

Branding

AD8290ACPZ-R21

−40°C to +85°C

16-Lead LFCSP_UQ

CP-16-12

Y0J

AD8290ACPZ-R71

−40°C to +85°C

16-Lead LFCSP_UQ

CP-16-12

Y0J

AD8290ACPZ-RL1

−40°C to +85°C

16-Lead LFCSP_UQ

CP-16-12

Y0J

1 Z = RoHS Compliant Part.
