Data Sheet
ADA4805-1/ADA4805-2

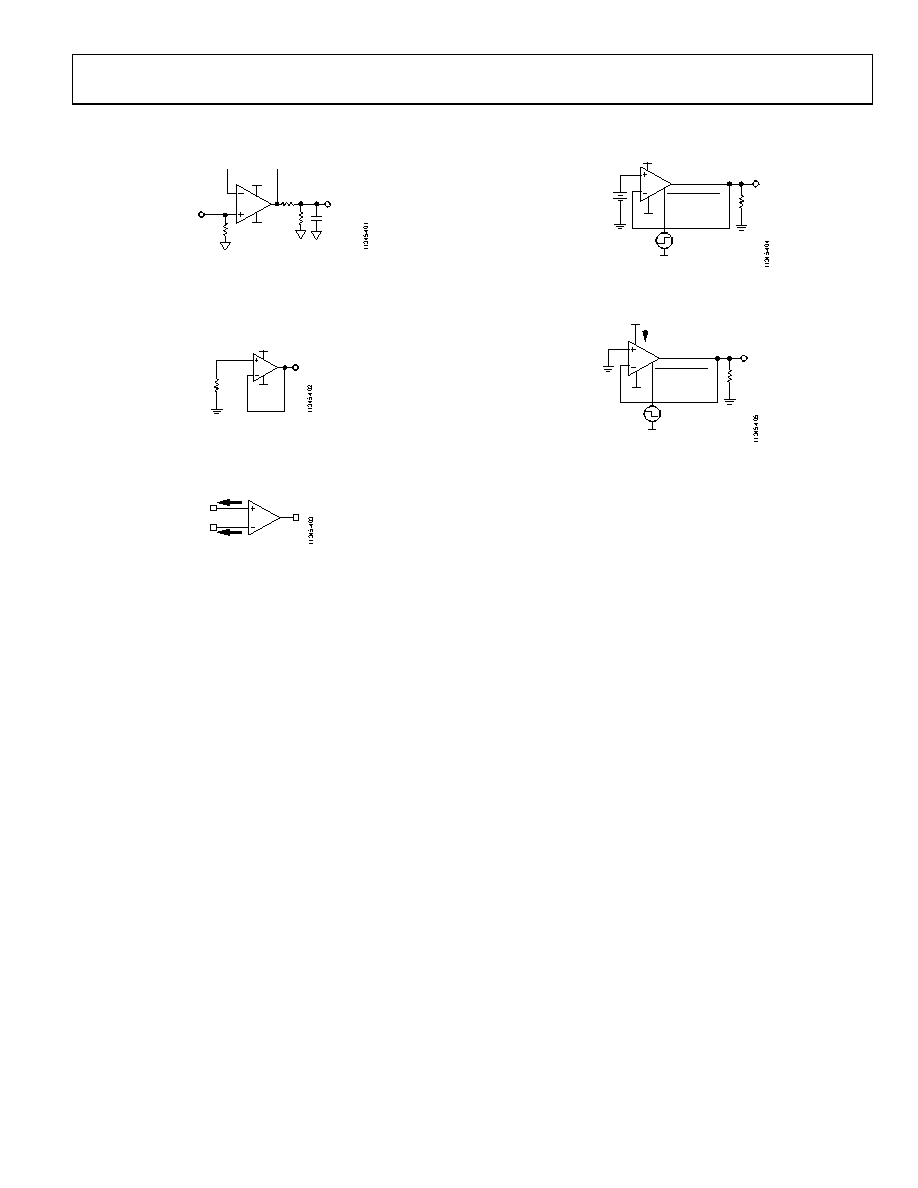

TEST CIRCUITS
50
Ω
RS
+2.5V
–2.5V
VOUT
2kΩ
CL
VIN
20mV p-p
Figure 46. Output Capacitive Load Behavior Test Circuit (See Figure 14)
75kΩ
+2.5V
–2.5V
VOUT
Figure 47. Current Noise Test Circuit (See Figure 23)
+Ib
–Ib
Figure 48. Input Bias Current Temperature Test Circuit (See Figure 28)
–2.5V
0.5V
5V
+
–
–2.5V
SHUTDOWN
+2.5V
VOUT
2kΩ
Figure 49. Turn-On Response Test Circuit (See Figure 38 and Figure 40)
–2.5V
IS
–2.5V
SHUTDOWN
+2.5V
VOUT
2kΩ
5V
+
–
Figure 50. Turn-Off Response Test Circuit (See Figure 39 and Figure 41)
Rev. B | Page 17 of 25
