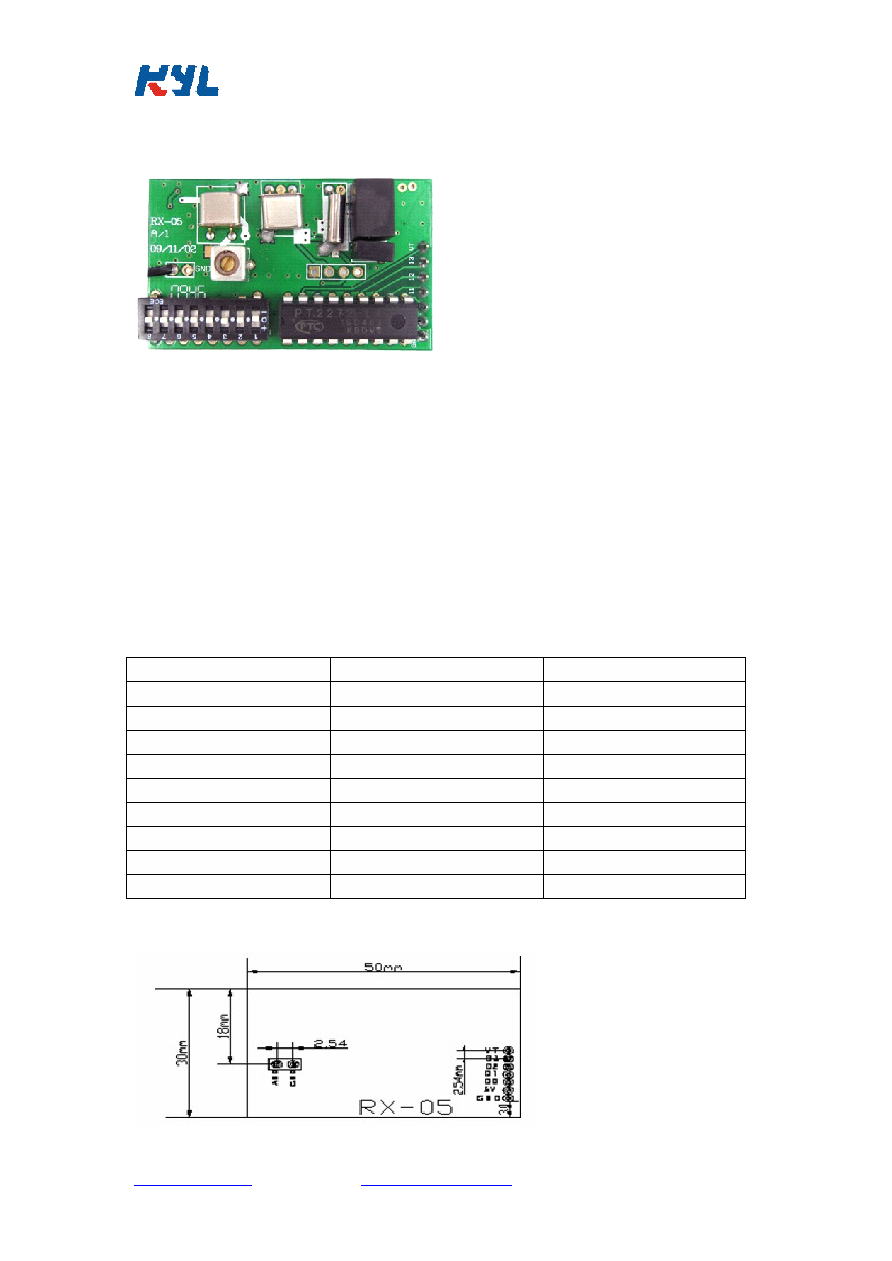

KYL-RX05

Frequency

Frequency Modulation

Modulation

Modulation Receiver

Receiver

Technique

Technique parameter:

parameter:

Working voltage：5V

Working frequency：430.5MHz（Other frequency can be customized）

Working current：5mA

Sensitivity：-120dBm

Transmitting speed：<10Kbps

Encoded mode：bonding pad encoded（Fixed code）

Working method：M4、L4、T4

Modulation：FSK（frequency modulation）

Working temperature： -20℃~+70℃

Size：50mm×30mm×10mm

Diagrammatic

Diagrammatic introduction

introduction

introduction of

of

of pin

pin (From

(From

(From left

left

left to

to

to right

right

right）

Name

Function

1

ANT

antenna input

2

GND

cathode

3

GND

cathode

4

5V

anode

5

D0

IC 13pin data output

6

D1

IC 12pin data output

7

D2

IC 11pin data output

8

D3

IC 10pin data output

9

VT

Valid state sign

Frame

Frame size

size

size diagram(mm)

diagram(mm)

diagram(mm)：
