Data Sheet

ADPD2210

Rev. A | Page 15 of 15

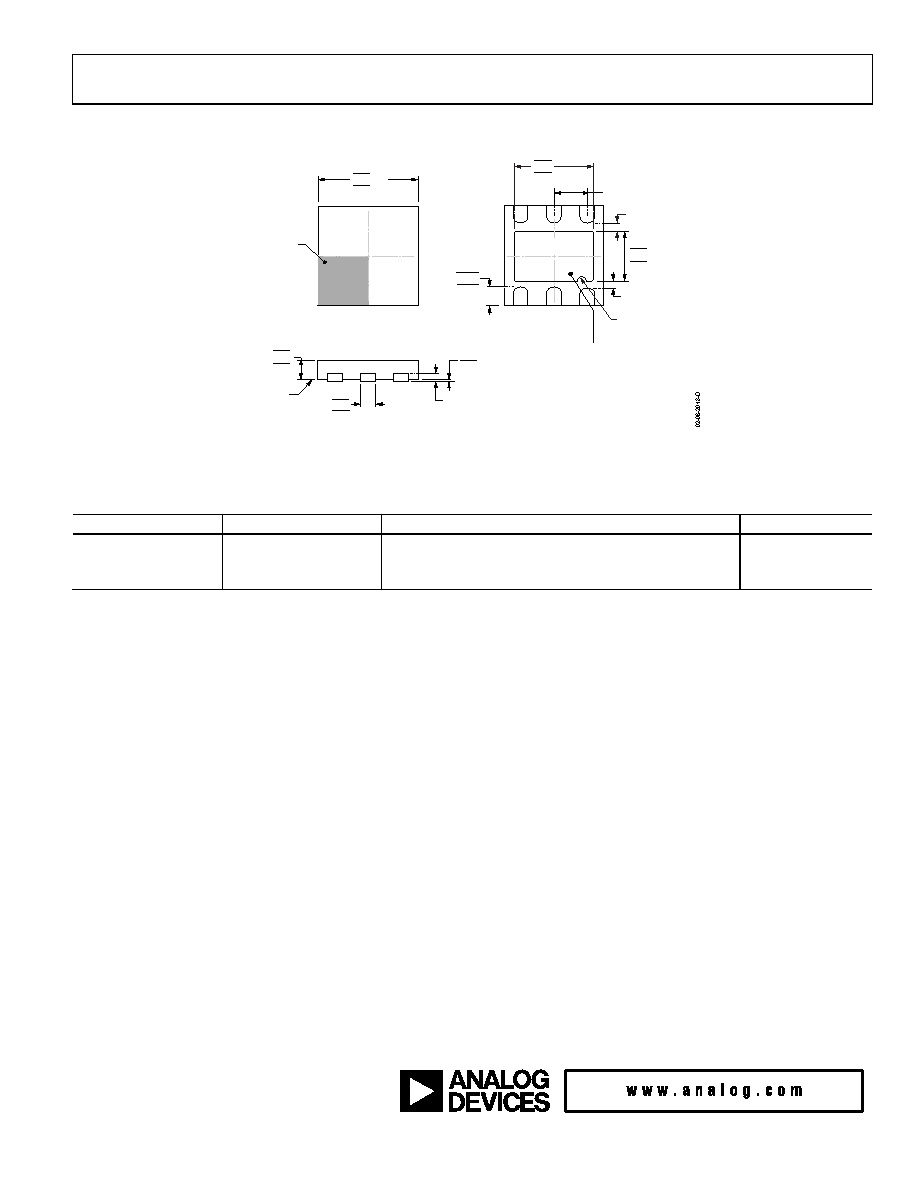

OUTLINE DIMENSIONS

Figure 30. 6-Lead Lead Frame Chip Scale Package [LFCSP_UD]

2 mm × 2 mm Body, Ultra Thin, Dual Lead

(CP-6-3)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Descriptions

Package Option

ADPD2210ACPZ-R7

−40°C to +85°C

6-Lead Lead Frame Chip Scale Package [LFCSP_UD]

CP-6-3

ADPD2210ACPZ-RL

−40°C to +85°C

6-Lead Lead Frame Chip Scale Package [LFCSP_UD]

CP-6-3

EVALZ-ADPD2210

Evaluation Board

1 Z = RoHS Compliant Part.

1.70

1.60

1.50

0.425

0.350

0.275

TOP VIEW

0.35

0.30

0.25

BOTTOM VIEW

PIN 1 INDEX

AREA

SEATING

PLANE

0.60

0.55

0.50

1.10

1.00

0.90

0.20 REF

0.05 MAX

0.02 NOM

0.65 BSC

EXPOSED

PAD

PIN 1

INDICATOR

(R 0.15)

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

0.15 REF

2.10

2.00 SQ

1.90

0.20 MIN

registered trademarks are the property of their respective owners.

D12286-0-12/15(A)
