SP_SERIES datasheet(2/4 Pages) COPAL

2 / 4 page

Strok

★：Made to order products.

Key Way

Strok

Stroke

Key Way

Stroke

SP110

（1 pole）

SP210

（2 poles）

SP110A

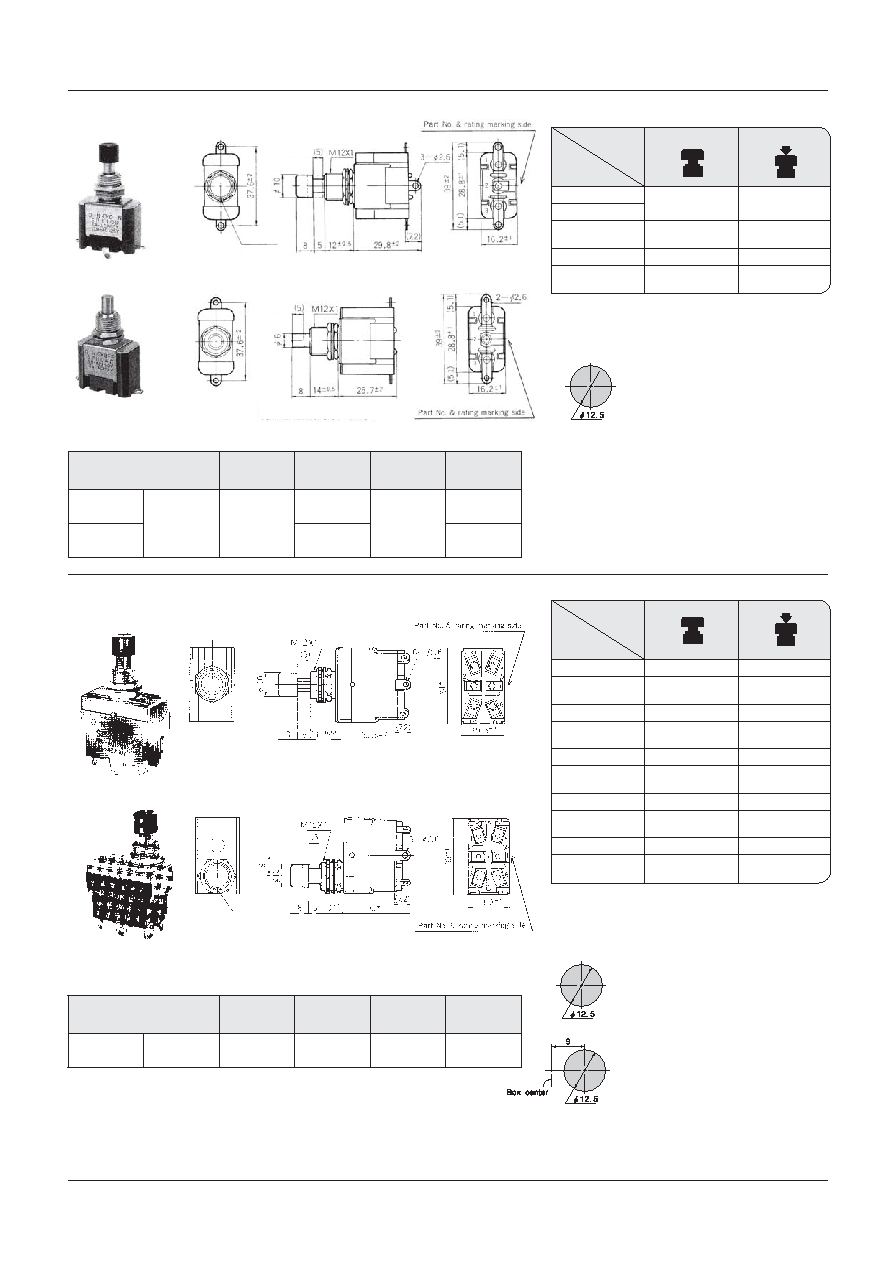

・110D/Dimensions

SP210K

・210N/Dimensions

SP210L

・210M・210R/Dimensions

SP110AC/Dimensions

Switching

function

Part No.

★※SP110A−Z

OFF

★※SP110AC−Z

Connecting terminals

−

−3

★※SP110D−Z

Connecting terminals

−32−1

Switching

function

Part No.

★※SP210K−Z

OFF

Connecting terminals

−3 4−6

−

★※SP210N−Z

Connecting terminals

−1 5−42−3 5−6

★ SP210L−Z

（OFF）

Connecting terminals

−3 4−6

−

☆ SP210M−Z

OFF

（ON）

Connecting terminals

−

−3 4−6

★ SP210R−Z

（ON）

Connecting terminals

−3 5−62−1 5−4

Terminal numbers are shown on the switch.

Terminal pins No.2 and No.5 are not available

in switches with Switching Function K .

Terminal pins No.2 and No.5 are not available

in switches with Switching Function L or M .

■Panel Cut-Out Dimensions

Panel thickness

SP110A

・D 6.5 mm Max.

SP110A C

8.5 mm Max.

■Panel Cut-Out Dimensions

210K. 210N

Panel thickness

：5.5 mm Max.

210L. 210M. 210R

Panel thickness

：4.5 mm Max.

■:WLJPÄJH[PVUZ

Rating

Initial contact

resistance

Dielectric

strength

Insulation

resistance

Electrical

life

SP110A

SP110D

AC125V 10A

AC250V 6A

20m

Ω Max.

AC1500V

1 minute

100M

Ω Min.

10,000

operations

SP110AC

AC1000V

1 minute

30,000

operations

■:WLJPÄJH[PVUZ

Rating

Initial contact

resistance

Dielectric

strength

Insulation

resistance

Electrical

life

SP210K

・

・L・M・R

AC125V 10A

AC250V 6A

20m

Ω Max.

AC1500V

1 minute

100M

Ω Min.

10,000

operations

（ON）and（OFF）

：Momentary.

☆：Semi-standard products.
