PL502-03

Low Phase Noise VCXO (48MHz to 100MHz)

6. Crystal Specifications

PARAMETERS

SYMBOL

MIN.

TYP.

MAX.

UNITS

Crystal Resonator Frequency

12

25

MHz

Crystal Loading Capacitance Rating

9.5

pF

C0/C1

250

-

ESR

30

Ω

Note: Crystal Loading rating: 9.5pF is the loading the crystal sees from the VCXO chip at VCON = 1.65V. It is assumed that the crystal will be at no m-

inal frequency at this load. If the crystal requires more load to be at nominal frequency, the additional load must be added externally.

This however may reduce the pull range.

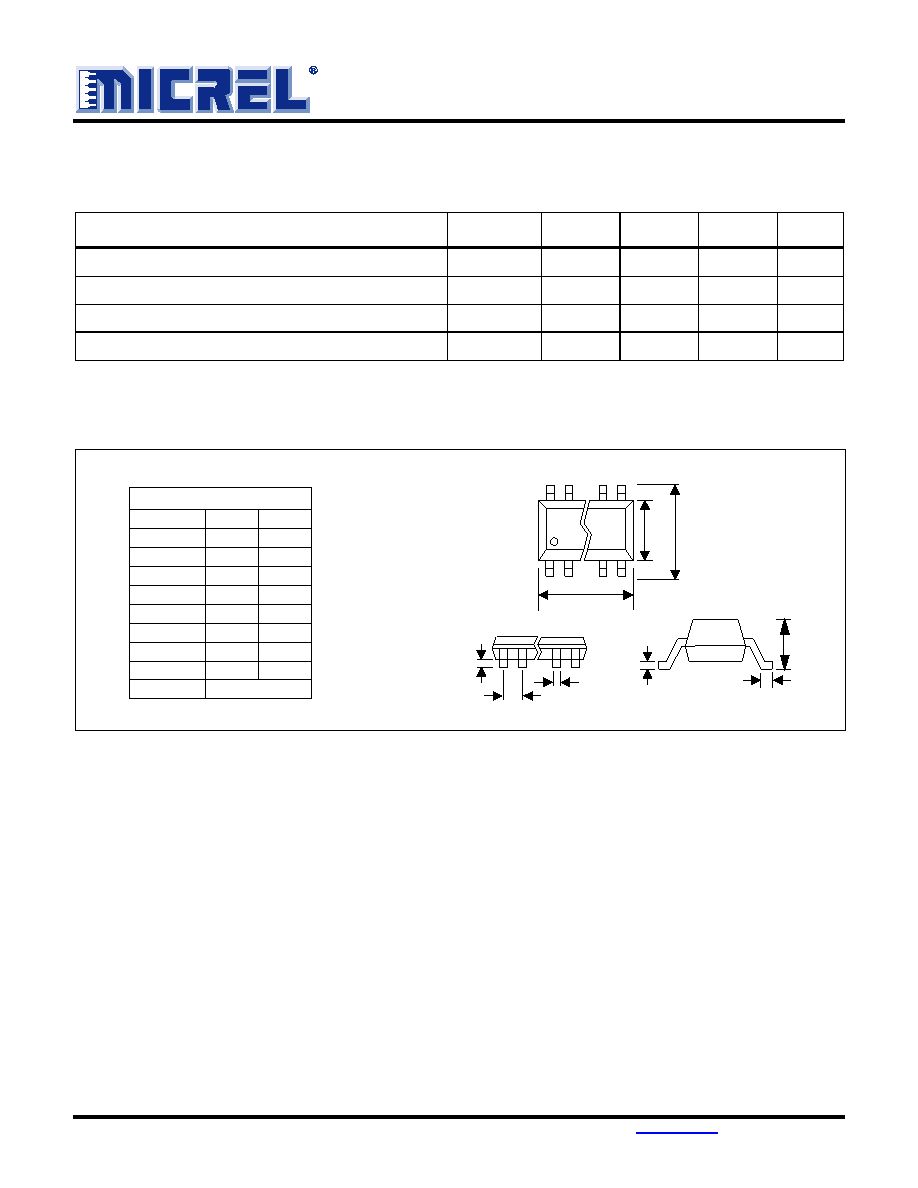

PACKAGE INFORM ATION (GREEN PACKAGE COM PLIANT)

C

L

A

E

H

D

A1

e

B

8 PIN SOP (in mm)

Symbol

Min.

Max.

A

1.47

1.73

A1

0.10

0.25

B

0.33

0.51

C

0.19

0.25

D

4.80

4.95

E

3.80

4.00

H

5.80

6.20

L

0.38

1.27

e

1.27 BSC
