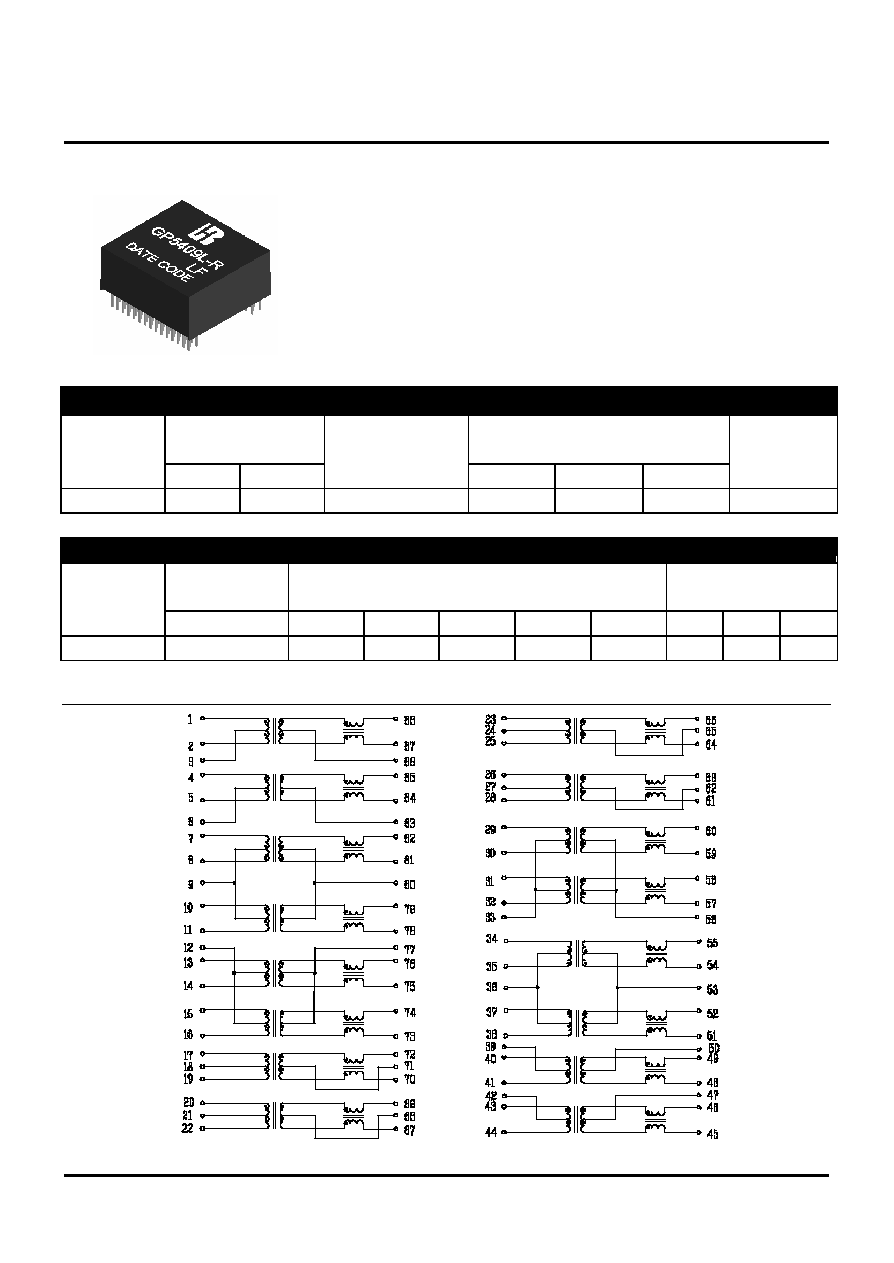

1000 BASE –T QUAD PORT MAGNETICS MODULES

P/N: GP5409L-R LF DATA SHEET

Page : 1/ 2

A2(07/09)

Feature

l

Designed for long haul gigabit Ethernet 1000 BASE-T, full

duplex and POE applications.

l

Supports 16 pairs of category 5 UTP cable.

l

Cable interface for isolation and low common mode

emissions.

l

Compliant with IEEE 802.3ab standard for 1000 BASE-T.

l

Comply with RoHS requirements-whole part No Cd, No Hg,

No Cr6+, No PBB and PBDE and No Pb on external pins.

l

Operating temperature range: 0℃ to +70℃.

l

Storage temperature range: -25℃ to +105℃.

Electrical Specifications @ 25°C

Turns Ratio

(±5%)

Cross talk Attenuation

(dB Min)

Part

Number

TX

RX

OCL (uH Min)

@100KHz/0.1V

with 8mA DC Bias

30MHz

60MHz

100MHz

HI-POT

(Vrms)

GP5409L-R LF

1CT:1CT

350

-40

-35

-30

1500/60s

Continue

Insertion Loss

(dB Max)

Return Loss

(dB Min @100Ω)

DCMR

(dB Min)

Part

Number

1-100MHz

1-30MHz

40MHz

50MHz

60-80MHz

100MHz

30MHz

60MHz 100MHz

GP5409L-R LF

-1.1

-18

-14.4

-13.1

-12.5

-12

-43

-37

-33

Schematic

Bothhand USA

email:sales@bothhandusa.com

tel: 978-887-8050

462 Boston St,

Topsfield, MA 01983

http://www.bothhandUSA.com

email:sales@bothhandusa.com

tel: 978-887-8050

fax: 978-887-5434
