1

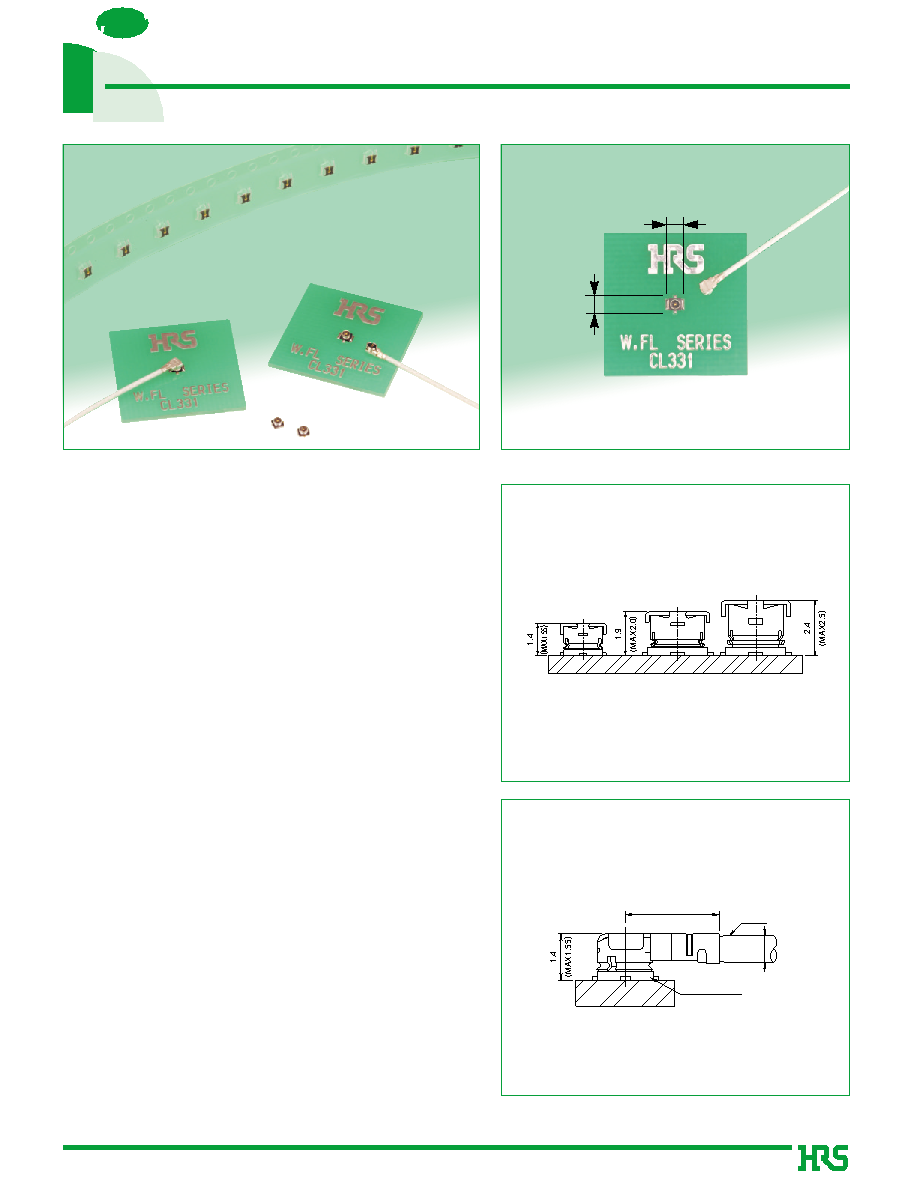

Ultra Small Surface Mount Coaxial Connectors – 1.4mm Mated Height

W.FL Series – Further downsizing of FL series in response to the market needs.

NEW

2004.4

Occupied Mounting Area

q Mated Height Comparison(With U.FL series)

U.FL Series

W.FL Series

U.FL-LP-040

U.FL-LP-066

U.FL-LP(V)-040

W.FL-LP-040

2.85

Plug

W.FL-R-SMT-1

Receptacle

Cable

Dia. 0.81

* Teflon is a registered trademark of DuPont.

2.0

sFeatures

1. Mounting area of only 3.4mm2

2. The board mounted receptacle weights only 5.6 mg

3. Accepts high frequency transmission of DC to 6GHz

4. Receptacle supplied on tape-and-reel for

4. placement on the board with automatic equipment

5. Plugs are terminated with ultra-fine Teflon®

4. insulated coaxial cables

6. Un-mating with a simple tool

sApplications

Mobile phones, Wireless LAN, Bluetooth protocol

devices, PDA, GPS, electronic measuring instruments

and any application requiring high frequency

transmission over coaxial line, where space is limited.

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
