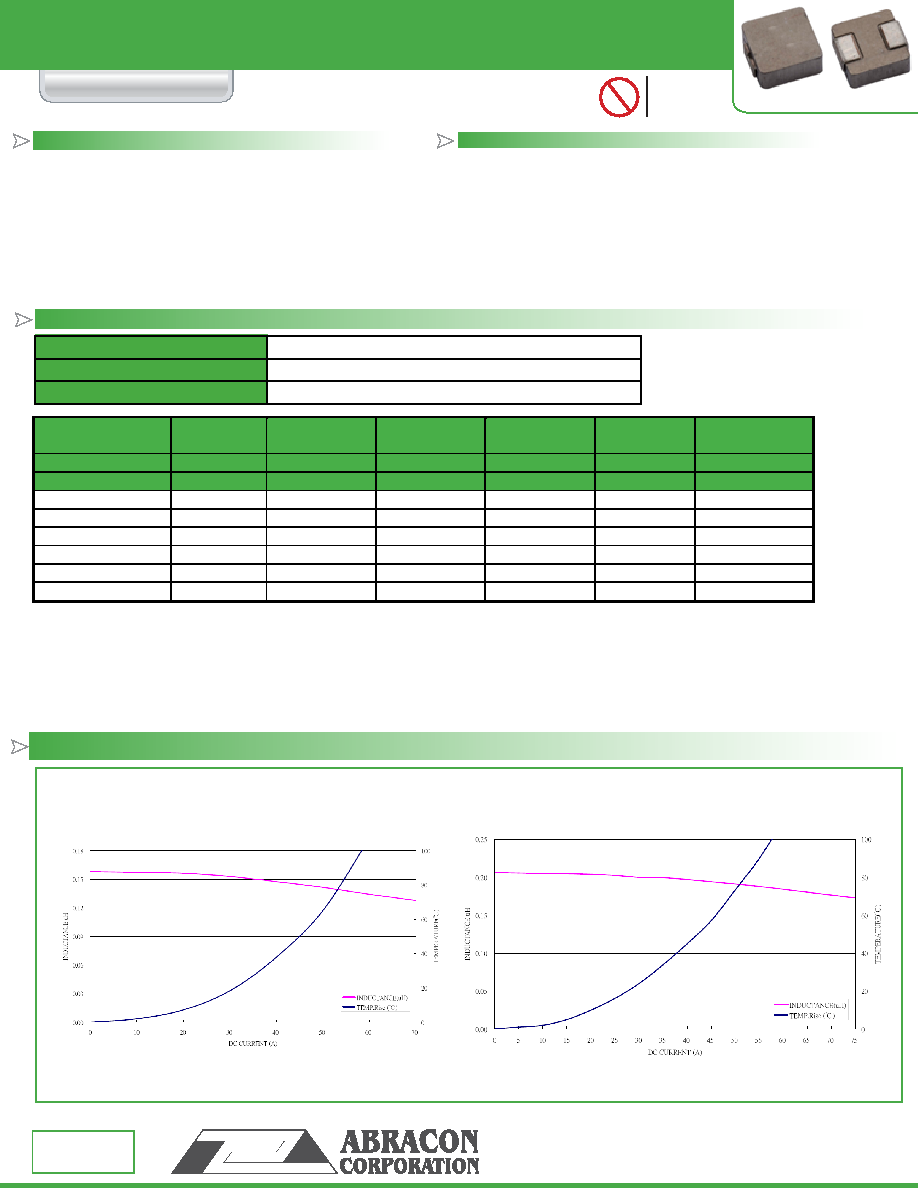

Molding Type Power Inductor

| | | | | | | | | | | | | | |

ASPI-1040HI

APPLICATIONS:

FEATURES:

Pb RoHS

Compliant

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ABRACON IS

ISO 9001:2008

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000| fax 949-546-8001 | www.abracon.com

Revised: 11.19.11

Visit www.abracon.com for Terms & Conditions of Sale

11.15 x 10.0 x 4.0 mm

• High saturation current.

• Low loss due to low DC resistance.

• Frequency application up to 3MHz.

• Low profile with max thickness 4.0mm.

•100% lead free and meeted RoHS standard.

• Suitable for reflow soldering.

• High reliable SMD package

STANDARD SPECIFICATIONS

Abracon P/N:

ASPI-1040HI Series

Operating Temperature & Humidity:

Storage Temperature & Humidity:

-55˚C to +125˚C (Including self generated heat)

+25˚C to +35˚C, 45% to 85% RH

ELECTRICAL CHARACTERISTIC CURVES

• DC/DC converters in Notebook, Netbook, desktop and server

• Low profile, high current power supplies.

Part Number

Inductance

Tolerance

DCR Typ

DCR Max

Saturation

Current

Temperature

Rise Current

Units

μH

%

mΩ

A

Symbol

L

M

Isat*

Irms*

ASPI-1040HI-R16

0.16

M

0.50

0.65

75.0

40.0

ASPI-1040HI-R22

0.22

M

0.88

0.96

68.0

35.0

ASPI-1040HI-R47

0.47

M

1.55

1.70

40.0

30.0

ASPI-1040HI-1R0

1.00

M

3.00

3.30

28.0

18.0

ASPI-1040HI-4R7

4.70

M

17.00

20.20

15.0

8.5

ASPI-1040HI-100

10.00

M

27.00

30.00

8.5

7.5

Test Conditions

Inductance is measured in HP-4284A Precision LCR Meter.

RDC is measured in HP-4338B milli ohm meter.(or equivalent).

. Isat: Based on inductance change (△L/Lo : ≤ -20%)

. Irms: Based on temperature rise (△T : 40oC TYP. )

ASPI-1040HI-R16

ASPI-1040HI-R22
