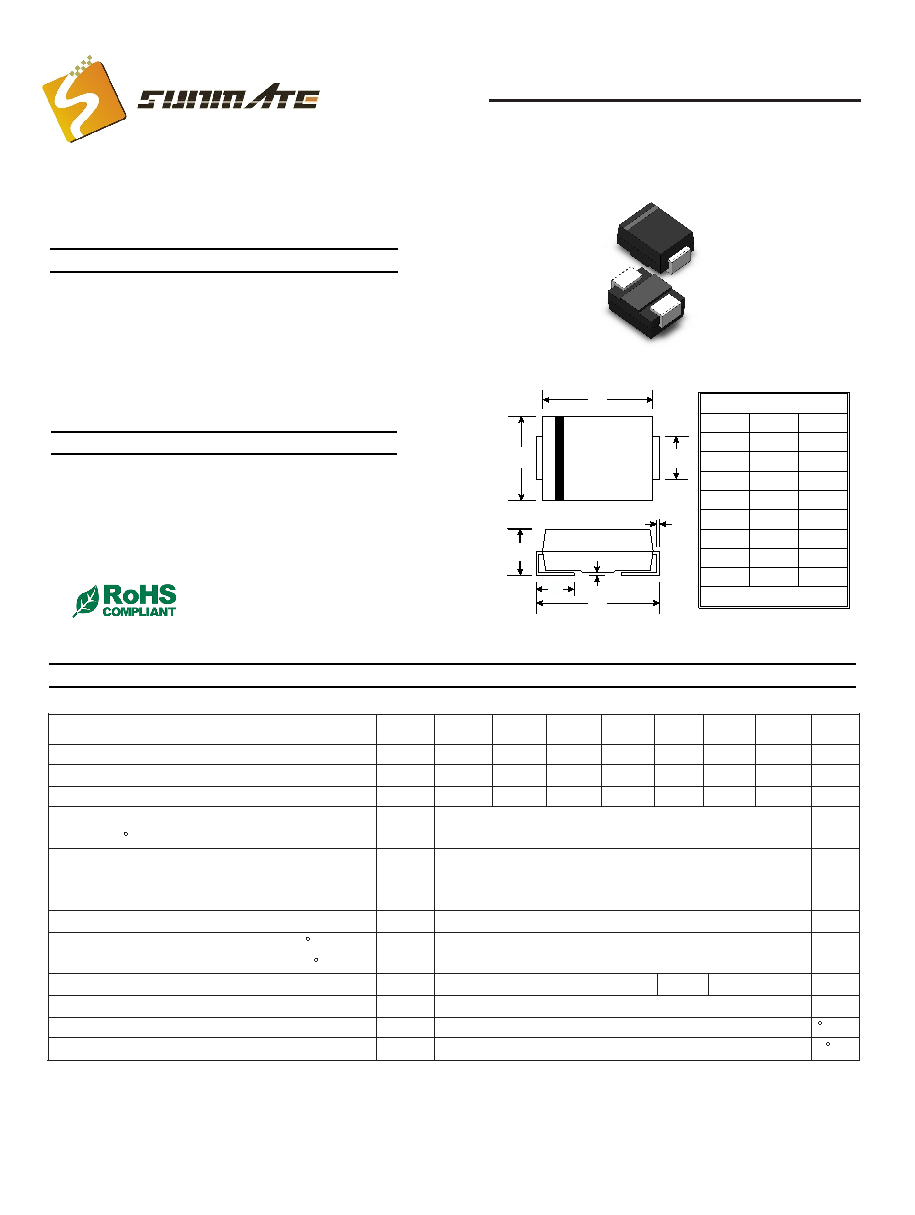

RS3AB - RS3MB

SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Features

Glass Passivated Die Construction

Fast Recovery Time for High Efficiency

Low Forward Voltage Drop and High Current

Capability

Ideally Suited for Automatic Assembly

Plastic Material: UL Flammability

Classification Rating 94V-0

CURRENT : 3.0 A

VOLT AGE RANGE: 50-1000V

Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified

Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.

!

Terminals: Solder Plated, Solderable

per MIL-STD-750, Method 2026

!

Polarity: Cathode Band or Cathode Notch

!

Marking: Type Number

!

Mechanical Data

Case: SMB/DO-214AA, Molded Plastic

Weight: 0.093 grams (approx.)

SMB(DO-214AA)

Dim

Min

Max

A

B

C

1.91

2.21

D

0.15

0.31

E

5.00

5.59

G

0.10

0.20

H

0.76

1.52

J

2.00

2.62

All Dimensions in mm

A

B

C

D

G

H

E

J

3.30

3.94

4.06

4.70

A

B

C

D

G

H

E

J

Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3.P.C.B. mounted with 0.2x0.2

”(5.0x5.0mm) copper pad areas

VRRM

VRMS

VDC

I(AV)

IFSM

VF

3.0

100.0

1.3

Operating junction and storage temperature range

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

at TL=75 C

Peak forward surge current

8.3ms single half sine-wave superimposed on

rated load (JEDEC Method)

Maximum instantaneous forward voltage at 3.0A

Maximum DC reverse current

TA=25 C

at rated DC blocking voltage

TA=100 C

IR

5.0

100.0

R

θJA

CJ

TJ,TSTG

50.0

60.0

-50 to +150

pF

C

A

µ

Typical thermal resistance (NOTE 3)

C/W

Typical junction capacitance (NOTE 2)

Maximum reverse recovery time

(NOTE 1)

trr

150

250

500

ns

RS3AB

RS3BB

RS3DB

RS3GB

RS3JB

RS3KB

RS3MB

50

35

50

100

70

100

200

140

200

400

280

400

600

420

600

800

560

800

1000

700

1000

Characteristic

Symbol

Unit

V

A

V

1 of 2

www.sunmate.tw
