LB200-S/SP4 Fiches technique(PDF) 2 Page - LEM

No de pièce LB200-S/SP4
Description  Current Transducer LB 200-S/SP4
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  LEM [LEM]
Site Internet  http://www.lem.co.jp/HQ/en
Logo LEM - LEM

LB200-S/SP4 Fiches technique(HTML) 2 Page - LEM

  LB200-S/SP4 Datasheet HTML 1Page - LEM LB200-S/SP4 Datasheet HTML 2Page - LEM
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image
Secondary terminals
Terminal + : supply voltage + 15 V
Terminal M : measure
Terminal - : supply voltage - 15 V
Terminal E : shield
Connection
Remarks
• I
S is positive when IP flows in the direction of the arrow.
• Temperature of the primary conductor should not exceed
70°C.
• Dynamic performances (di/dt and response time) are best
with a single bar completely filling the primary hole.
Mechanical characteristics
• General tolerance
± 0.2 mm
• Fastening
2 holes
∅ 5.5 mm
• Primary through-hole
∅ 20 mm
• Connection of secondary
Faston 6.3 x 0.8 mm

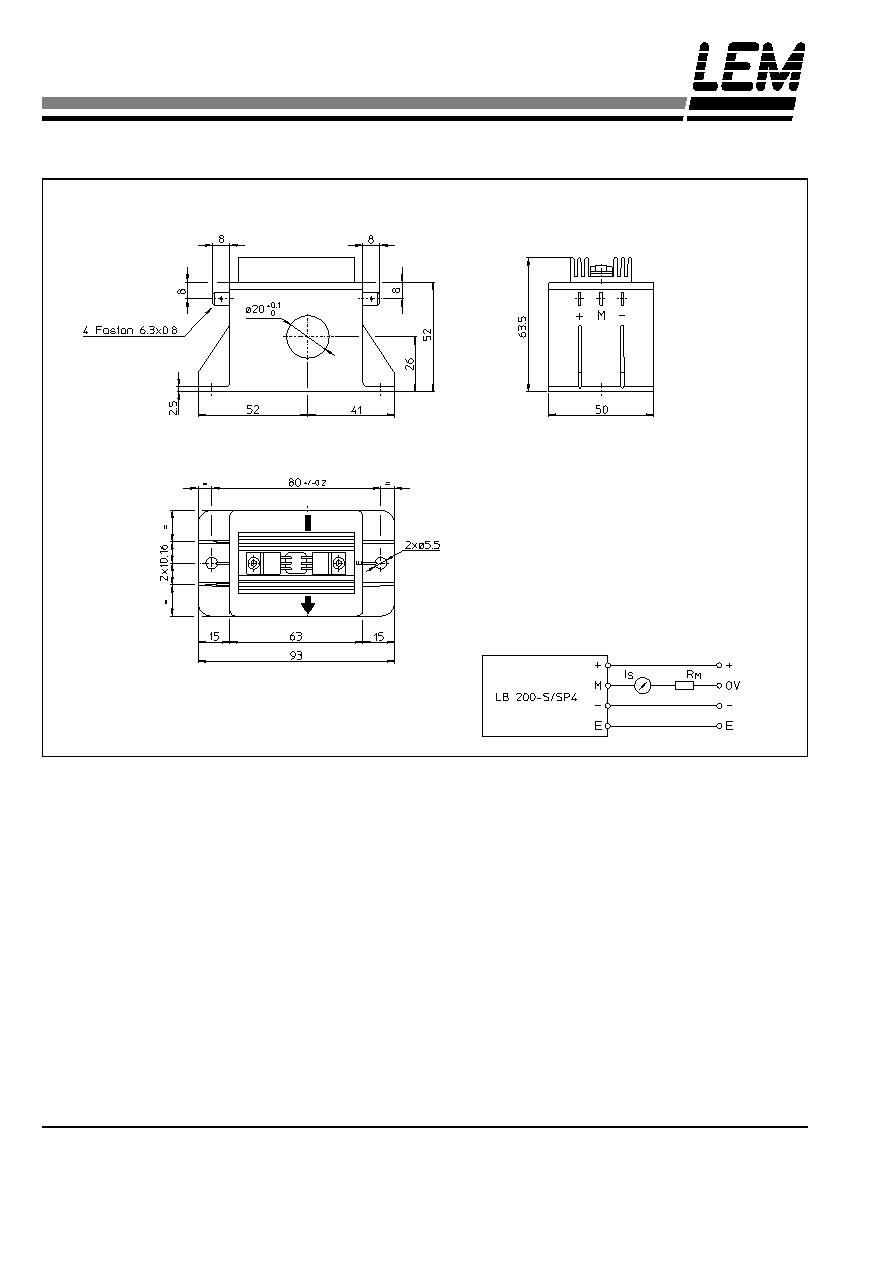

Dimensions LB 200-S/SP4 (in mm. 1 mm = 0.0394 inch)
Front view
Top view
Left view
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without previous notice.
