STPS2170AF Fiches technique(PDF) 3 Page - STMicroelectronics

No de pièce STPS2170AF
Description  Power Schottky rectifier
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  STMICROELECTRONICS [STMicroelectronics]
Site Internet  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STPS2170AF Fiches technique(HTML) 3 Page - STMicroelectronics

  STPS2170AF Datasheet HTML 1Page - STMicroelectronics STPS2170AF Datasheet HTML 2Page - STMicroelectronics STPS2170AF Datasheet HTML 3Page - STMicroelectronics STPS2170AF Datasheet HTML 4Page - STMicroelectronics STPS2170AF Datasheet HTML 5Page - STMicroelectronics STPS2170AF Datasheet HTML 6Page - STMicroelectronics STPS2170AF Datasheet HTML 7Page - STMicroelectronics STPS2170AF Datasheet HTML 8Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 3 / 8 page
background image
DocID027019 Rev1
3/8
STPS2170
Characteristics

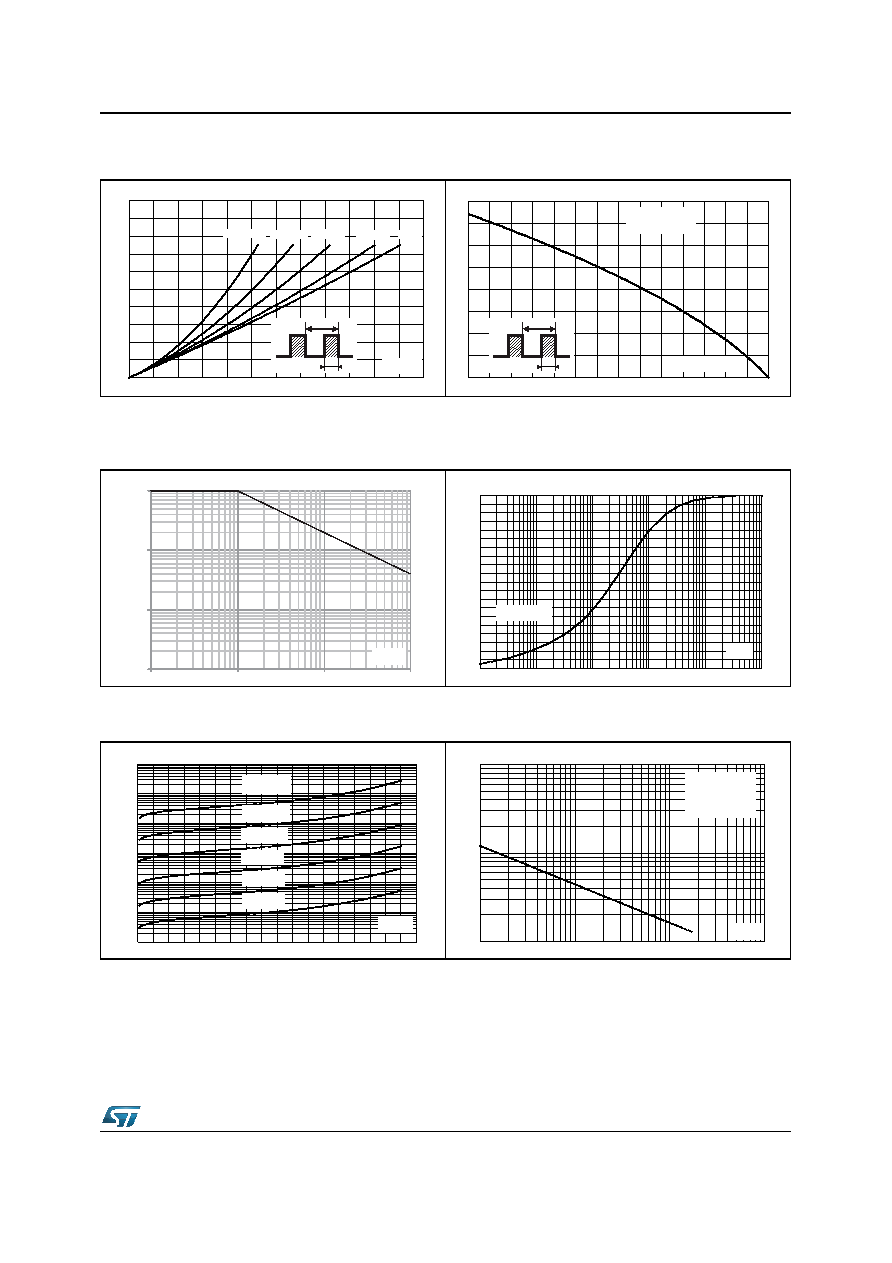

Figure 1. Average forward power dissipation
versus average forward current
Figure 2. Average forward current versus
ambient temperature (
δ = 0.5)
Figure 3. Normalized avalanche power derating
versus pulse duration
(pulse > 10 µs, Tj <150 °C)
Figure 4. Relative variation of thermal
impedance junction to lead versus pulse
duration
Figure 5. Reverse leakage current versus
reverse voltage applied (typical values)
Figure 6. Junction capacitance versus reverse
voltage applied (typical values)
