SM5846AP
NIPPON PRECISION CIRCUITS—19

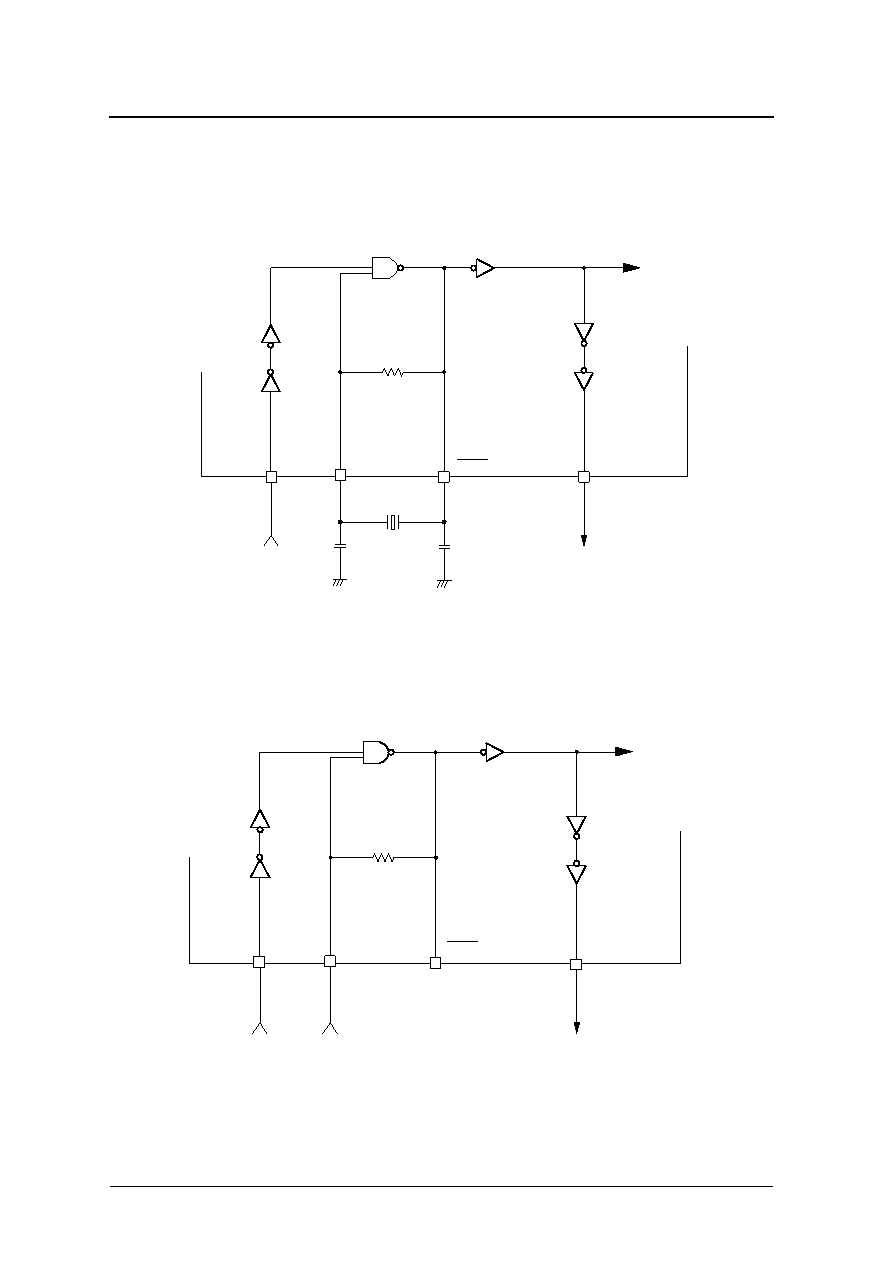

Crystal oscillator circuit
The built-in crystal oscillator circuit comprises a
feedback resistor and several logic gates. The system
clock can be generated using an external quartz crys-
tal and 2 capacitors.
External clock
When an external clock is used, XTO is left open-
circuit and the clock signal is input on XTI.
System
Clock
CKO
System Clock
Output
XTO
XTI
CKEN
Oscilation/Stop
Contorol
Rf
X'tal
C1
C2
System
Clock
CKO
System Clock
Output
XTI
CKEN
Oscilation/ Stop
Contorol
Rf
Open
External Clock
Input
XTO
