ML6461
8

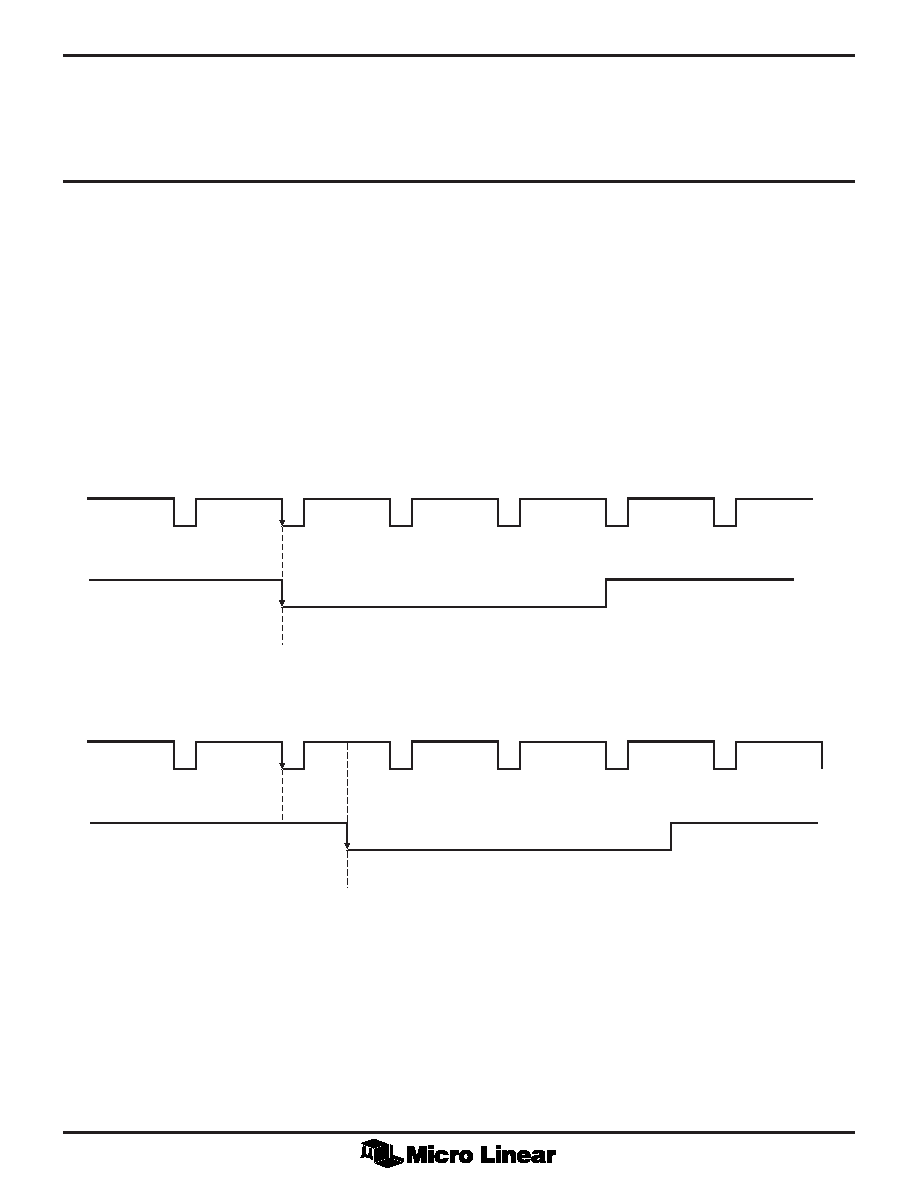

Figure 1. Example of the Beginning of the Odd And Even Fields vs. HSYNC and VSYNC in Master Mode.
(SLAVE/MASTER = 0, SENSE_HSYNC = 0, SENSE_VSYNC
===== 0)
fields (1-2) and (3-4). The ML6461 also supports a frame
based synchronization mode (B17 = FSYNC = 1) where a
vertical reset pulse unconditionally resets the vertical line
FUNCTIONAL DESCRIPTION (Continued)
counter to line 4. For proper operation only one active
edge should be sent per frame. The polarity is controlled
by SENSE_VSYNC (B10).
HSYNC
Line 3
Line 4
Line 5
Line 6
HSYNC
Line 265
Line 266
Line 267
Line 268
VSYNC
VSYNC
Beginning of
an Odd Field
Beginning of
an Even Field
Line 269
Coincident
Active Edges
