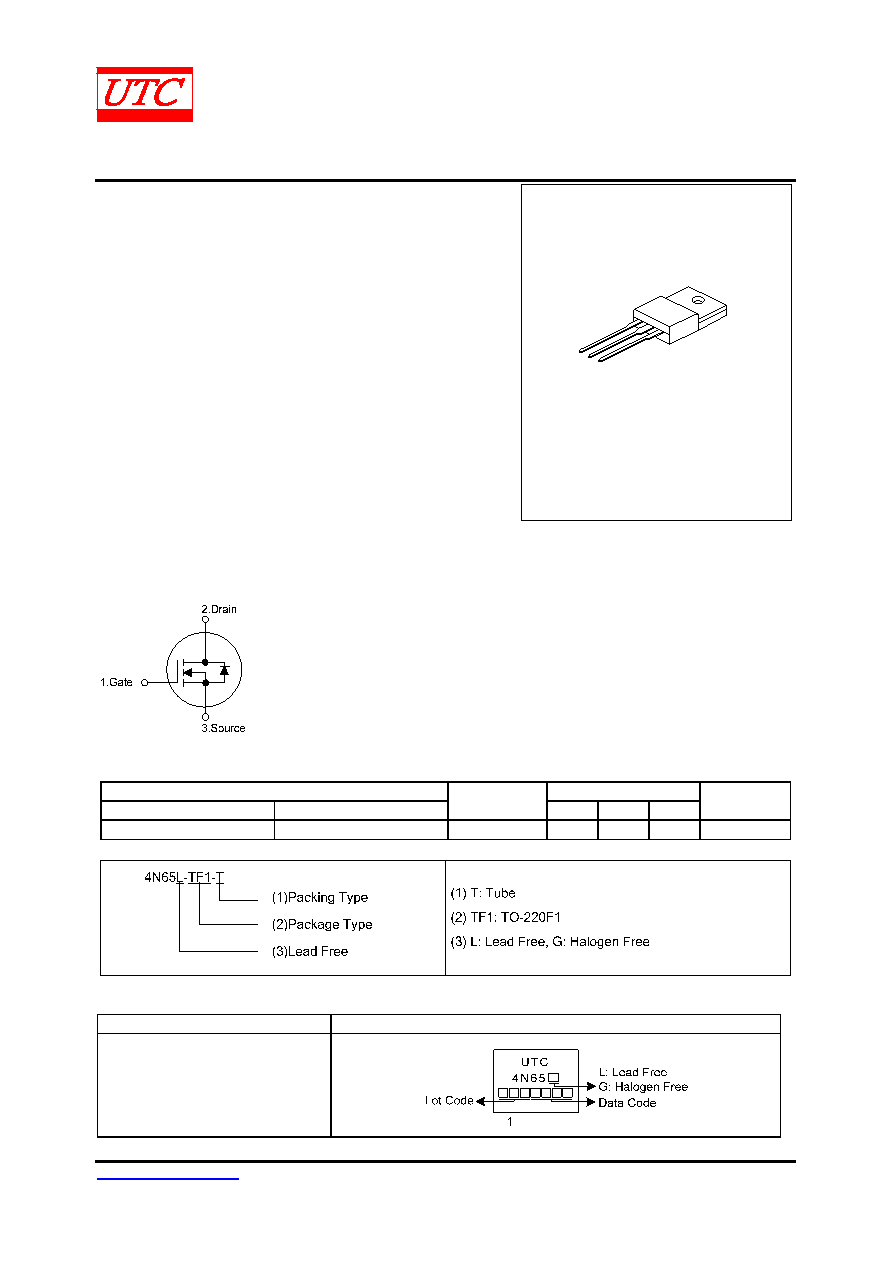

UNISONIC TECHNOLOGIES CO., LTD

4N65-R

Preliminary

Power MOSFET

www.unisonic.com.tw

1 of 6

Copyright © 2014 Unisonic Technologies Co., Ltd

QW-R502-A65.a

4A, 650V N-CHANNEL

POWER MOSFET



DESCRIPTION

The UTC 4N65-R is a high voltage power MOSFET designed

to have better characteristics, such as fast switching time, low gate

charge, low on-state resistance and have a high rugged avalanche

characteristic. This power MOSFET is usually used in high speed

switching applications including power supplies, PWM motor

controls, high efficient DC to DC converters and bridge circuits.



FEATURES

* Fast Switching Capability

* Avalanche Energy Specified

* Improved dv/dt Capability, High Ruggedness



SYMBOL

TO-220F1

1



ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

4N65L-TF1-T

4N65G-TF1-T

TO-220F1

G

D

S

Tube

Note: Pin Assignment: G: Gate D: Drain S: Source



MARKING INFORMATION

PACKAGE

MARKING

TO-220F1
