LP38853
SNVS335D – DECEMBER 2006 – REVISED APRIL 2013
www.ti.com
Typical Performance Characteristics (continued)
Refer to the Typical Application Circuit. Unless otherwise specified: TJ = 25°C, R1 = 1.40 kΩ, R2 = 1.00 kΩ, CFF= 0.01 µF, VIN
= VOUT(NOM) + 1V, VBIAS = 3.0V, IOUT = 10 mA, CIN = 10 µF Ceramic, COUT = 10 µF Ceramic, CBIAS = 1 µF Ceramic, , CSS =
Open.

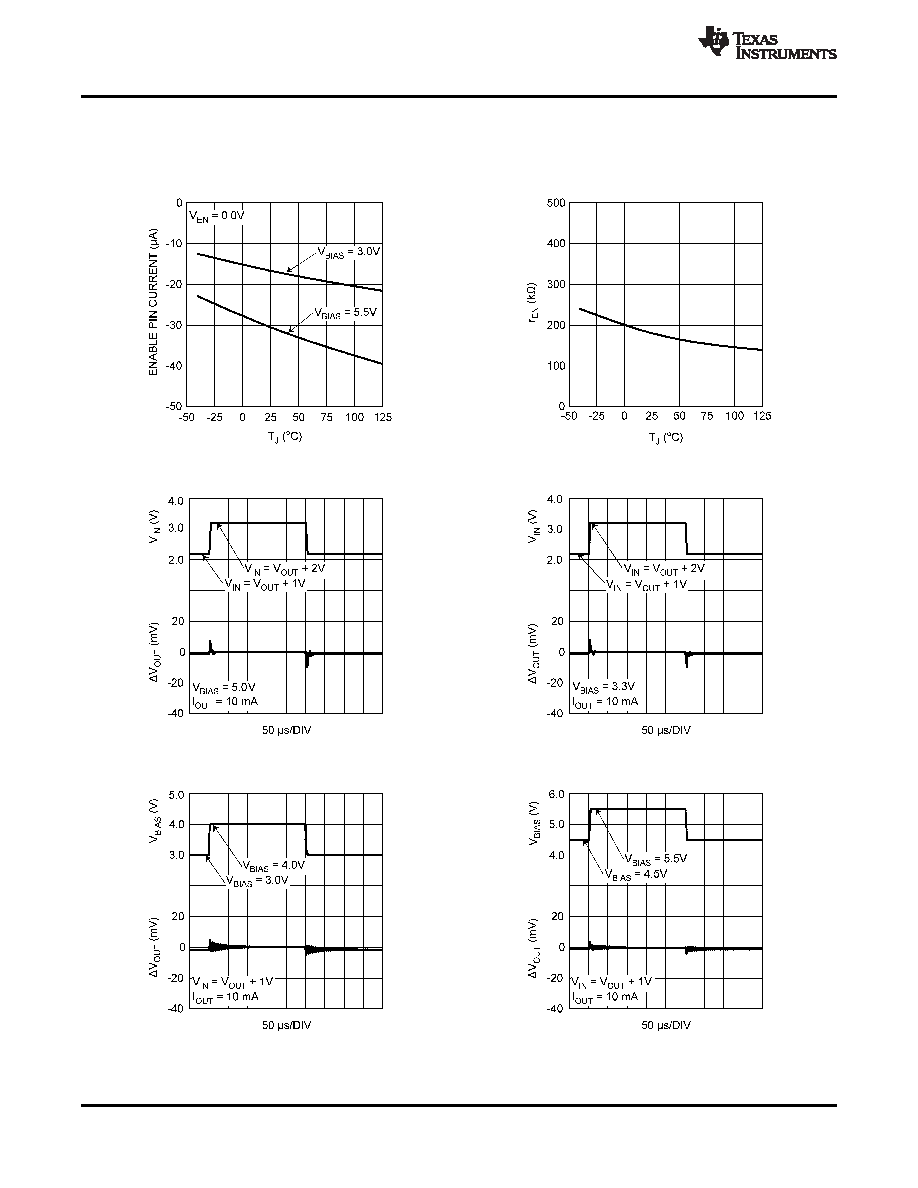

Enable Pull-Down Current (IEN) vs Temperature
Enable Pull-Up Resistor (rEN) vs Temperature
Figure 16.
Figure 17.
VIN Line Transient Response
VIN Line Transient Response
Figure 18.
Figure 19.
VBIAS Line Transient Response
VBIAS Line Transient Response
Figure 20.
Figure 21.
8
Submit Documentation Feedback
Copyright © 2006–2013, Texas Instruments Incorporated
Product Folder Links: LP38853
