TC1037/TC1038/TC1039

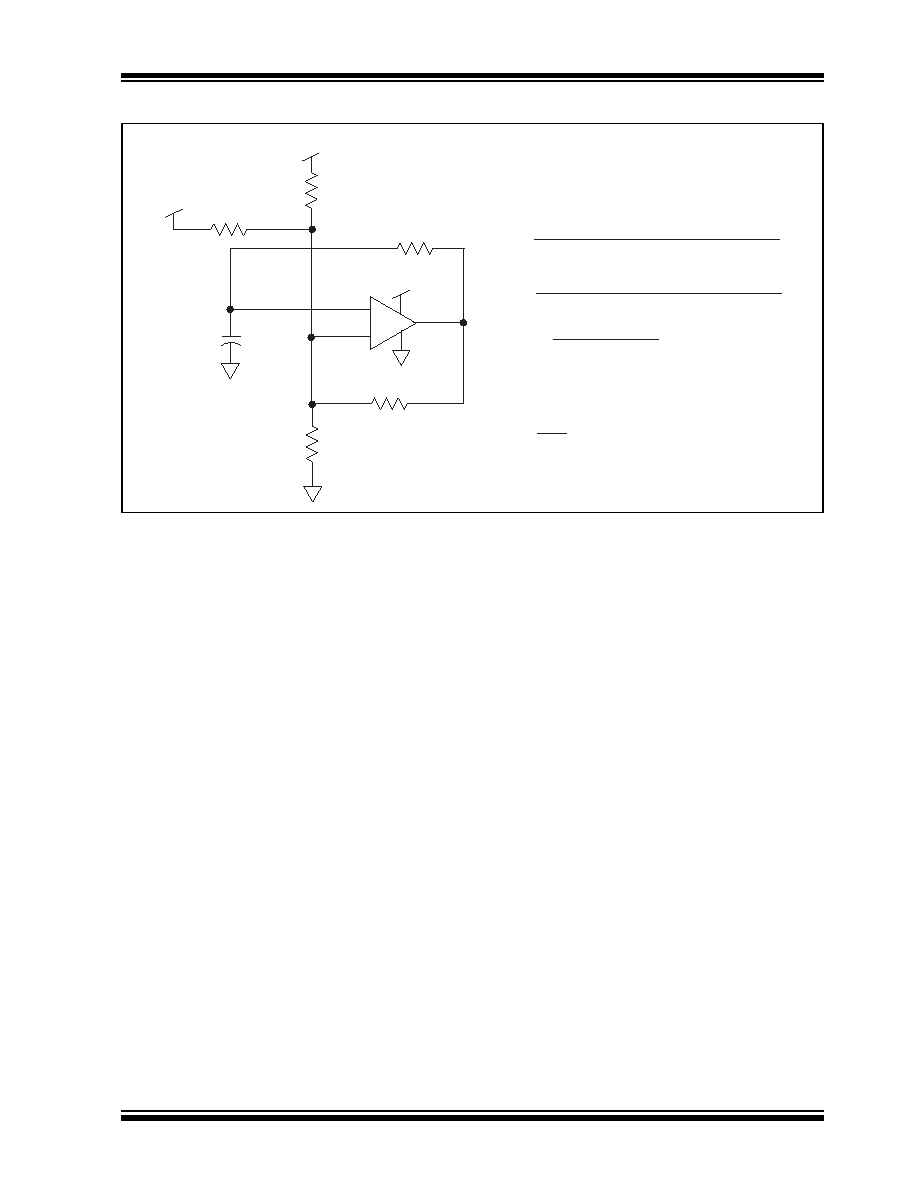

FIGURE 4-6:
PULSE WIDTH MODULATOR
+
–
R6
10k
R4
VC
VDD
VDD
R1
100k
R3
100k
R2
100k
C1
FREQ =
1
2
2 (0.694) (R4) (C1)
For Square Wave Generation
Select R1 = R2 = R3
TC1037
VH =
VC =
VDD
VDD (R1R2R6 + R2R3R6) + VC (R1R2R3)
R1R2R6 + R1R3R6 + R2R3R6 + R1R2R3
VDD (R2R3R6) + VC (R1R2R3)
R1R2R6 + R1R3R6 + R2R3R6 + R1R2R3
VL =
1/4
