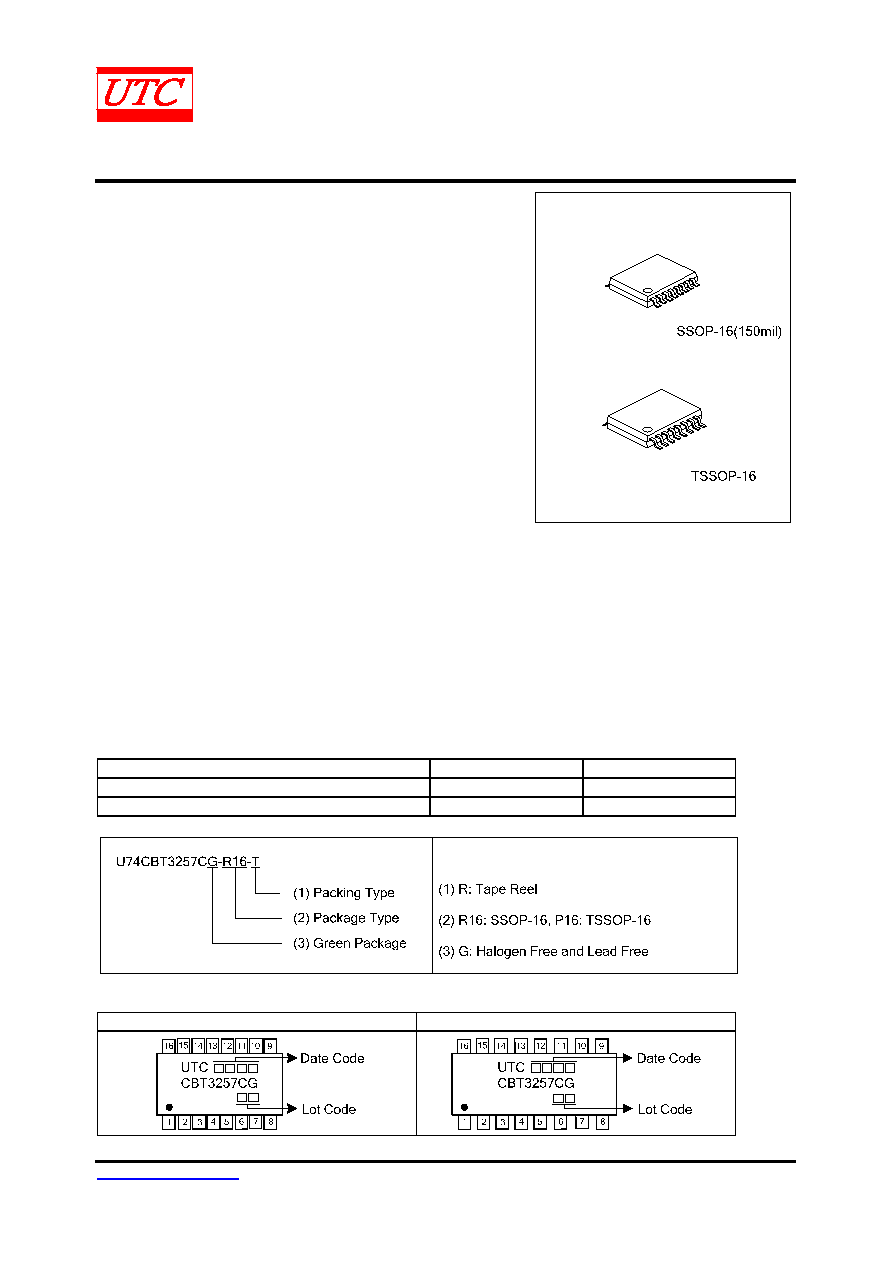

1 / 5 page

UNISONIC TECHNOLOGIES CO., LTD

U74CBT3257C

CMOS IC

www.unisonic.com.tw

1 of 5

QW-R502-359.C

4-BIT 1-OF-2 FET

MULTIPLEXER/

DEMULTIPLEXER



DESCRIPTION

The UTC U74CBT3257C is a 4-BIT 1-OF-2 FET multiplexer/

demultiplexer

with

Low

ON-State

Resistance

(RON)

and

TTL-compatibility.



FEATURES

*Undershoot Protection for Off-Isolation on A and B Ports Up to -2V

*VCC Operating Range From 4V to 5.5V

*Bidirectional Data Flow, With Near-Zero Propagation Delay

*Low ON-State Resistance (RON) Characteristics (RON =3Ω Typ.)

*Low Power Consumption ICC =3μA (Max)

*Data and Control Inputs Provide Undershoot Clamp Diodes

*Data I/Os Support 0 to 5-V Signaling Levels

(0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V)

*Control Inputs Can be Driven by TTL or 5V/3.3V CMOS Outputs

*IOFF Supports Partial-Power-Down Mode Operation

*Supports I2C Bus Expansion



ORDERING INFORMATION

Ordering Number

Package

Packing

U74CBT3257CG-R16-R

SSOP-16

Tape Reel

U74CBT3257CG-P16-R

TSSOP-16

Tape Reel



MARKING

SSOP-16

TSSOP-16
