Product description

• Lead free, RoHS compliant

• 125°C maximum total operating

temperature

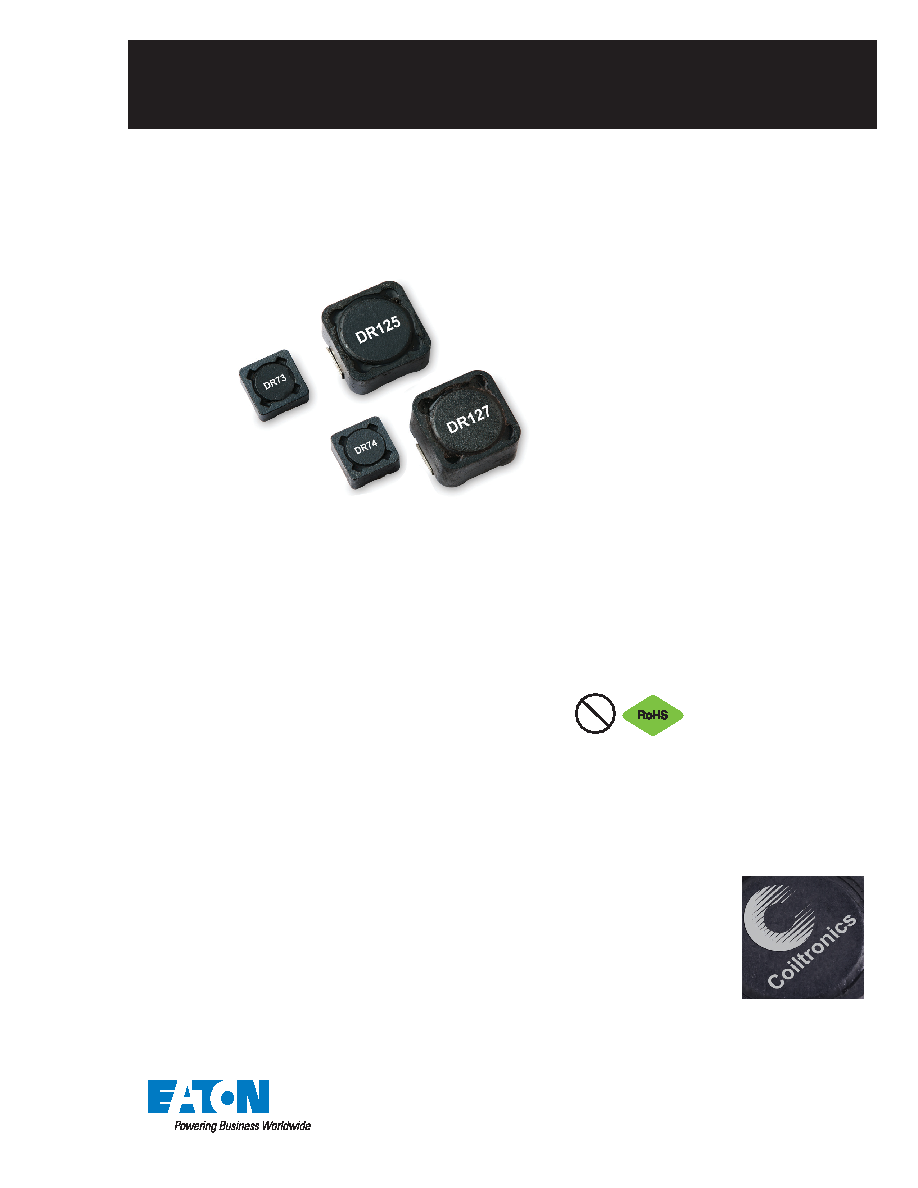

• Four sizes of shielded drum core induc-

tors

• Inductance range from 0.33μH to

1000μH

• Current range up to 56 amps peak

• Magnetic shielding

• Secure mounting

• Ferrite core material

Applications

• Computer, DVD players, and portable power

devices

• LCD panels

• DC-DC converters

• Buck, boost, forward, and resonant converters

• Noise filtering and filter chokes

Environmental data

• Storage temperature range (Component):

-40°C to +125°C

• Operating temperature range: -40°C to +125°C

(ambient + self-temperature rise)

• Solder reflow temperature: J-STD-020D

compliant

Packaging:

• Supplied in tape and reel packaging (per reel):

- DR73 1350

- DR74 1100

- DR125 600

- DR127 350

Coiltronics DR Series

High power density, high efficiency, shielded inductors

Technical Data 4315

Effective April 2014

Supersedes December 2007

Coiltronics is now

part of Eaton

Same great

products plus

even more.

The Coiltronics brand of

magnetics (formerly of

the Bussmann Division of

Cooper Industries)

is now part of

Eaton’s Electrical Group,

Electronics Division.
