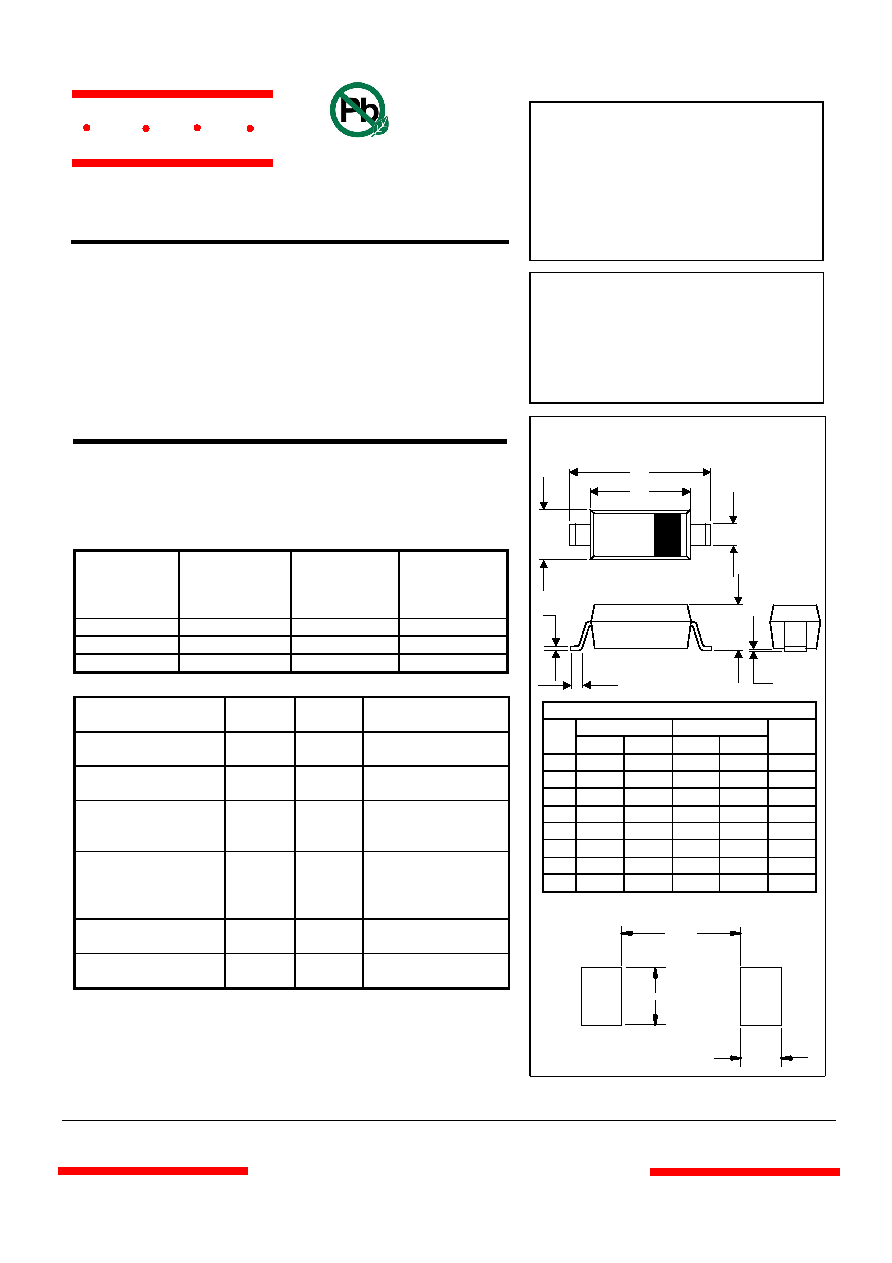

1 / 3 page

SD103AWS

THRU

SD103CWS

400mW Small Signal

Schottky Diode

20 to 40 Volts

Features

•

Guard Ring Construction for Transient Protection

•

Negligible Reverse recovery time

•

Low Reverse Capacitance and Low Forward Voltage Drop

•

Marking : SD103AW

S: S4 ,SD103BWS: S5 , SD103CWS: S6

Maximum Ratings

•

Operating Temperature: -65

to +125

•

Storage Temperature: -65

to +125

•

Maximum Thermal Resistance; 300

/W Junction to Ambient

MCC

Part Number

Maximum

Recurrent

Peak Reverse

Voltage

Maximum

RMS Voltage

Maximum DC

Blocking

Voltage

SD103AWS

40V

28V

40V

SD103BWS

30V

21V

30V

SD103CWS

20V

14V

20V

Electrical Characteristics @ 25

Unless Otherwise Specified

Average Forward

Current

IF(AV)

350mA

Note 1

Peak Forward Surge

Current

IFSM

1.5A

t

1.0s

Maximum Power

Dissipation

PD

200mW

Note 1

Maximum

Instantaneous

Forward Voltage

VF

0.37V

0.60V

IFM = 20mA

IFM = 200mA

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

IR

5.0µA

VR = 30V (AWS)

VR = 20V (BWS)

VR = 10V (CWS)

Typical Junction

Capacitance

Cj

50pF

Measured at

1.0MHz, VR=0V

Typical Reverse

Recovery Time

trr

10ns

IF =IR =200mA

Irr=0.1×IR RL=100

Note: 1.Valid provided that electrodes are kept at ambient

Temperature

omponents

20736 Marilla Street Chatsworth

!"#

$% !"#

MCC

TM

Micro Commercial Components

www.mccsemi.com

1 of 3

•

Lead Free Finish/RoHS Compliant ("P" Suffix

designates RoHS Compliant. See ordering information)

Revision: B

2013/01/01

DIMENSIONS

INCHES

MM

DIM

MIN

MAX

MIN

MAX

NOTE

A

.090

.107

2.30

2.70

B

.063

.071

1.60

1.80

C

.045

.053

1.15

1.35

D

.031

.045

0.80

1.15

E

.010

.016

0.25

0.40

G

.004

.018

0.10

0.45

H

.004

.010

0.10

0.25

J

-----

.006

-----

0.15

A

B

E

C

J

D

H

SOD

-323

0.022”

0.074"

0.027”

SUGGESTED SOLDER

PAD LAYOUT

G

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisture Sensitivity Level 1

•

Halogen free available upon request by adding suffix "-HF"
