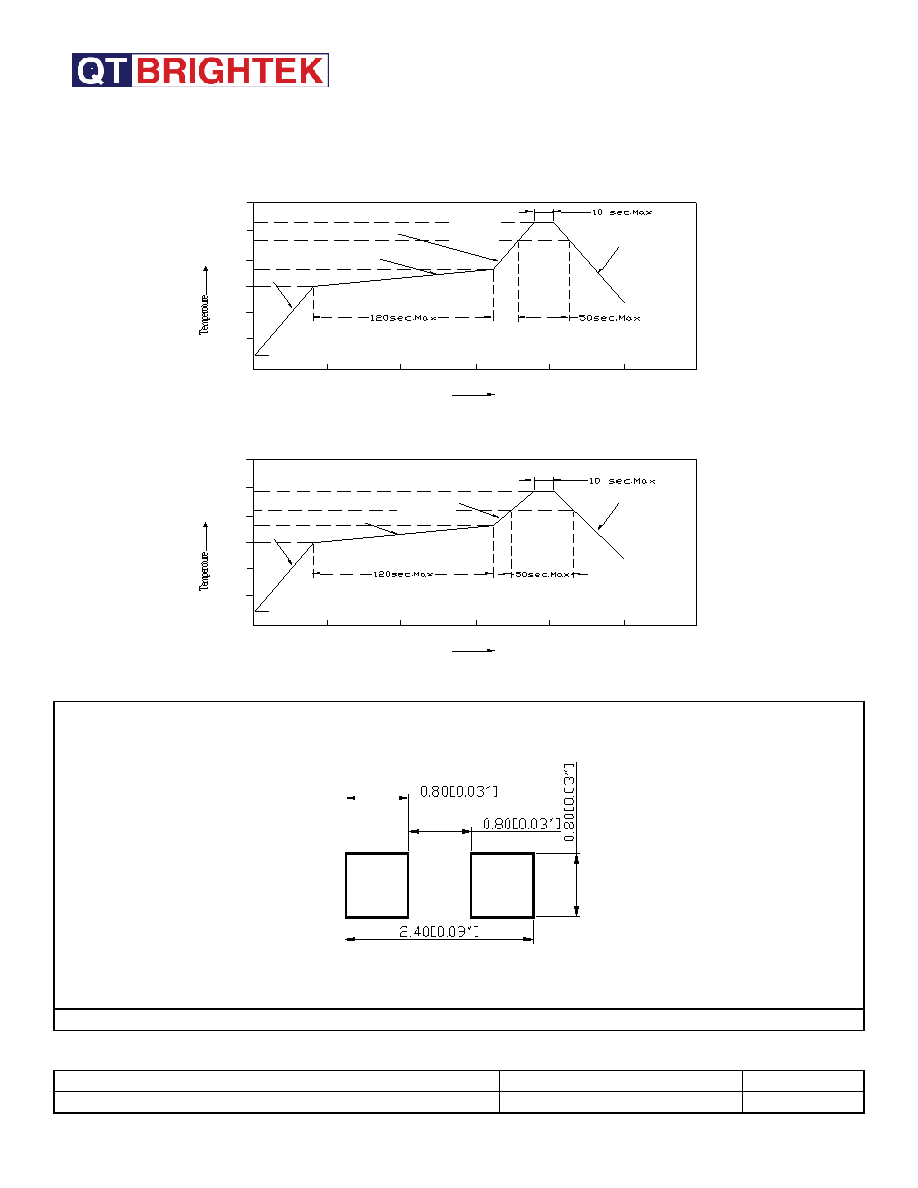

QBLP602 series
0603 LED
Product: QBLP602 series
Date: June 16, 2011
Page 6 of 9
Version# 2.1
Solder Profile & Footprint:
25℃
0
0
50
100
150
200
250
300
(℃)
Time
50
100
150
200
250
300
260℃ max
230℃ max
2~5℃/sec
Pre heating 120~150℃
1~5℃/sec
2~5℃/sec
25℃
0
240℃ max
210℃ max
2~5℃/sec
2~5℃/sec
IR Reflow Soldering Profile
Lead Free Solder
IR Reflow Soldering Profile
Lead Solder
Time
50
100
150
200
250
300
(℃)
0
50
100
150
200
250
300
Pre heating 120~150℃
1~5℃/sec
(sec)
(sec)
( Proposed Solder footprint )
Units: mm
tolerance: +/- 0.1mm
