Description

M24C08-W M24C08-R M24C08-F

6/38

DocID023924 Rev 4

Description

The M24C08 is an 8-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable

Memory) organized as 1 K × 8 bits.

The M24C08-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C08-R

can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C08-F can be

accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range)

or with an extended supply voltage from 1.6 V to 1.7 V. All these devices operate with a

clock frequency of 400 kHz.

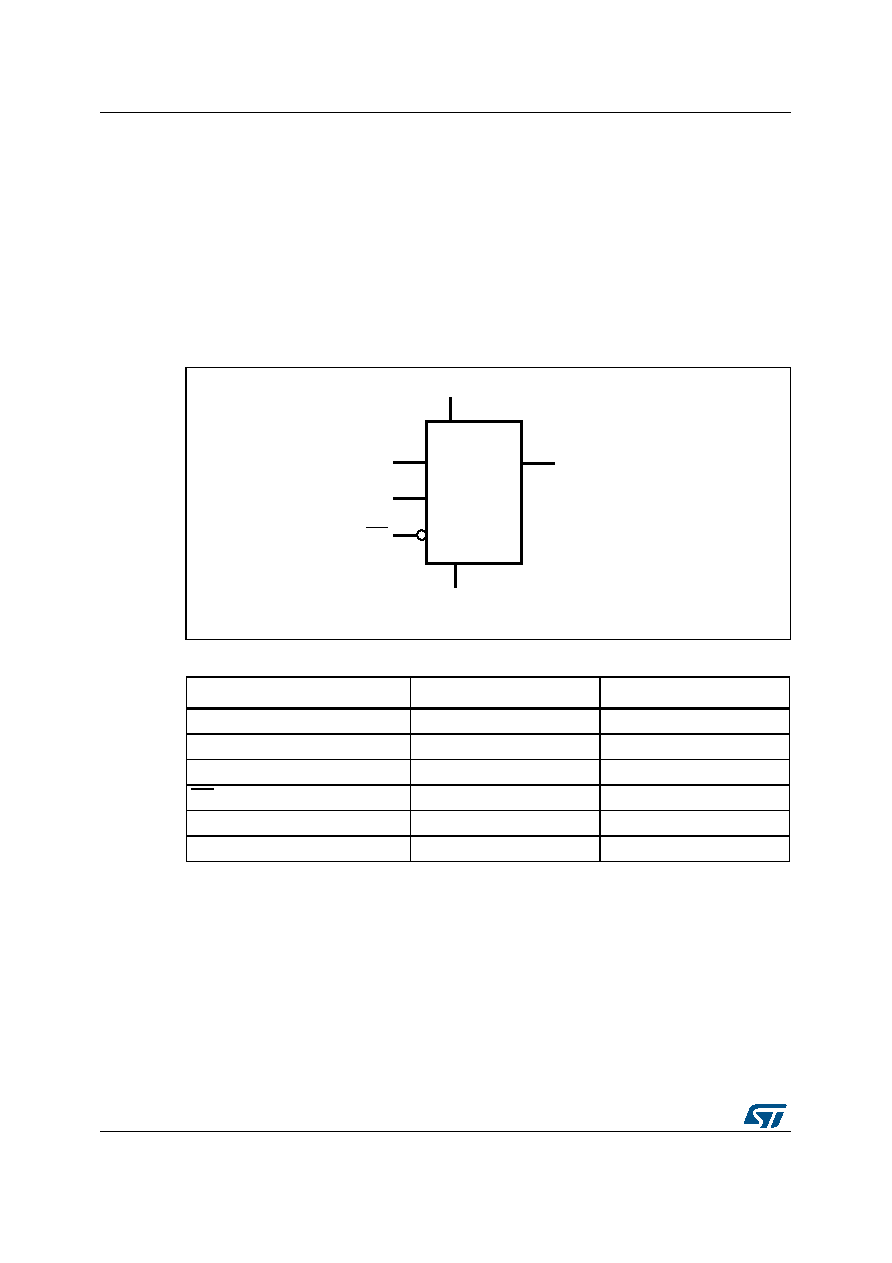

Figure 1. Logic diagram

Table 1. Signal names

Signal name

Function

Direction

E2(1)

1. Signal not connected in the WLCSP package.

Chip Enable

Input

SDA

Serial Data

I/O

SCL

Serial Clock

Input

WC(1)

Write Control

Input

VCC

Supply voltage

VSS

Ground
