SD103CWS Fiches technique(PDF) 2 Page - General Semiconductor

No de pièce SD103CWS
Description  SCHOTTKY DIODES
PDF  3 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  GE [General Semiconductor]
Site Internet  http://www.vishay.com
Logo GE - General Semiconductor

SD103CWS Fiches technique(HTML) 2 Page - General Semiconductor

  SD103CWS Datasheet HTML 1Page - General Semiconductor SD103CWS Datasheet HTML 2Page - General Semiconductor SD103CWS Datasheet HTML 3Page - General Semiconductor
Zoom Inzoom in Zoom Outzoom out
 2 / 3 page
background image

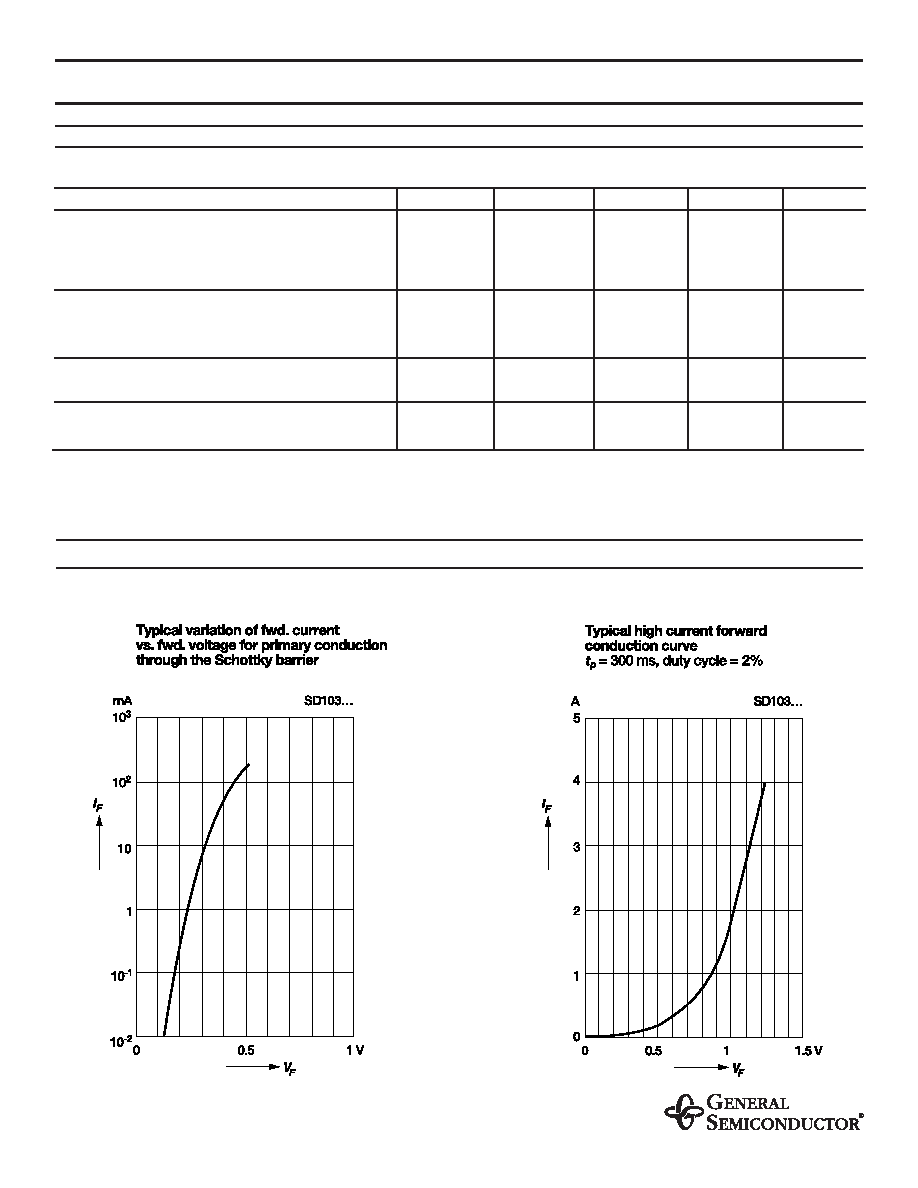

ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified
SYMBOL
MIN.
TYP.
MAX.
UNIT
Leakage Current
at VR = 30 V
SD103AWS
IR
––
5
µA
at VR = 20 V
SD103BWS
IR
––
5
µA
at VR = 10 V
SD103CWS
IR
––
5
µA
Forward Voltage Drop
at IF = 20 mA
VF
–
–
0.37
V
at IF = 200 mA
VF
–
–
0.6
V
Junction Capacitance
at VR = 0 V, f = 1 MHz
Ctot
–50
–
pF
Reverse Recovery Time
at IF = IR = 50 mA to 200 mA, recover to 0.1 IR
trr
–10
–
ns
SD103AWS THRU SD103CWS
