1+1 Net-Ready Platform

Product Lines:  Mux/Demux  Switching/Routing  Coupling/Splitting  Monitoring/Conditioning  Amplification  Transmission  Interconnect  RGB Laser Modules

1+1 NET-Ready Optical Protection Switch

S**** - R02. 2011.07.01

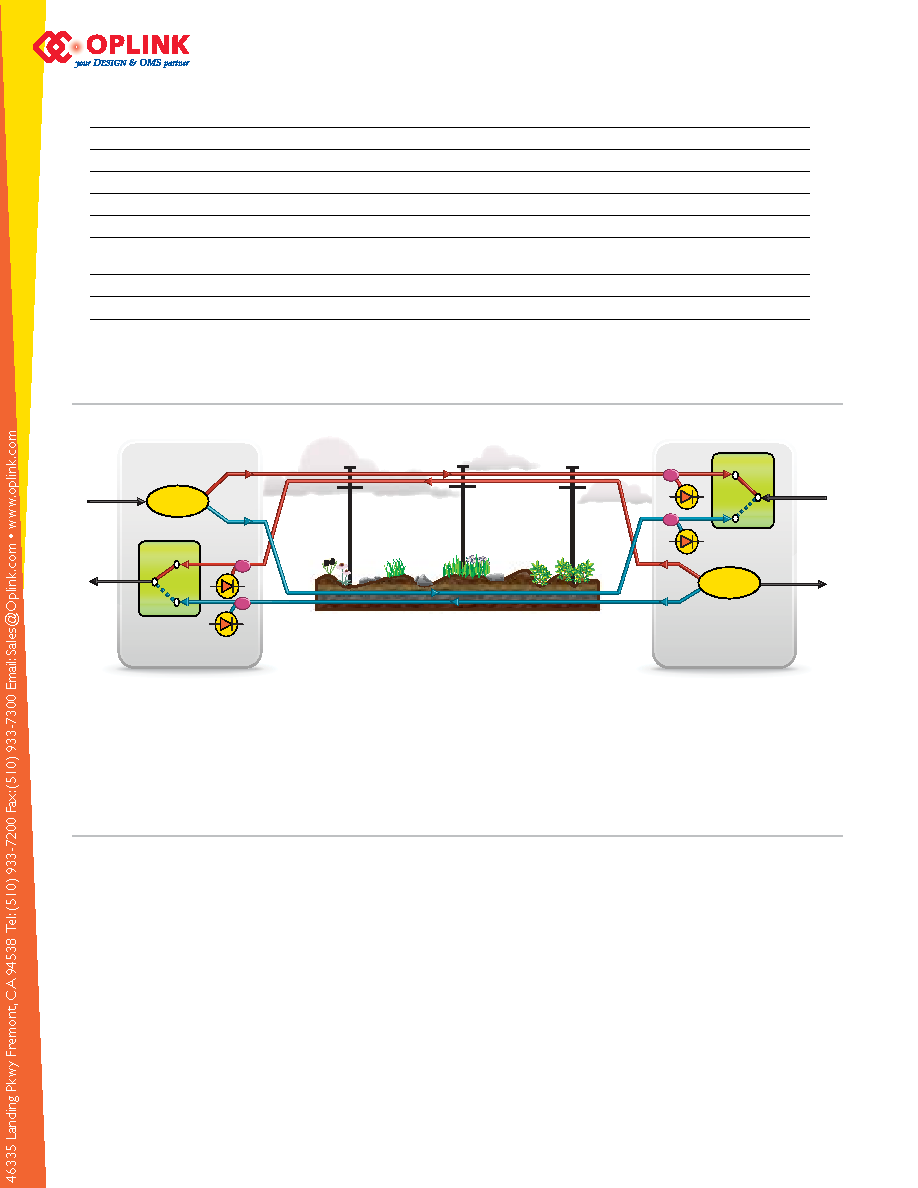

Application Example

Ordering Information

Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM

design team or account manager for your requirements and ordering information (510) 933-7200.

SNMP v1, v2c management interface, compliant to standard MIB browser

TL1, compliant with GR-831-CORE

Task-oriented Web GUI

Command-line interface (CLI) based management console

FTP, Telnet/RLOGIN

GR-1221-CORE, GR-1073-CORE, UL, FCC

Designed to meet NEBS, ETSI



(1+1) point-to-point dedicated protection or ring O-UPSR protection



50/50% splitter is used as the bridge to split signal to primary and secondary path



1x2 optical latching switch is used as the selector to choose the optical path



Photodiodes monitor the signals from both path

Protection Switch Card

Protection Line (Secondary)

Working Line (Primary)

Protection Line (Secondary)

1x2 Switch

50/50

Management

Physical
