ADP1660
Data Sheet
Rev. 0 | Page 26 of 28
OUTLINE DIMENSIONS
A
B
C
D
0.660
0.600
0.540
1.695
1.655
1.615
2.060
2.020
1.980
1
2
3
BOTTOM VIEW
(BALL SIDE UP)
TOP VIEW
(BALL SIDE DOWN)
END VIEW
0.360
0.320
0.280
1.50
REF
1.00
REF
0.50
REF
BALL A1
IDENTIFIER
SEATING
PLANE
0.270
0.240
0.210
COPLANARITY
0.05

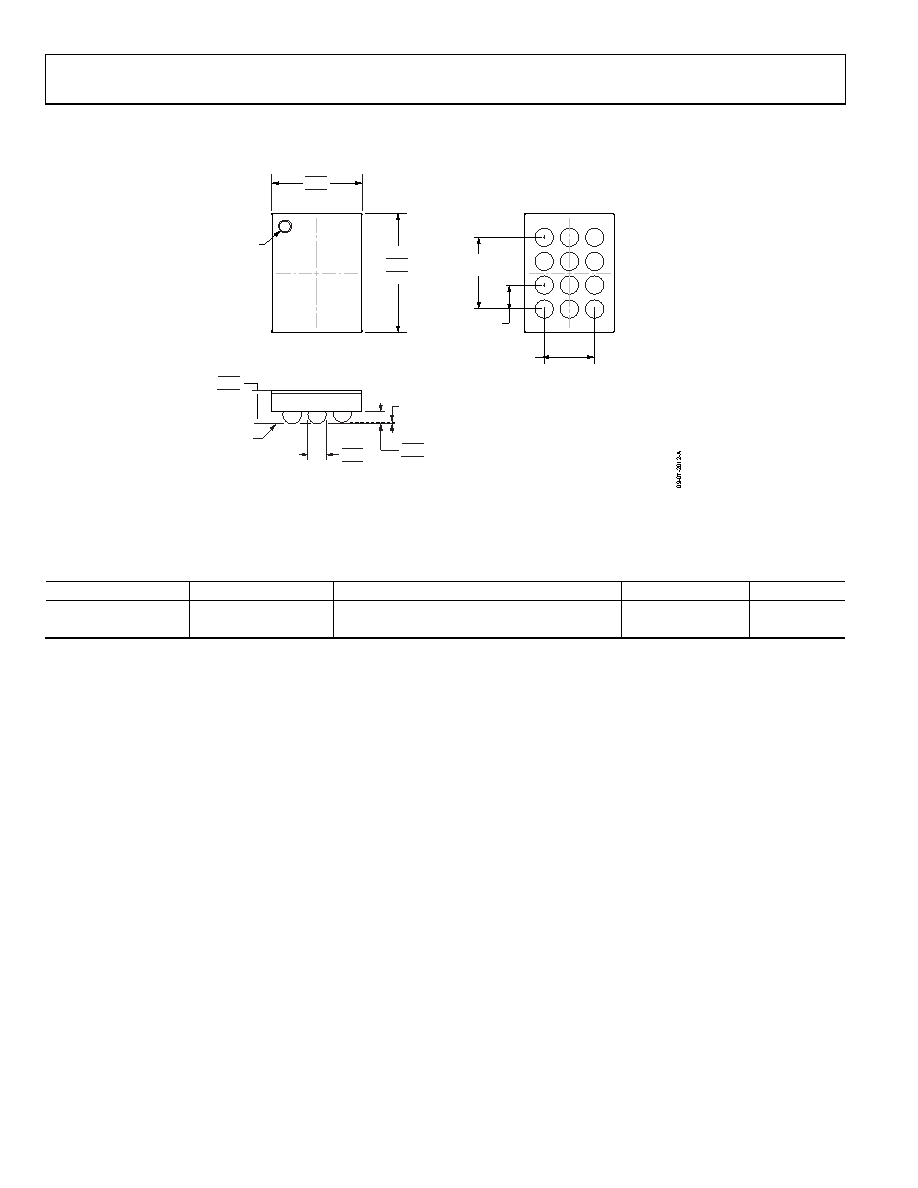

Figure 33. 12-Ball Wafer Level Chip Scale Package [WLCSP]
(CB-12-7)
Dimensions shown in millimeters
ORDERING GUIDE
Model1
Temperature Range
Package Description
Package Option2
Branding
ADP1660ACBZ-R7
−40°C to +125°C
12-Ball Wafer Level Chip Scale Package [WLCSP]
CB-12-7
LM7
ADP1660CB-EVALZ
Evaluation Board
1
Z = RoHS Compliant Part.
2
This package option is halide free.
