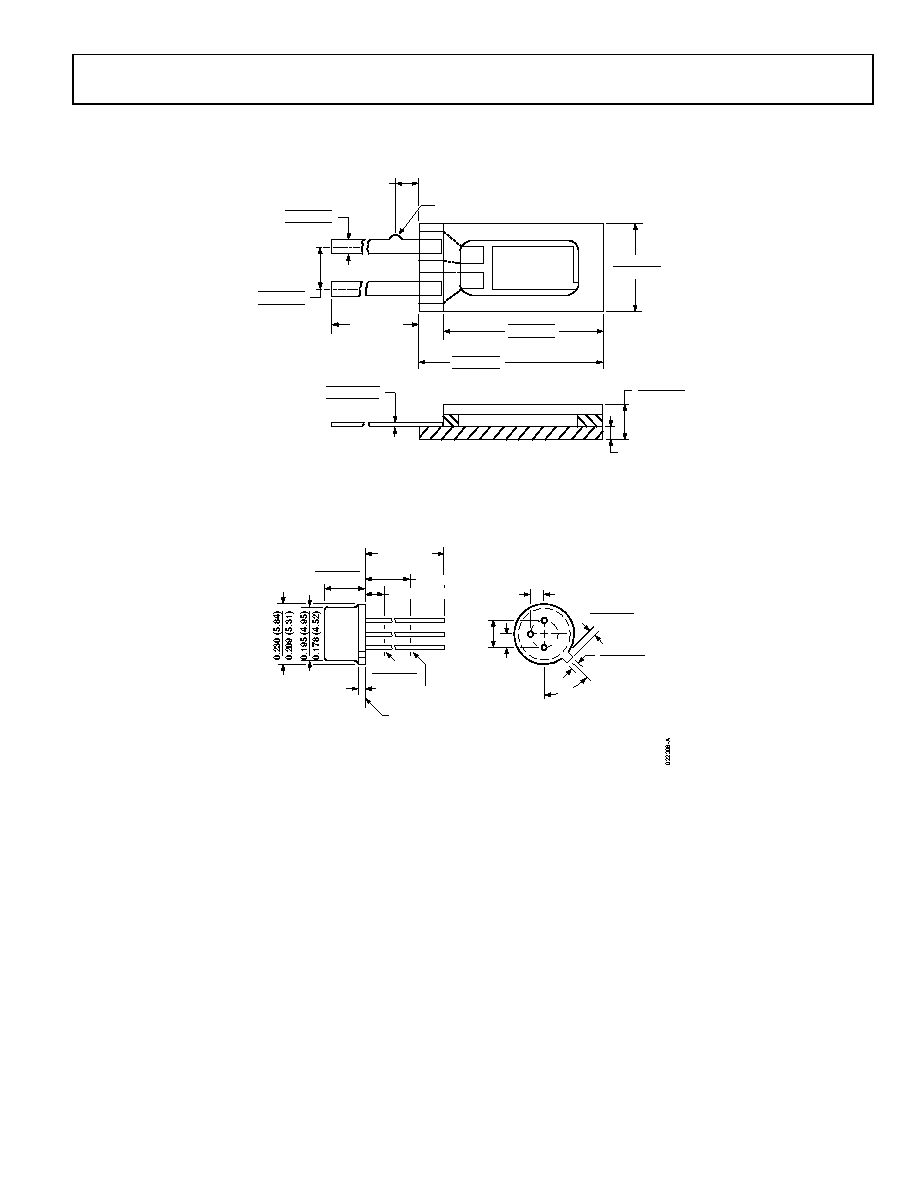

OUTLINE DIMENSIONS

Figure 25. 2-Lead Ceramic Flat Package [FLATPACK]

(F-2)

Dimensions shown in inches and (millimeters)

Figure 26. 3-Pin Metal Header Package [TO-52]

(H-03-1)

Dimensions shown in inches and (millimeters)

0.210 (5.34)

0.200 (5.08)

0.190 (4.83)

0.0065 (0.17)

0.0050 (0.13)

0.0045 (0.12)

0.050 (1.27)

0.041 (1.04)

0.240 (6.10)

0.230 (5.84)

0.220 (5.59)

POSITIVE LEAD

INDICATOR

0.500 (12.69)

MIN

0.093 (2.36)

0.081 (2.06)

0.055 (1.40)

0.050 (1.27)

0.045 (1.14)

0.019 (0.48)

0.017 (0.43)

0.015 (0.38)

TYP

0.030 (0.76)

TYP

CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS

(IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR

REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

0.250 (6.35) MIN

0.150 (3.81)

0.115 (2.92)

0.050 (1.27) MAX

0.019 (0.48)

0.016 (0.41)

0.021 (0.53) MAX

0.030 (0.76) MAX

0.500 (12.70)

MIN

0.046 (1.17)

0.036 (0.91)

0.048 (1.22)

0.028 (0.71)

0.050 (1.27) T.P.

0.100

(2.54)

T.P.

0.050

(1.27)

T.P.

45° T.P.

BASE & SEATING PLANE
