7101K12CWCQE Fiches technique(PDF) 12 Page - C&K Components

No de pièce 7101K12CWCQE
Description  7000 Series Miniature Toggle Switches
PDF  14 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricant  CK-COMPONENTS [C&K Components]
Site Internet  http://www.ck-components.com
Logo CK-COMPONENTS - C&K Components

7101K12CWCQE Fiches technique(HTML) 12 Page - C&K Components

Back Button 7101K12CWCQE Datasheet HTML 6Page - C&K Components 7101K12CWCQE Datasheet HTML 7Page - C&K Components 7101K12CWCQE Datasheet HTML 8Page - C&K Components 7101K12CWCQE Datasheet HTML 9Page - C&K Components 7101K12CWCQE Datasheet HTML 10Page - C&K Components 7101K12CWCQE Datasheet HTML 11Page - C&K Components 7101K12CWCQE Datasheet HTML 12Page - C&K Components 7101K12CWCQE Datasheet HTML 13Page - C&K Components 7101K12CWCQE Datasheet HTML 14Page - C&K Components
Zoom Inzoom in Zoom Outzoom out
 12 / 14 page
background image
F–14
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
F

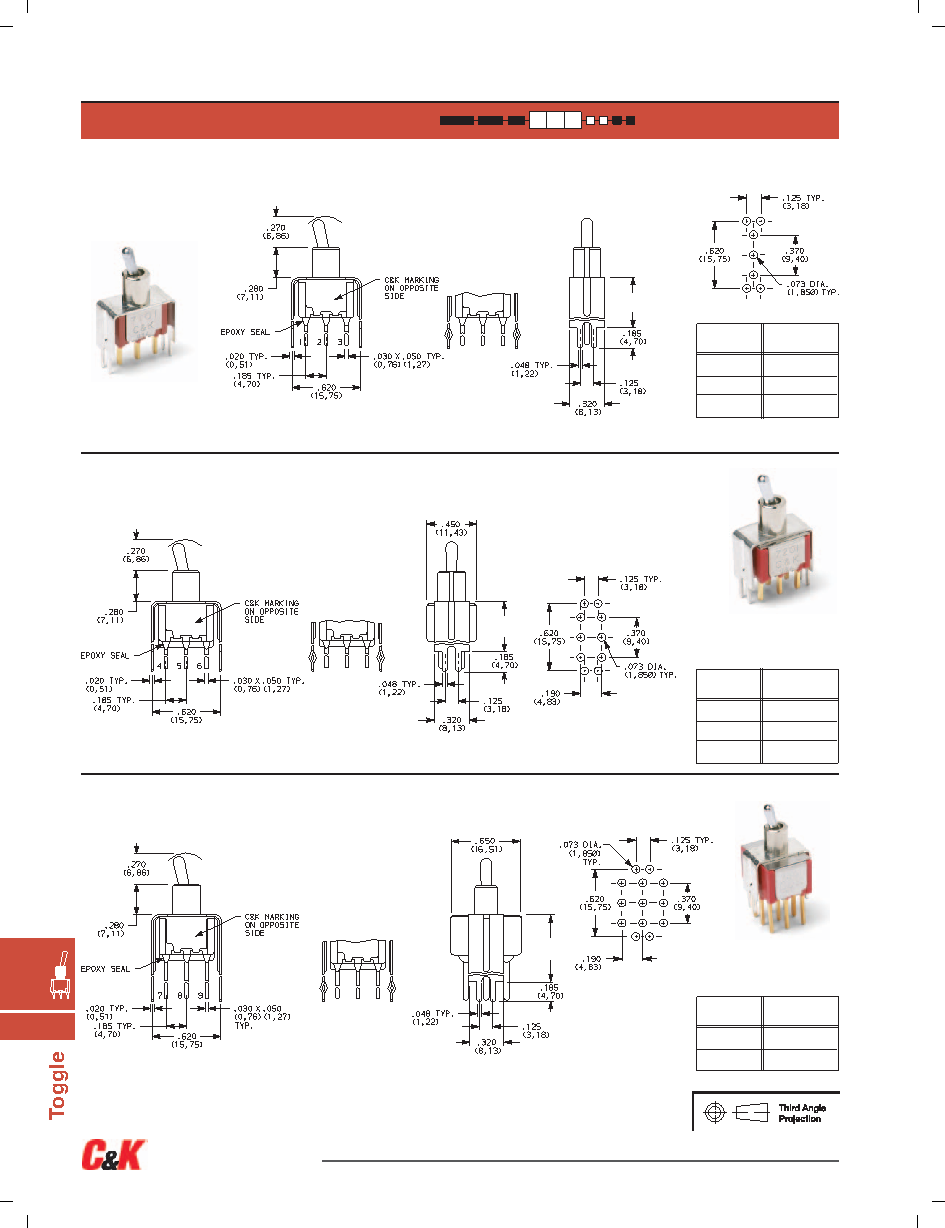

Dim ‘A’
Actuator Shown In Pos. 1
Snap-In
PC MOUNTING
Dim ‘A’
Actuator Shown In Pos. 1
Snap-In
PC MOUNTING
V3, V4, V9
VERTICAL MOUNT, V-BRACKET
V4, V9
VERTICAL MOUNT, V-BRACKET
V41
VERTICAL MOUNT, V-BRACKET, SNAP-IN
V31, V41
VERTICAL MOUNT, V-BRACKET, SNAP-IN
7201MD9__BE
DPDT
7301MD9__BE
3PDT
Not available with I seal option.
Not available with I seal option.
V3, V31
.460 (11,68)
V4, V41
.630 (16,00)
V9
1.150 (29,21)
DIM ‘A’
OPTION
CODE
V4, V41
.630 (16,00)
V9
1.150 (29,21)
DIM ‘A’
OPTION
CODE
7000 Series
Miniature Toggle Switches
TERMINATIONS
Dim ‘A’
Actuator Shown In Pos. 1
Snap-In
PC MOUNTING
V3, V4, V9
VERTICAL MOUNT, V-BRACKET
V31, V41
VERTICAL MOUNT, V-BRACKET, SNAP-IN
7101MD9__BE
SPDT
Not available with I seal option.
V3, V31
.460 (11,68)
V4, V41
.630 (16,00)
V9
1.150 (29,21)
DIM ‘A’
OPTION
CODE
