ABC-12-R Fiches technique(PDF) 1 Page - Cooper Bussmann, Inc. |
|
|
|||||||||||||||||||||||||||||
ABC-12-R Fiches technique(HTML) 1 Page - Cooper Bussmann, Inc. |
|
|

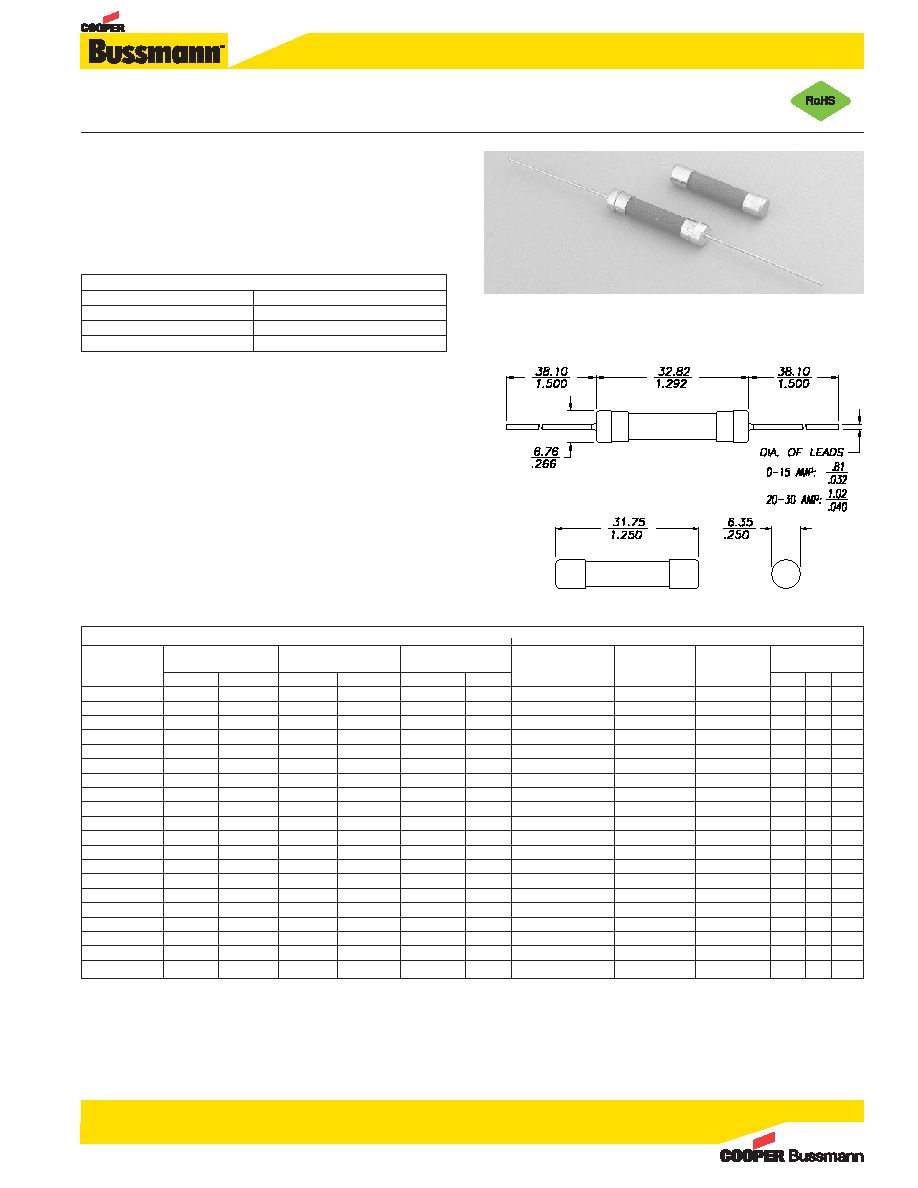

1 / 2 page  1 ⁄4” x 1 1⁄4” Glass Tube Fuses ABC Series, Fast-Acting, Ceramic Tube 0613 BU-SB13635 Page 1 of 2 Data Sheet 2000 Description • Fast-acting, ceramic tube • Optional axial leads available • 1⁄4” x 1 1⁄4” (6.4 x 31.7mm) physical size • Ceramic tube, nickel-plated brass endcap construction • UL Listed product meets standard 248-14 Agency Information • UL Listed Guide JDYX & File E19180 • UL Recognition Guide JDYX2 & File E19180 • CSA Certification: Class No: 1422-01 & 1422-30, File 53787 Environmental Data • Shock: 1⁄4A - 30A – MIL-STD-202, Method 213, Test Condition J • Vibration: 1⁄4A - 30A – MIL-STD-202, Method 204, Test Condition C (Except 5g, 500Hz) Ordering • Specify packaging, product and option code ELECTRICALCHARACTERISTICS %ofAmpRating OpeningTime 100% 4HoursMinimum 135% 60Minutesmaximum 200% 120SecondsMaximum Specifications Voltage Vac Interrupting Vdc Interrupting Typical Typical Typical Part Ratings Ratings* (amps) Ratings (amps) DC Cold Pre-Arc Voltage Agency Approvals Number Vac Vdc 250 125 125 75 Resistance ( Ω)** I 2t AC† Drop (V) ‡ UL UR CSA ABC-1⁄4-R 250 125 35 10,000 10,000 – 2.950 0.0020 0.35 X X ABC- 1⁄2-R 250 125 35 10,000 10,000 – 0.587 0.0390 0.41 X X ABC-3⁄4-R 250 125 35 10,000 10,000 – 0.300 0.1450 0.32 X X ABC-1-R 250 125 35 10,000 10,000 – 0.1950 0.4310 0.3 X X ABC-1-1⁄2-R 250 125 100 10,000 10,000 – 0.131 1.1630 0.28 X X ABC-2-R 250 125 100 10,000 10,000 – 0.0890 2.1670 0.31 X X ABC-2- 1⁄2-R 250 125 100 10,000 10,000 – 0.061 4.4670 0.23 X X ABC-3-R 250 125 100 10,000 10,000 – 0.047 6.55 0.14 X X ABC-4-R 250 125 200 10,000 10,000 – 0.031 22.28 0.17 X X ABC-5-R 250 125 200 10,000 10,000 – 0.026 32.83 0.22 X X ABC-6-R 250 125 200 10,000 10,000 – 0.021 58 0.19 X X ABC-7-R 250 125 200 10,000 10,000 – 0.016 109.33 0.17 X X ABC-8-R 250 125 200 10,000 10,000 – 0.014 116.5 0.19 X X ABC-10-R 250 125 200 10,000 10,000 – 0.011 208.8 0.15 X X ABC-12-R 250 125 750 10,000 10,000 – 0.0068 133.3 0.1 X X ABC-15-R 250 125 750 10,000 10,000 – 0.00553 200.2 0.1 X X ABC-18-R 250 – 400 1000 – – 0.00465 400 0.1 X X ABC-20-R 250 125 400 1000 10,000 – 0.00366 550.8 0.1 X X ABC-25-R 250 125 200 1000 400 1000 0.0028 839.3 0.09 X X‡‡ ABC-30-R 250 125 200 1000 400 1000 0.002225 1429 0.09 X X ‡‡ * Interruptingratingsmeasuredat70%-80%powerfactoronAC.Theinterruptingratingsfor18Aand20Aweremeasuredat85%-95%powerfactoronAC.The interruptingratingsfor25Aand30Aweremeasuredat89%powerfactoronAC. ** TypicalDCcoldresistancemeasuredat<10%ofratedcurrent. † TypicalmeltingI2tmeasuredatlistedinterruptingratingandratedvoltage. ‡ Typicalvoltagedropmeasuredat25°C±3°Cambienttemperatureatratedcurrent. ‡‡ CSAapprovalsfor25Aand30Aareat125Vac-IR1000Aand125Vdc-IR400A(IR1000Aat75Vdc) Dimensions - mm DrawingNottoScale |
