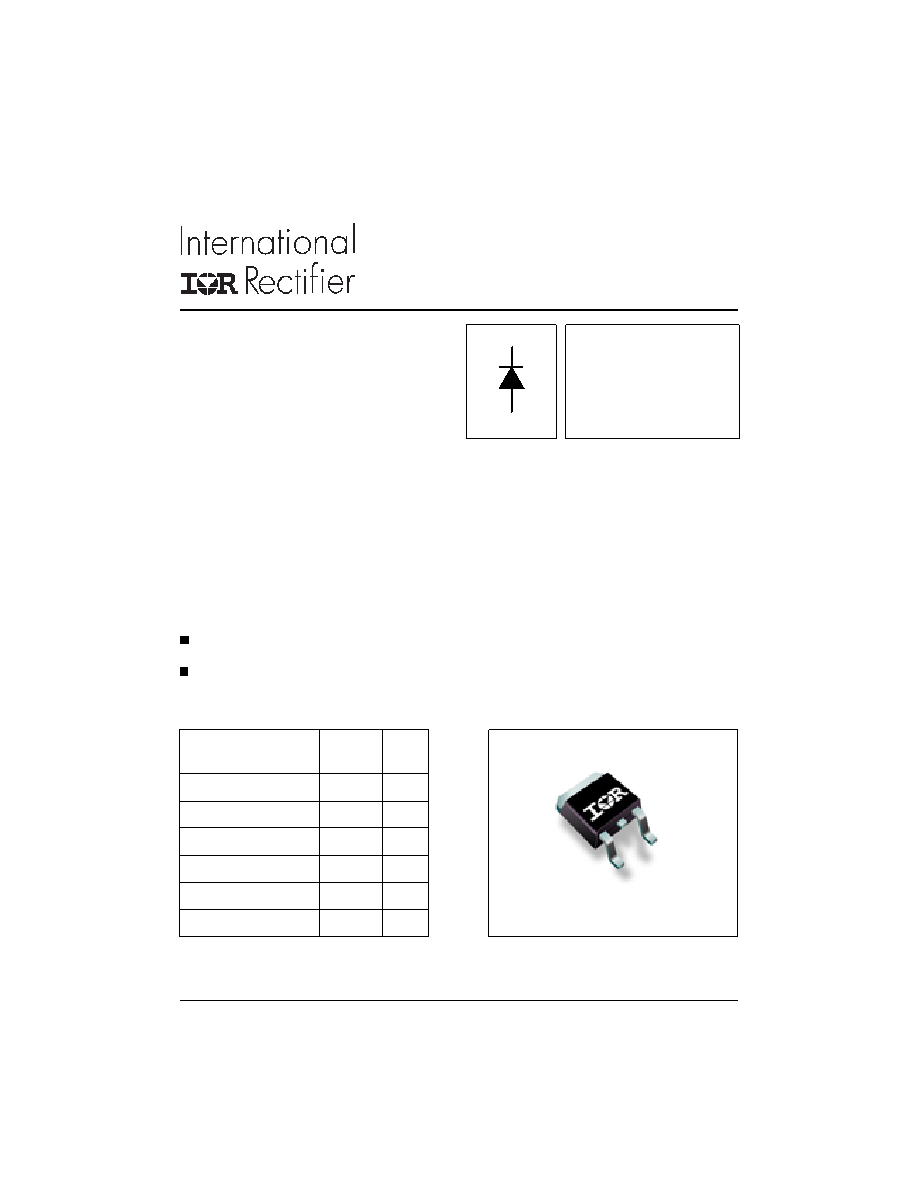

SURFACE MOUNTABLE

FAST SOFT RECOVERY

DIODE

V

F

< 1.2V @ 8A

t

rr

= 55ns

V

RRM 200 to 600V

QUIETIR Series

8EWF..S

I2124 rev. B 10/99

TO-252AA (D-Pak)

The 8EWF..S fast soft recovery

QUIETIR rectifier

series has been optimized for combined short

reverse recovery time, low forward voltage drop

and low leakage current

The glass passivation ensures stable reliable

operation in the most severe temperature and

power cycling conditions.

Typical applications are both:

Output rectification and freewheeling diode

in inverters, choppers and converters.

Input rectifications where severe

restrictions on conducted EMI should be met.

Description/Features

Package Outline

I

F(AV)

Sinusoidalwaveform

8

A

V

RRM

200to 600

V

I

FSM

170

A

V

F

@8 A, T

J

= 25°C

1.2

V

t

rr

@ 1A, 100A/µs

55

ns

T

J

-40to150

°C

Major Ratings and Characteristics

Characteristics

8EWF..S

Units

Document Number: 93160

www.vishay.com

1
