MMA-283136-R5
28-31GHz 4W MMIC Power Amplifier
Data Sheet
October, 2012
MicroWave Technology, Inc. an IXYS Company, 4268 Solar Way, Fremont, CA 94538
510-651-6700
FAX
510-651-2208 WEB www.mwtinc.com
MMA283136 Rev 1.4 data sheet is subject to change without notice. All rights reserved © 2012
Please visit MwT website www.mwtinc.com for information on other MwT MMIC products.
Page 9 of 13

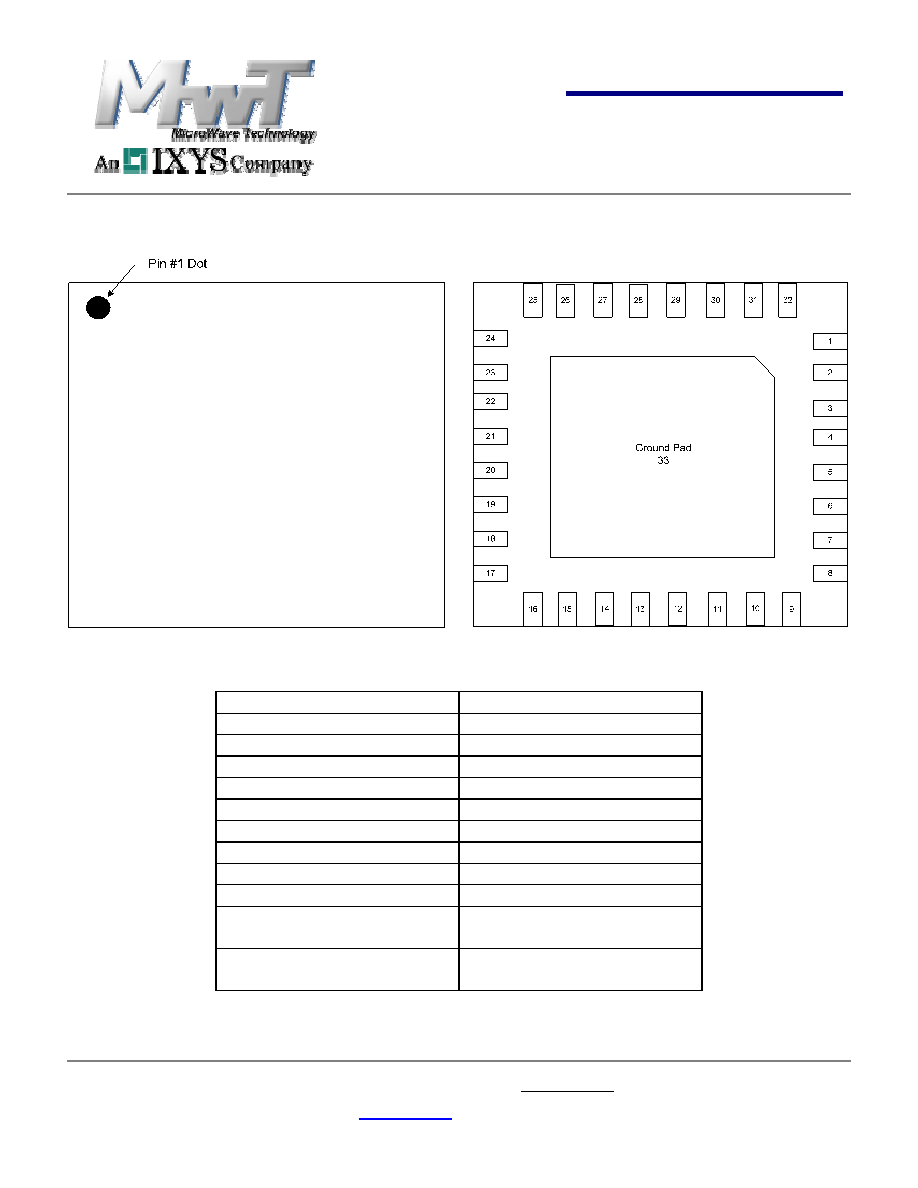

Package Pin-out:
Pin
Description
4
RF Input
21
RF Output
10
Vg
31
Vd1
29
Vd2
28
Vd3
15, 26
Vd4
18
DET_Reference
23
DET_Output
1, 3, 5, 8 ,9, 16, 17, 20, 22,
24, 25, 32, 33
Ground
2, 6, 7, 11, 12, 13, 14, 19,
27, 30
N/C
