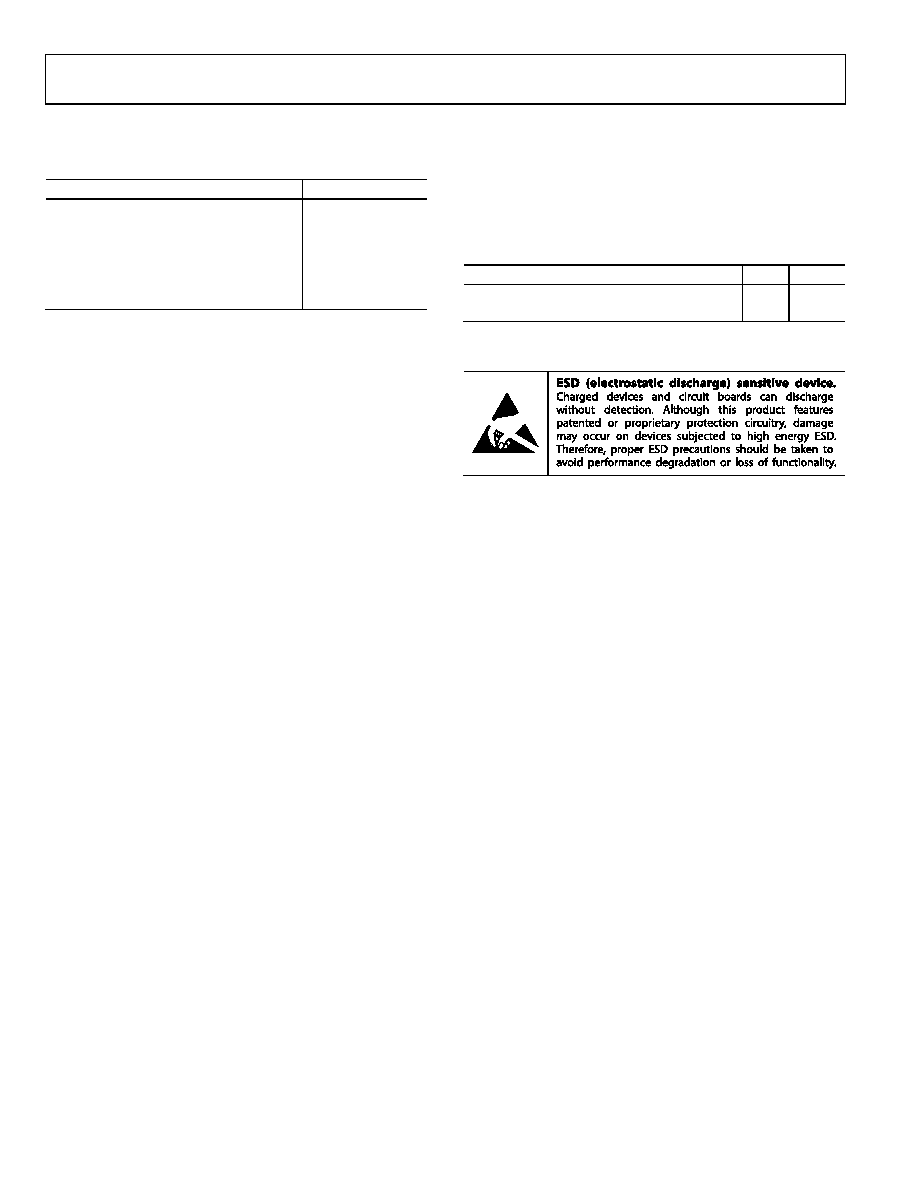

4 / 12 page

ADP3333

Rev. B | Page 4 of 12

ABSOLUTE MAXIMUM RATINGS

Table 2.

Parameter

Rating

Input Supply Voltage

−0.3 V to +16 V

Shutdown Input Voltage

−0.3 V to +16 V

Power Dissipation

Internally Limited

Operating Ambient Temperature Range

−40°C to +85°C

Operating Junction Temperature Range

−40°C to +125°C

Soldering Conditions

JEDEC J-STD-020

Stresses above those listed under Absolute Maximum Ratings

may cause permanent damage to the device. This is a stress

rating only; functional operation of the device at these or any

other conditions above those indicated in the operational

section of this specification is not implied. Exposure to absolute

maximum rating conditions for extended periods may affect

device reliability.

THERMAL RESISTANCE

θJA is specified for the worst-case conditions, that is, a device

soldered in a circuit board for surface-mount packages.

Table 3. Thermal Resistance

Package Type

Unit

8-Lead MSOP (4-Layer)

158

°C/W

8-Lead MSOP (2-Layer)

220

°C/W

ESD CAUTION
