146
Amphenol® RF:
800-627-7100
Type N
Type N

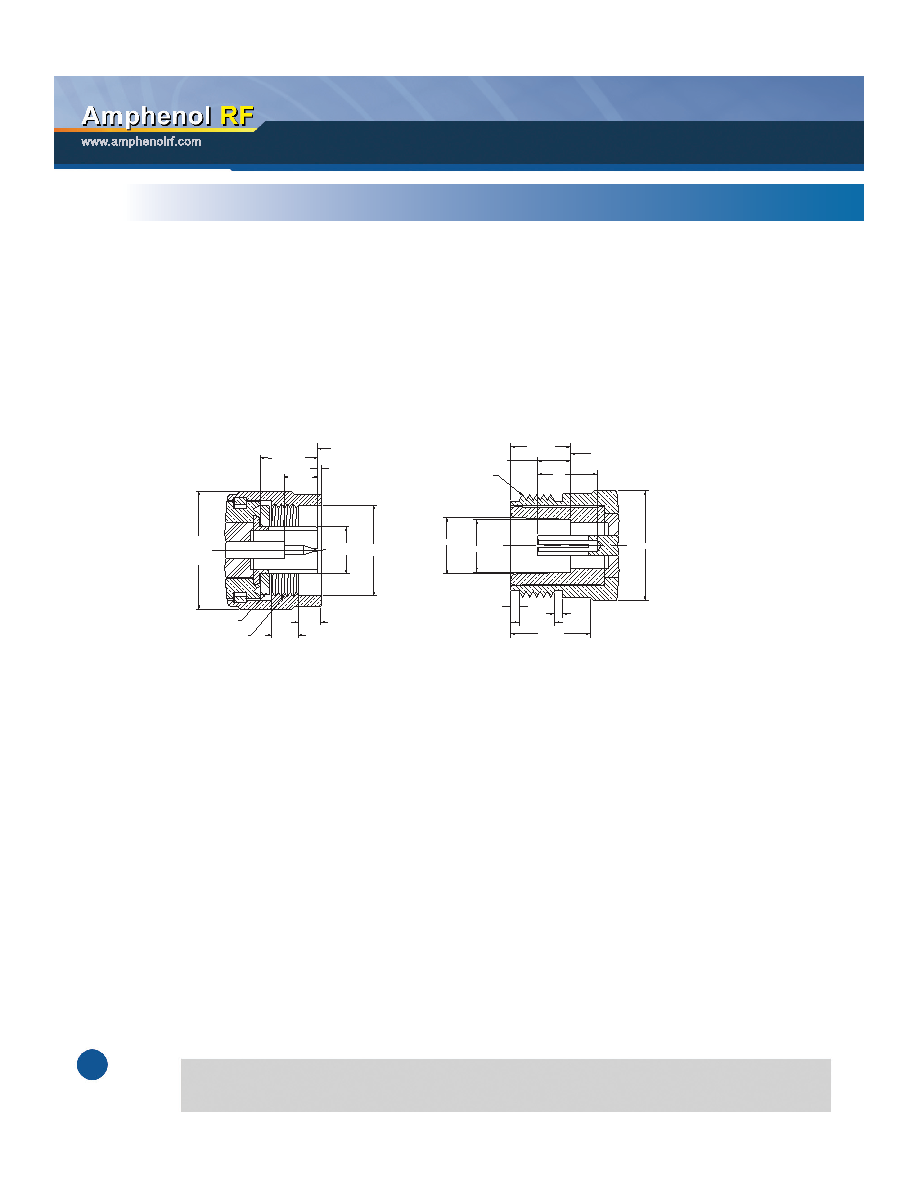

Type N Specifications (continued)
Material
Male contact
Brass, gold or silver plated
Female contact
Phosphor bronze or beryllium copper, gold or silver plated
Crimp ferrule
Copper or brass
Other metal parts
Brass, nickel plated
Insulator
PTFE, copolymer of styrene, glass TFE (herm. sealed)
Gasket
Silicone or synthetic rubber (weatherproof)
Military
MIL-STD-348A
where applicable
MIL-A-55339
where applicable
Plug
Jack
.412/.398
.230/.210
.060/.016
.177 MIN FULL THD.
.168/.158
Å.630 MIN
Å.330 MAX
Å.827 MAX
REF PLANE
SEALING GASKET
.625-24UNEF-2B
.210
.207/.187
.362/.356
.422 MIN
.077/.047
.202/.172 FULL THD.
.077/.047
Å.344/.336
Å.320/.316
Å.627 MAX
REF PLANE
.625-24UNEF-2A
MIN
