WI.DP1205-XXX-R DATASHEET
7
2. Application Information

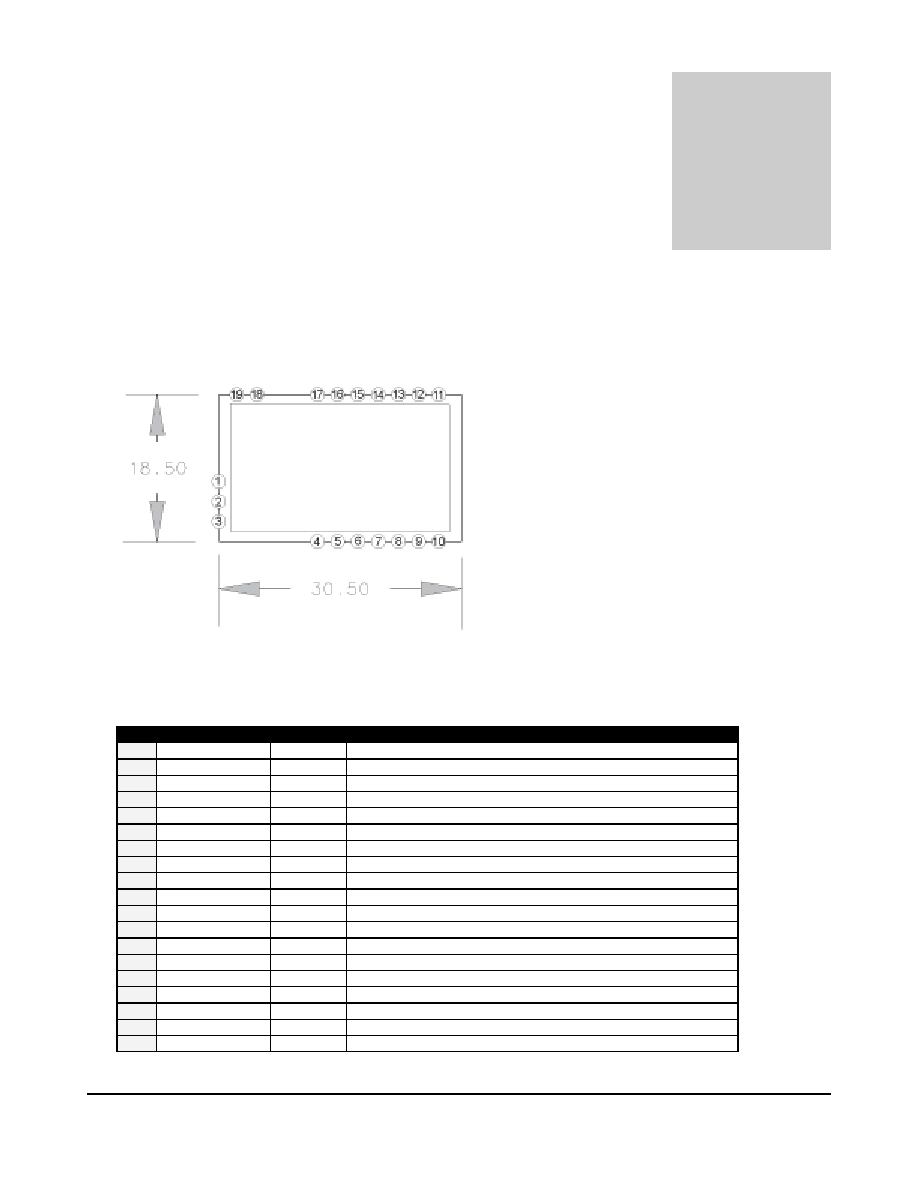

2.1. Pin-out Diagram
Figure 1: Pin-out Diagram
2.2. Pin Description
No.
Name
I/O
Description
1
GND
Ground
2
RF_IN_OUT
IN/ OUT
RF Input/ Output Terminal
3
GND
Ground
4
VDDA
Supply Voltage
5
GND
Ground
6
VDD
Supply Voltage
7
NSS_CONFIG
IN
SPI SELECT CONFIG
8
NSS_DATA
IN
SPI SELECT DATA/ DATAIN
9
IRQ0
OUT
Interrupt (PATTERN/FIFOEMPTY)
10
GND
Ground
11
GND
Ground
12
IRQ1
OUT
Interrupt (DCLK/FIFOFULL)
13
DATA
IN/ OUT
Data
14
CLKOUT
OUT
Output Clock at reference frequency divided by 2, 4, 8, 16, 32
15
MISO
OUT
SPI Master Input Slave Output
16
MOSI
IN
SPI Master Output Slave Input
17
SCK
IN
SPI CLOCK
18
SW(0)
IN/ OUT
Transmit/ Receive/ Standby/ Sleep Mode Select
19
SW(1)
IN/ OUT
Transmit/ Receive/ Standby/ Sleep Mode Select
Table 1, Module Pin Descriptions
