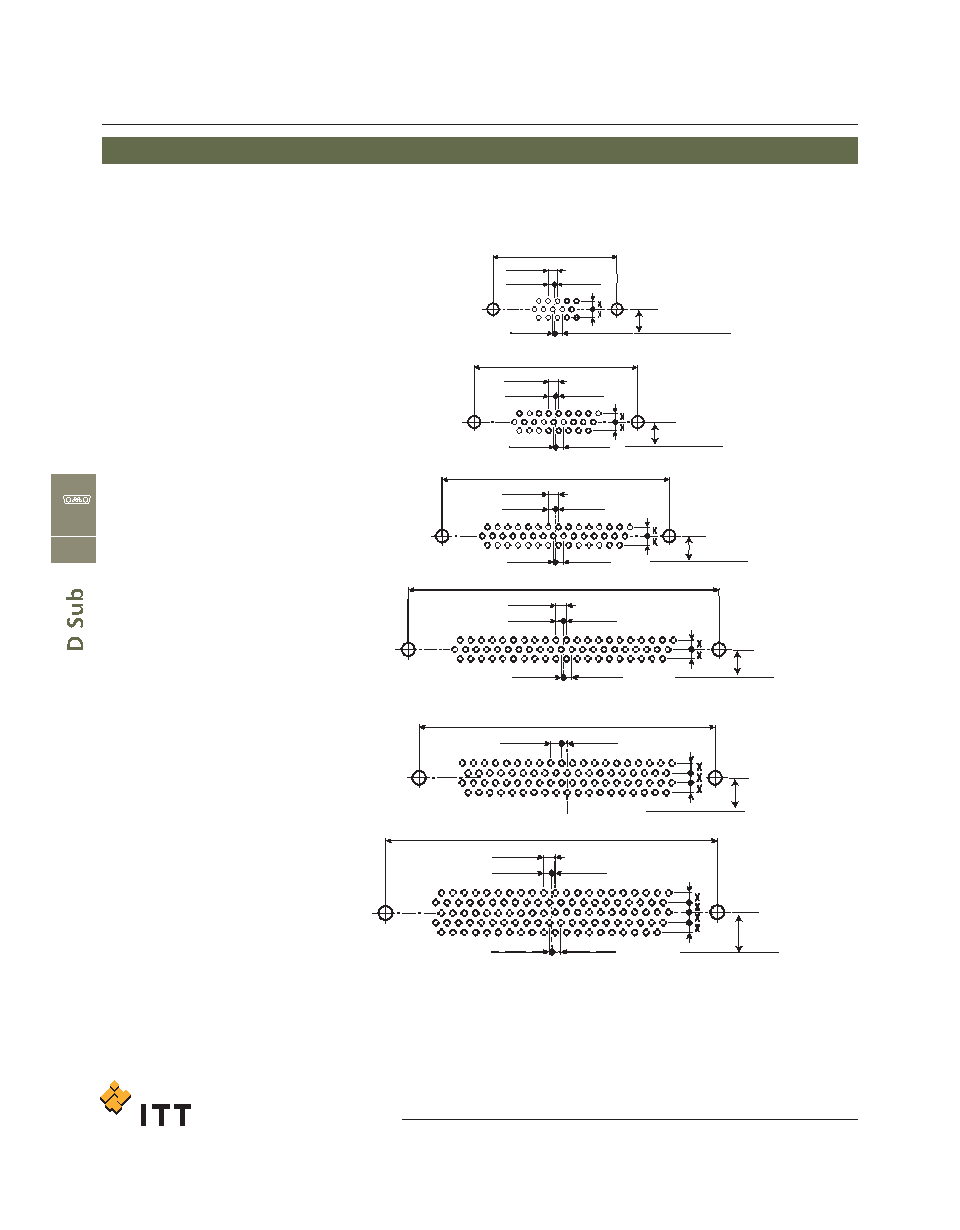

PCB Hole Pattern

D*MA High Density

C-48

www.ittcannon.com

Dimensions shown in inches (mm)

Specifications and dimensions subject to change

90° PCB Hole Pattern

24,99 (.984)

2,29 (.090)

2,04 (.080)

1,40 (.055)

0,89 (.035)

0,25 (.010)

33,32 (1.312)

2,29 (.090)

1,78 (.070)

0,51 (.020)

0,64 (.025)

1,65 (.065)

47,04 (1.852)

2,29 (.090)

1,78 (.070)

0,51 (.020)

0,64 (.025)

1,64 (.065)

63,50 (2.500)

1,63 (.064)

0,79 (.031)

0,42 (.0165)

2,41 (.095)

1,99 (0785)

61,11 (2.406)

2,41 (.095)

1,21 (.048)

63,50 (2.500)

1,83 (.072)

0,58 (.023)

0,62 (.024)

2,41 (.095

1,79 (070)

(Mating Side)

SIZE E

15 Contacts

SIZE A

26 Contacts

SIZE B

44 Contacts

SIZE C

62 Contacts

SIZE D

78 Contacts

SIZE F

104 Contacts

13,82 (0.544)

15.39 (0.606)

15.6 (0.614)

FROM REAR FLANGE SHELL REF

Face view, pin insert for plug

(use a mirror image for receptacle)

Dimension X

1,98 (.078) for sizes E, A, B, C

2,08 (.082) for size D

Recommended PC hole for signal contacts

0,90 (.035) min for terminations ? 0,51 (.020)

1,00 (.040) min for terminations ? 0,57 (.022)

Recommended PCB mounting hole

? 3.05 (.120)

ca_C1-C61.qxd:Layout 1

2/10/11

9:32 AM

Page 48
