Phihong USA Corporation • 47800 Fremont Blvd. Fremont, CA 94538 • Tel: 1.510.445.0100 Fax: 1.510.445.1678

www.phihong.com or www.midspans.com

-37-

4. To read individual Control values, highlight the individual control, then click Get under the SNMP

menu to read values from the highlighted control.

5. Change network setting:

WARNING: Only network administrator is allowed to alter this conﬁguration.

Network settings on the Phihong midspan can also be re-conﬁgured using your MIB Browser.

Users can enable DHCP to allow the network to assign an IP for the midspan automatically, or

disable DHCP and conﬁgure ipAddr, ipMask, defaultGetway, promaryDNS and secondaryDNS.

Remember entering <saveNewSettings> is required to ﬁx the new settings. Incorrect settings may

cause your midspan to lose its network connection or crash your network’s normal operation.

6. Trap operation (POE port status change notiﬁcations)

SETUP:

a. Expand the MIB Tree to: iso/org/dod/internet/private/enterprises/phihong/poe/snmp.

b. Highlight <snmpTrapHost>, click Set under the SNMP menu. Entering your PC’s IP

address in xxx.xxx.xx.x format. (You can get your PC’s IP address by entering <ipconﬁg>

in the Command Prompt window). Click the icon in the upper left hand corner in the Set –

snmpTraphost.0 window to save the settings.

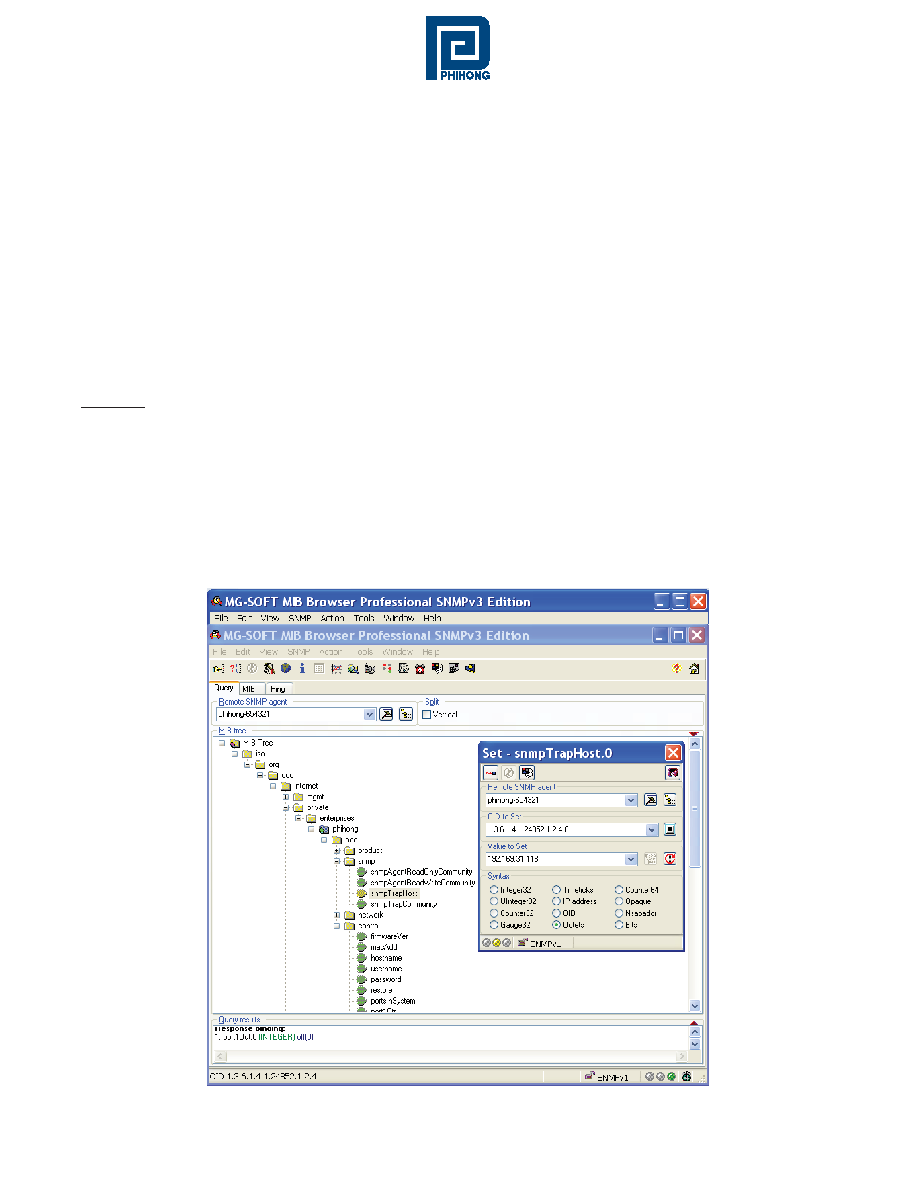

Figure 30: Set IP Address of Trap Reciever
