TS2PCIE412
www.ti.com
SCDS269C – MARCH 2009 – REVISED APRIL 2010
TYPICAL PERFORMANCE (continued)
10-inch trace board for real implementation, VDD = 1.8 V, f = 1.25 GHz, transitional signal and non-transitional signal eye from
Tektronix TDS6154C and Tektronix RT-Eye
＝ software

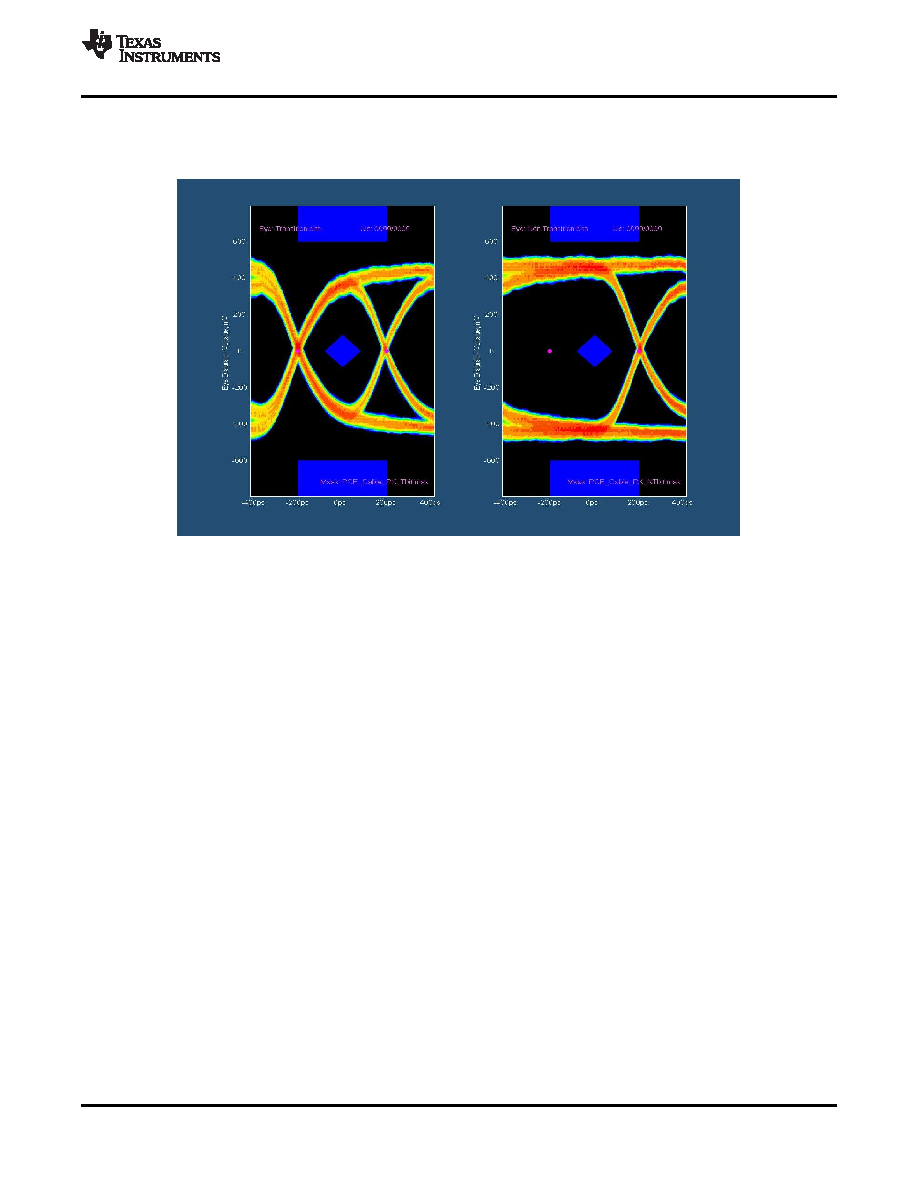

Figure 5. Transitional Signal Eye (Left) and Non-Transitional Signal Eye (Right) for TS2PCIE412 Using a 10-inch Trace
Copyright © 2009–2010, Texas Instruments Incorporated
Submit Documentation Feedback
7
Product Folder Link(s): TS2PCIE412
