ADRF6704
Data Sheet
Rev. 0 | Page 14 of 36
0
10
20
30
40
50
60
70
80
90
100
–161
–160
–159
–158
–157
–156
–155
NOISE FLOOR (dBm/Hz)
2500MHz
2700MHz
2900MHz

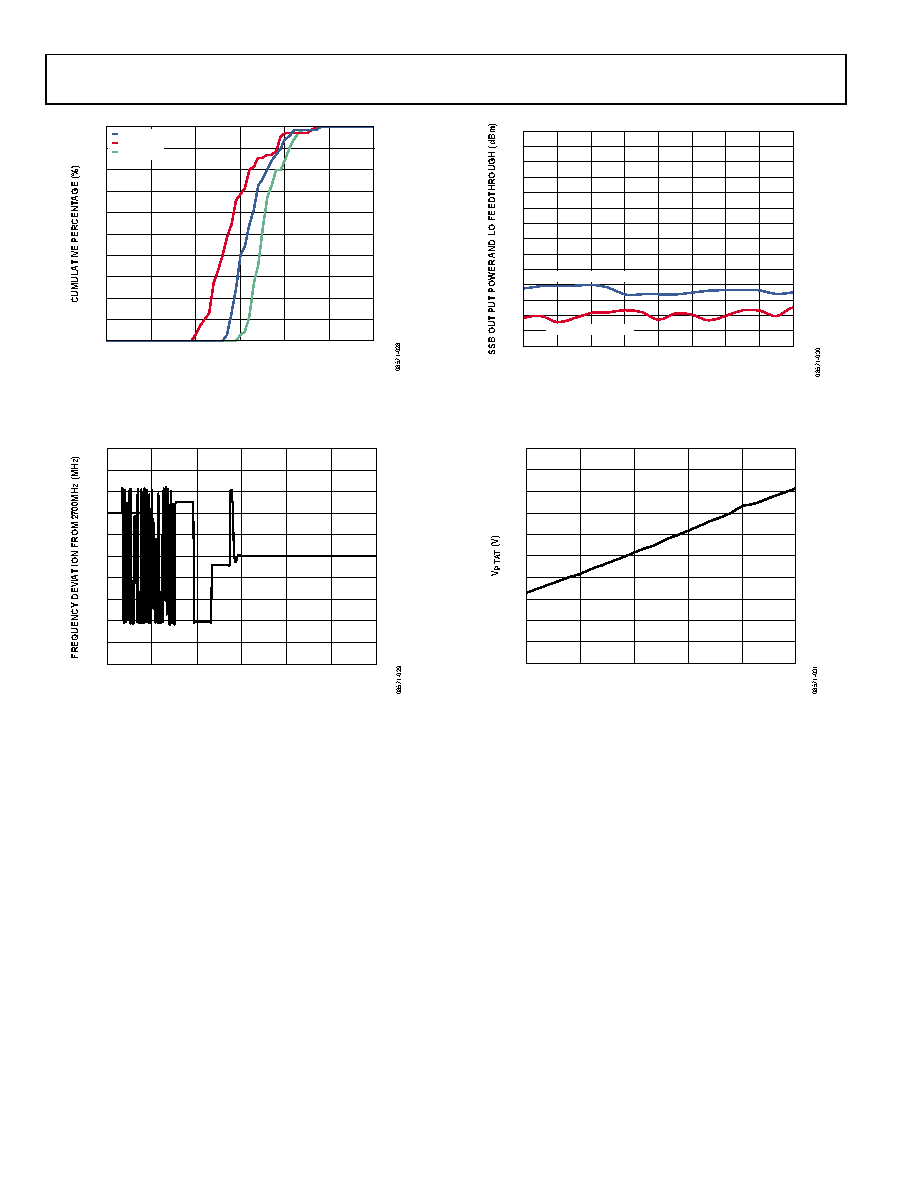

Figure 28. IQ Modulator Noise Floor Cumulative Distributions at 2500 MHz,
2700 MHz, and 2900 MHz
–25
–20
–15
–10
–5
0
5
10
15
20
25
0
50
100
150
200
250
300
TIME (µs)
Figure 29. Frequency Deviation from LO Frequency at
LO = 2.71 GHz to 2.7 GHz vs. Lock Time
–100
–95
–90
–85
–80
–75
–70
–65
–60
–55
–50
–45
–40
–35
–30
2500
2550
2600
2650
2700
2750
2800
2850
2900
LO FREQUENCY (MHz)
SSB OUTPUT POWER
LO FEEDTHROUGH
Figure 30. SSB Output Power and LO Feedthrough with RF Output Disabled
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
–40
–15
10
35
60
85
TEMPERATURE (°C)
Figure 31. VPTAT Voltage vs. Temperature
