ADL5336ACPZ-R7 datasheet(30/32 Pages) AD

30 / 32 page

ADL5336

Data Sheet

Rev. B | Page 30 of 32

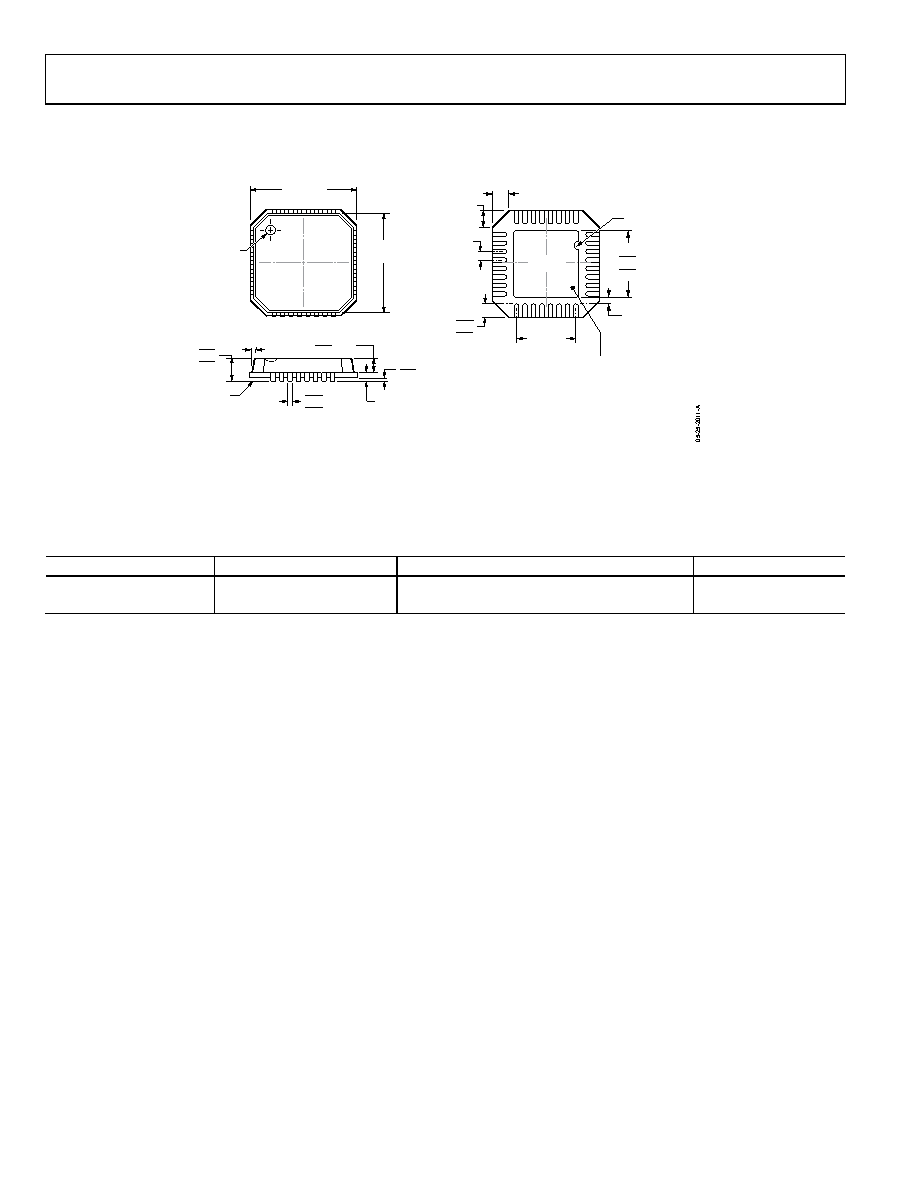

OUTLINE DIMENSIONS

Figure 75. 32-Lead Lead Frame Chip Scale Package [LFCSP_VQ]

5 mm × 5 mm Body, Very Thin Quad

(CP-32-2)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

ADL5336ACPZ-R7

−40°C to +85°C

32-Lead LFCSP_VQ, 7”Tape and Reel

CP-32-2

ADL5336-EVALZ

Evaluation Board

1 Z = RoHS Compliant Part.

3.25

3.10 SQ

2.95

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

COMPLIANT TO JEDEC STANDARDS MO-220-VHHD-2

COPLANARITY

0.08

3.50 REF

0.50

BSC

PIN 1

INDICATOR

PIN 1

INDICATOR

0.30

0.25

0.18

0.20 REF

12° MAX

0.80 MAX

0.65 TYP

1.00

0.85

0.80

0.05 MAX

0.02 NOM

SEATING

PLANE

0.50

0.40

0.30

5.00

BSC SQ

4.75

BSC SQ

0.60 MAX

0.25 MIN

TOP VIEW

EXPOSED

PAD

BOTTOM VIEW
