BAV70W

Preliminary

DIODE

UNISONICTECHNOLOGIESCO.,LTD

2 of 3

www.unisonic.com.tw

QW-R601-038.a

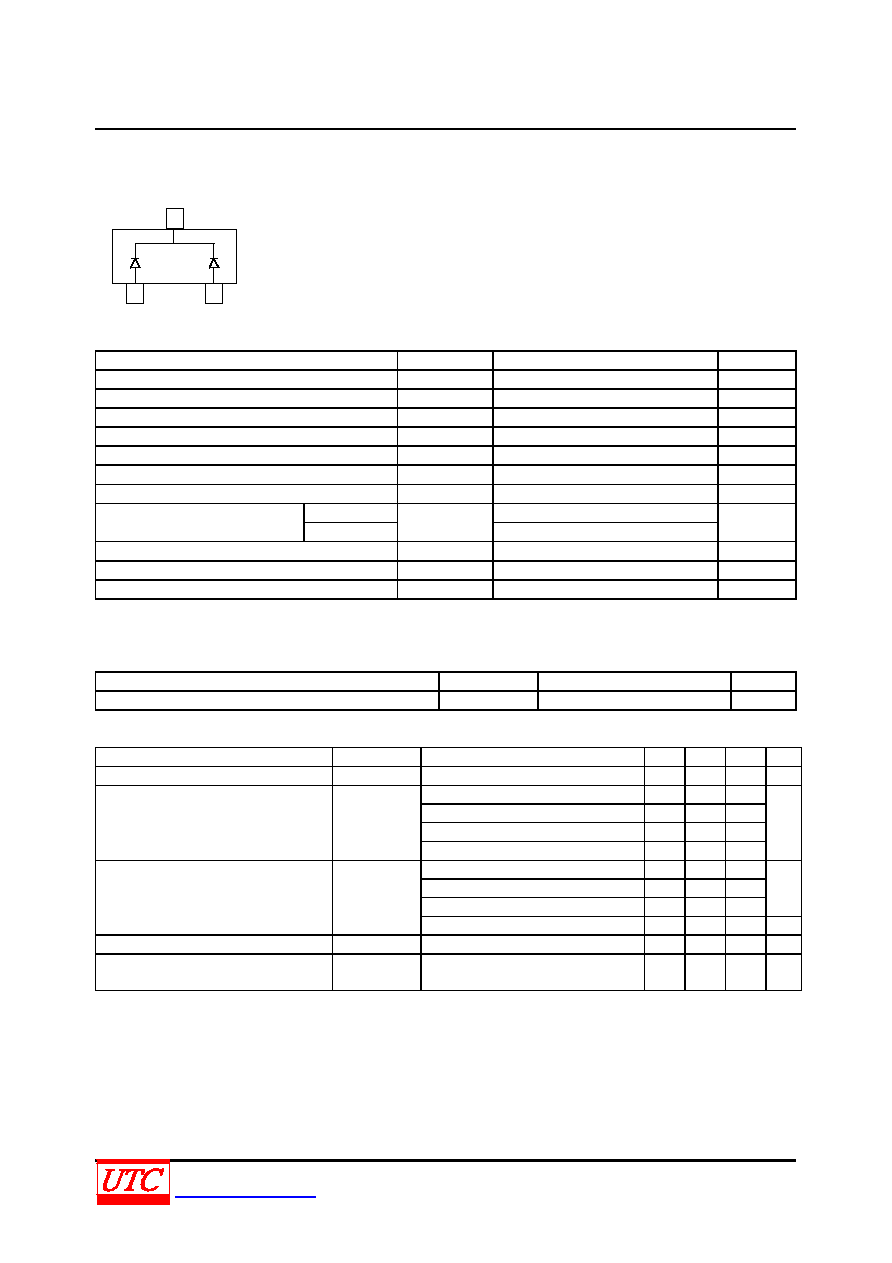

PIN CONFIGURATION

ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise specified)

PARAMETER

SYMBOL

RATINGS

UNIT

Non-Repetitive Reverse Voltage

VRM

100

Peak Repetitive Reverse Voltage

VRRM

Working Peak Reverse Voltage

VRWM

DC Blocking Voltage

RMS Reverse Voltage

VR(RMS)

Forward Continuous Current

IFM

300

Average Rectified Output Current

150

@ t = 1.0μs

2.0

Non-Repetitive Peak Forward

Surge Current

@ t = 1.0s

IFSM

1.0

Power Dissipation

200

Operating Temperature

-65~+150

°C

Storage Temperature

TSTG

-65~+150

°C

Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.

Absolute maximum ratings are stress ratings only and functional device operation is not implied.

THERMAL DATA

PARAMETER

SYMBOL

RATINGS

UNIT

Thermal Resistance Junction to Ambient Air

θJA

625

°C/W

ELECTRICAL CHARACTERISTICS (TA =25°C unless otherwise specified.)

PARAMETER

SYMBOL

TEST CONDITIONS

MIN TYP MAX UNIT

Reverse Breakdown Voltage (Note 1)

V(BR)R

IR= 100μA

IF= 1.0mA

0.715

IF= 10mA

0.855

IF= 50mA

1.0

Forward Voltage

IF= 150mA

1.25

VR= 75V

2.5

VR= 75V, TJ= 150°C

VR= 25V, TJ= 150°C

μA

Reverse Current (Note 1)

VR=20V

Total Capacitance

VR= 0, f = 1.0MHz

2.0

Reverse Recovery Time

trr

IF= IR= 10mA, Irr = 0.1 x IR,

RL= 100Ω

4.0

Notes: 1. Short duration test pulse used to minimize self-heating effect.
