L5100
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 7
www.unisonic.com.tw
QW-R103-024.D

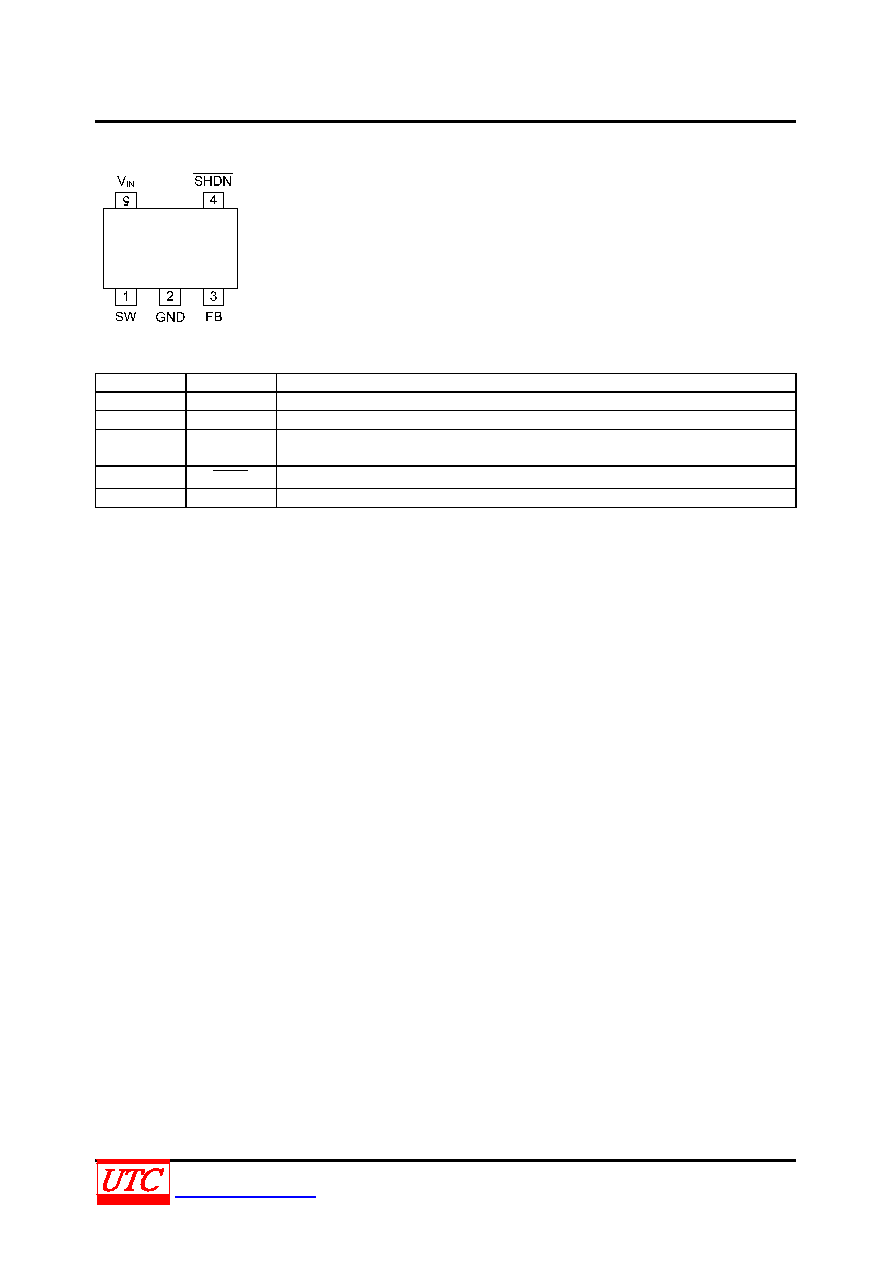

PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
SW
Switch. Connect inductor/diode here. Minimize trace area at this pin to reduce EMI.
2
GND
Ground. Connect directly to local ground plane.
3
FB
Feedback. Reference voltage is 95mV. Connect cathode of lowest LED and resistor
here. Calculate resistor value according to the formula: RFB = 95mV/ILED
4
SHDN
Shutdown. Connect to 1.5V or higher to enable device; 0.4V or less to disable device.
5
VIN
Input Supply Pin. Must be locally bypassed.
