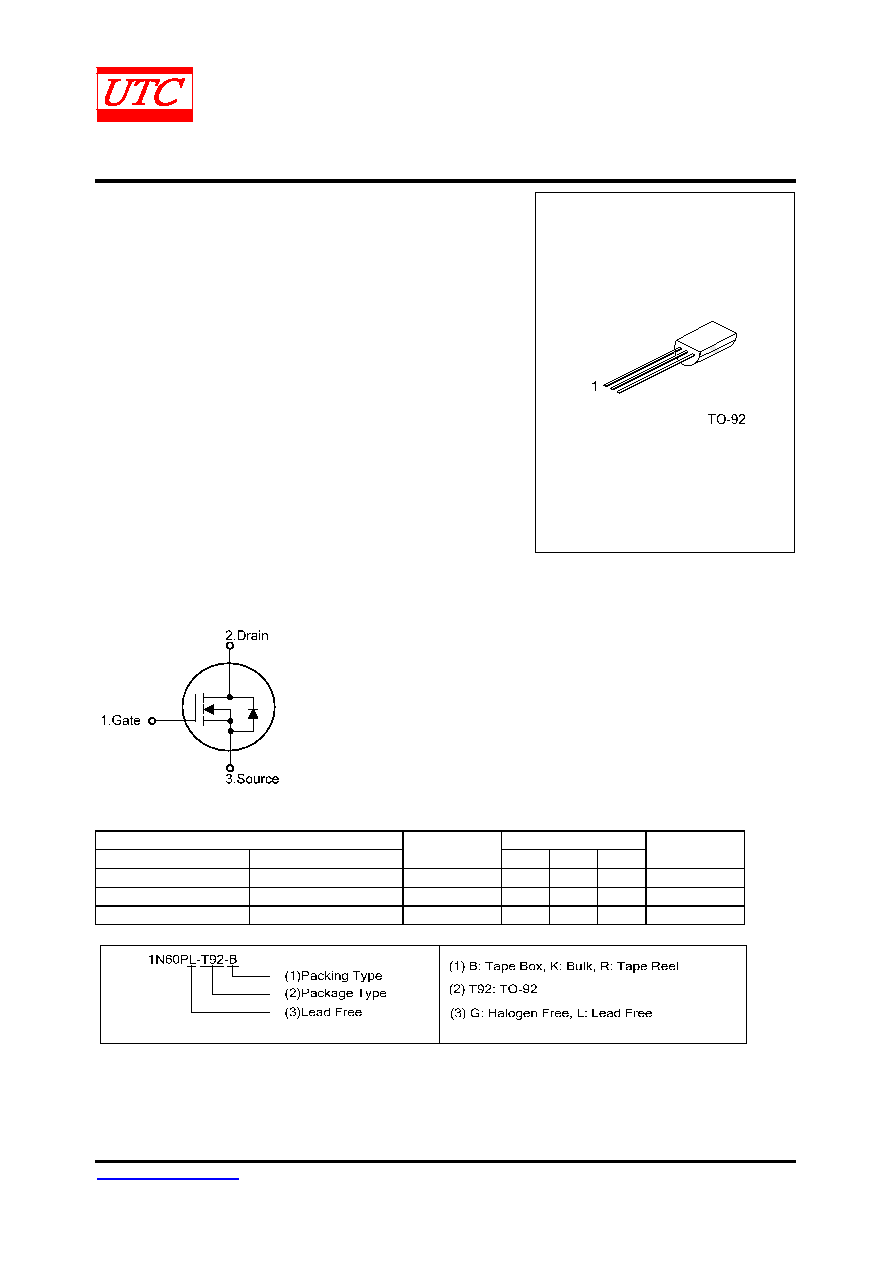

UNISONIC TECHNOLOGIES CO., LTD

1N60P

Power MOSFET

www.unisonic.com.tw

1 of 6

QW-R502-634.A

1.2A, 600V N-CHANNEL

POWER MOSFET

DESCRIPTION

The UTC 1N60P is a high voltage power MOSFET and is

designed to have better characteristics, such as fast switching

time, low gate charge, low on-state resistance and a high rugged

avalanche characteristic. This power MOSFET is usually used at

high speed switching applications of power supplies, PWM motor

controls, high efficient DC to DC converters and bridge circuits.

FEATURES

* RDS(ON) =11.5Ω@VGS = 10V.

* Ultra Low gate charge (typical 5.0nC)

* Low reverse transfer capacitance (CRSS = typical 3.0 pF)

* Fast switching capability

* Avalanche energy specified

* Improved dv/dt capability, high ruggedness

SYMBOL

ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

3

Packing

1N60PL-T92-B

1N60PG-T92-B

TO-92

G

D

S

Tape Box

1N60PL-T92-K

1N60PG-T92-K

TO-92

G

D

S

Bulk

1N60PL-T92-R

1N60PG-T92-R

TO-92

G

D

S

Tape Reel

Note: Pin Assignment: G: Gate D: Drain S: Source
