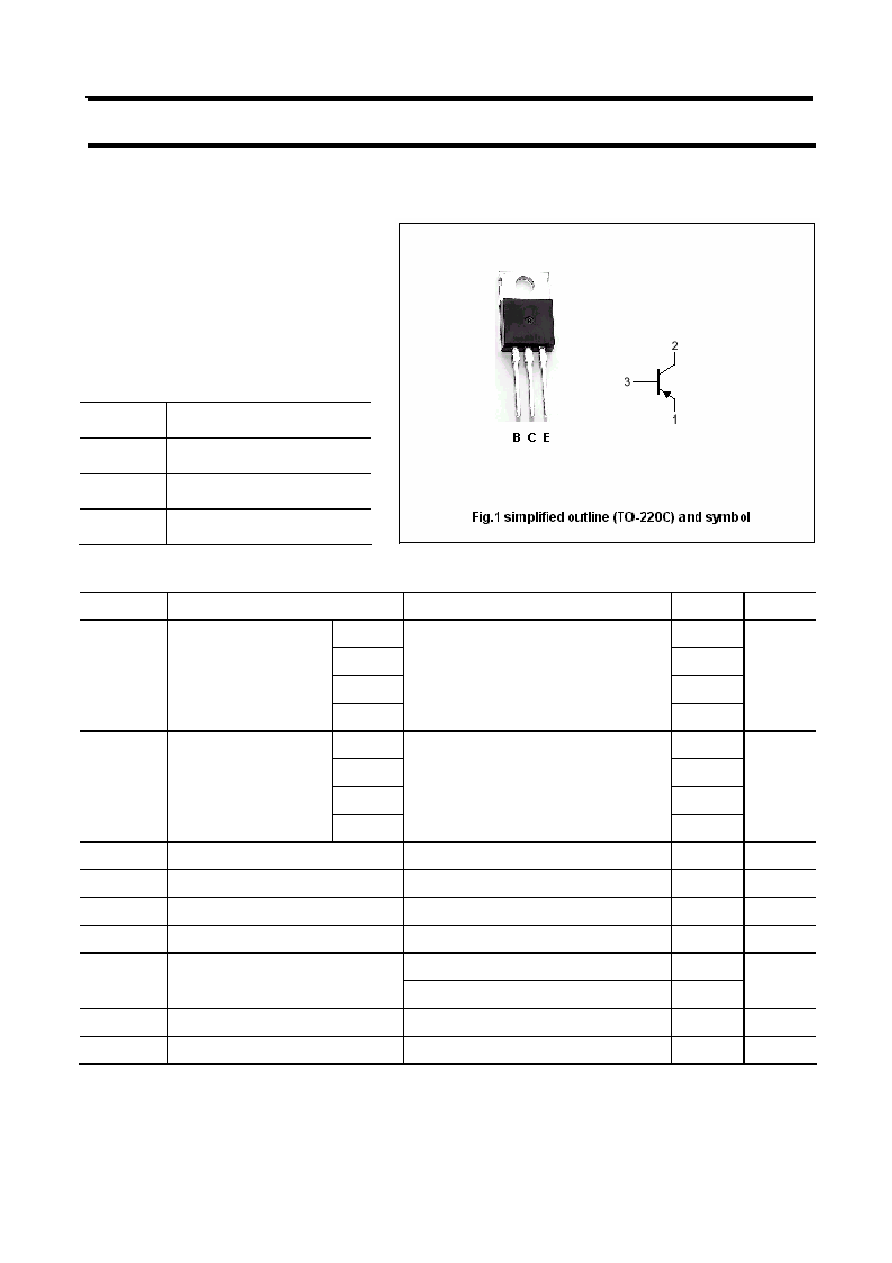

1 / 4 page

Inchange Semiconductor

Product Specification

Silicon PNP Power Transistors

TIP32/32A/32B/32C

DESCRIPTION

・

・With TO-220C package

・Complement to type TIP31/31A/31B/31C

APPLICATIONS

・Medium power linear and switching

applications

PINNING

DESCRIPTION

1

Emitter

2

Collector;connected to

mounting base

3

Base

Absolute maximum ratings(Ta=25℃)

SYMBOL

PARAMETER

CONDITIONS

VALUE

UNIT

TIP32

-40

TIP32A

-60

TIP32B

-80

VCBO

Collector-base voltage

TIP32C

Open emitter

-100

V

TIP32

-40

TIP32A

-60

TIP32B

-80

VCEO

Collector-emitter voltage

TIP32C

Open base

-100

V

VEBO

Emitter-base voltage

Open collector

-5

V

IC

Collector current (DC)

-3

A

ICM

Collector current-Pulse

-5

A

IB

Base current

-1

A

TC=25℃

40

PC

Collector power dissipation

Ta=25℃

2

W

Tj

Junction temperature

150

℃

Tstg

Storage temperature

-65~150

℃
