Package mechanical data
LD1117xx
36/42
Doc ID 2572 Rev 28

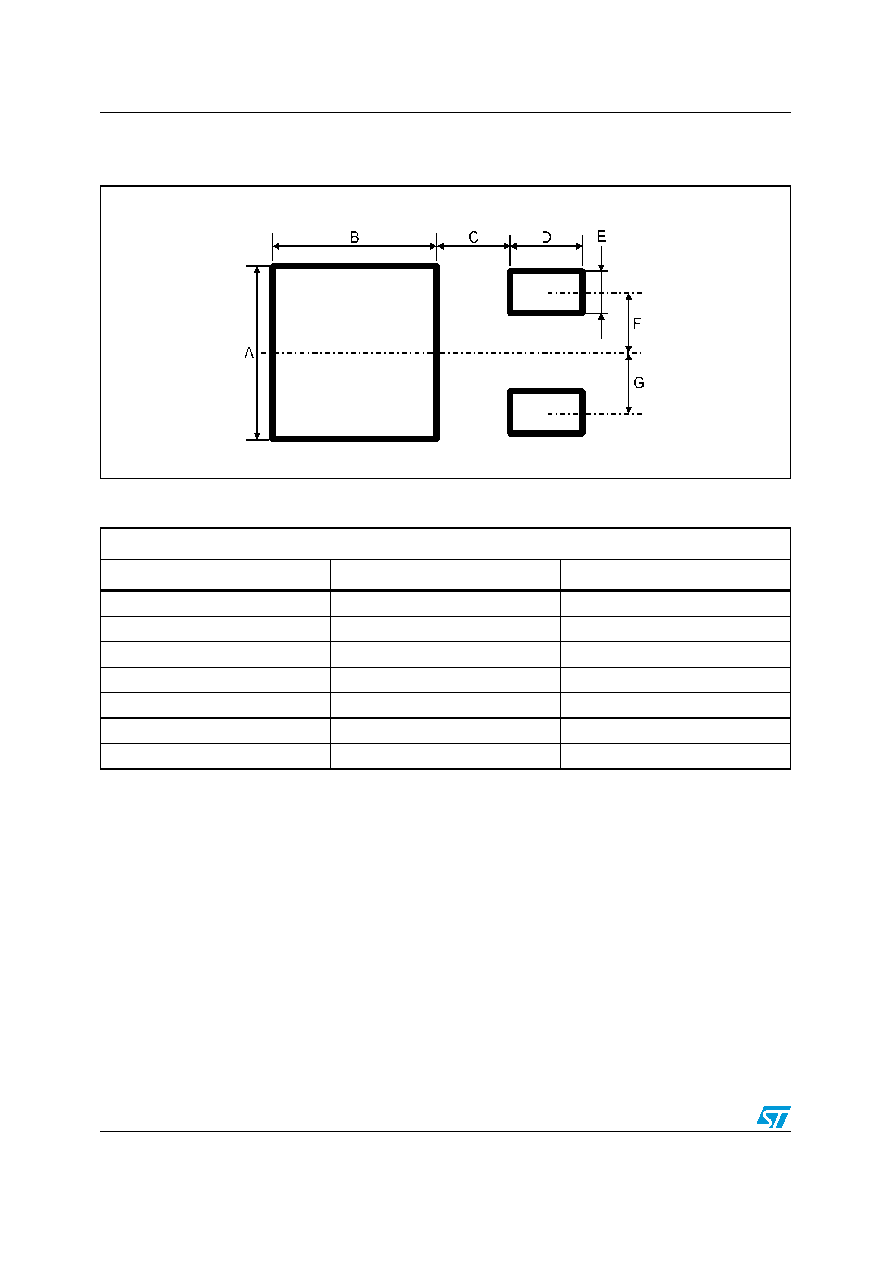

Figure 20.
DPAK footprint recommended data
Table 19.
Footprint data
Values
mm.
inch.
A6.70
0.264
B
6.70
0.64
C
1.8
0.070
D
3.0
0.118
E1.60
0.063
F2.30
0.091
G2.30
0.091
