ADT7461
http://onsemi.com
18

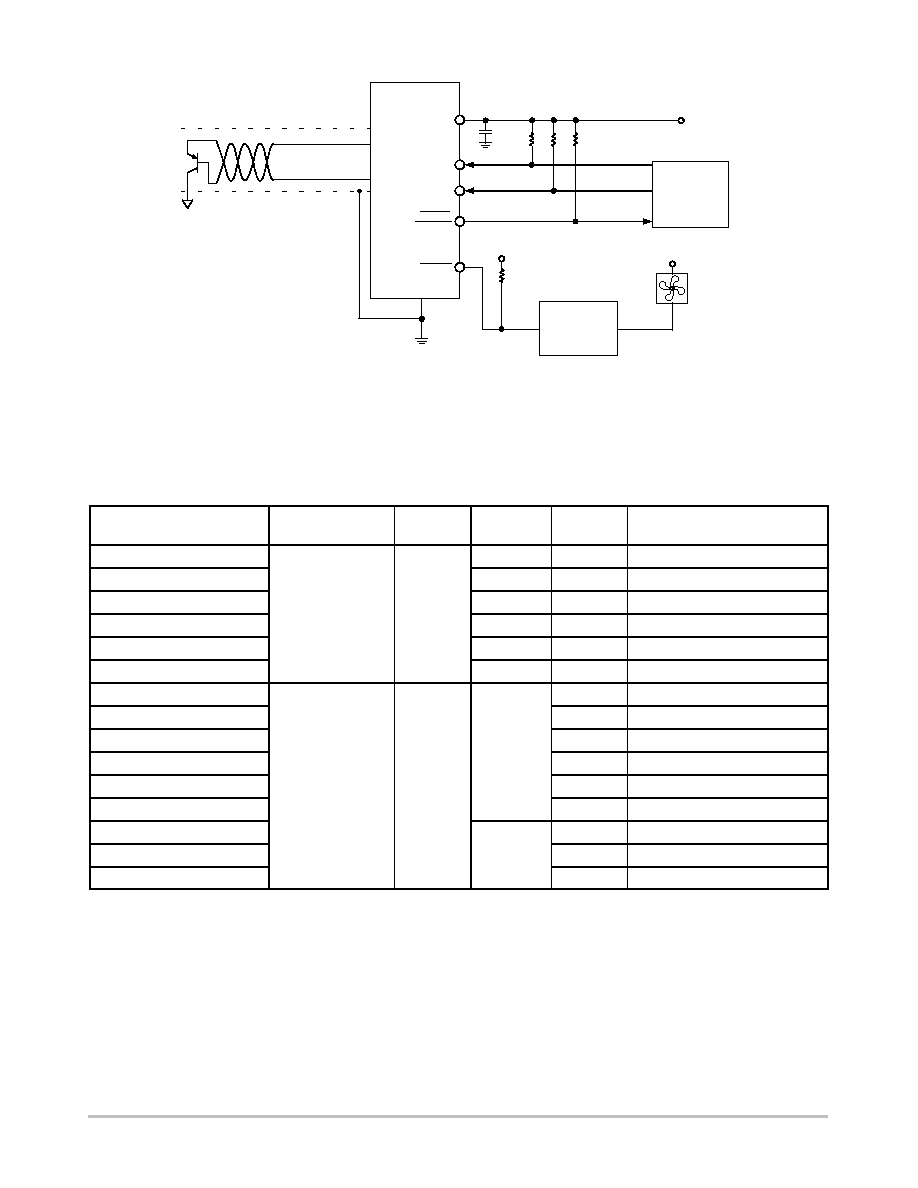

Figure 24. Typical Application Circuit
SHIELD
2N3906
OR
CPU THERMAL
DIODE
ALERT/
THERM2
GND
THERM
D+
D–
ADT7461
SCLK
SDATA
VDD
VDD
3V TO 3.6V
TYP 10kΩ
TYP 10kΩ
0.1μF
FAN
CONTROL
CIRCUIT
FAN
ENABLE
SMBUS
CONTROLLER
5V OR 12V
ORDERING INFORMATION
Device Order Number*
Package
Description
Package
Option
Branding
SMBus
Address
Shipping†
ADT7461AR
8−Lead SOIC_N
R−8
−
4C
98 Tube
ADT7461AR−REEL
−
4C
2500 Tape & Reel
ADT7461AR−REEL7
−
4C
1000 Tape & Reel
ADT7461ARZ
−
4C
98 Tube
ADT7461ARZ−REEL
−
4C
2500 Tape & Reel
ADT7461ARZ−REEL7
−
4C
1000 Tape & Reel
ADT7461ARM
8−Lead MSOP
RM−8
T1B
4C
50 Tube
ADT7461ARM−REEL
4C
3000 Tape & Reel
ADT7461ARM−REEL7
4C
1000 Tape & Reel
ADT7461ARMZ
4C
50 Tube
ADT7461ARMZ−REEL
4C
3000 Tape & Reel
ADT7461ARMZ−R7
4C
1000 Tape & Reel
ADT7461ARMZ−002
T1F
4D
50 Tube
ADT7461ARMZ−2R
4D
3000 Tape & Reel
ADT7461ARMZ−2RL7
4D
1000 Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
*The “Z’’ suffix indicates Pb−Free package available.
