AM26LS32AC
,, AM26LS32AI,, AM26LS33AC
AM26LS32AM, AM26LS33AM
QUADRUPLE DIFFERENTIAL LINE RECEIVERS
SLLS115E – OCTOBER 1980 – REVISED OCTOBER 2007
TYPICAL CHARACTERISTICS (continued)

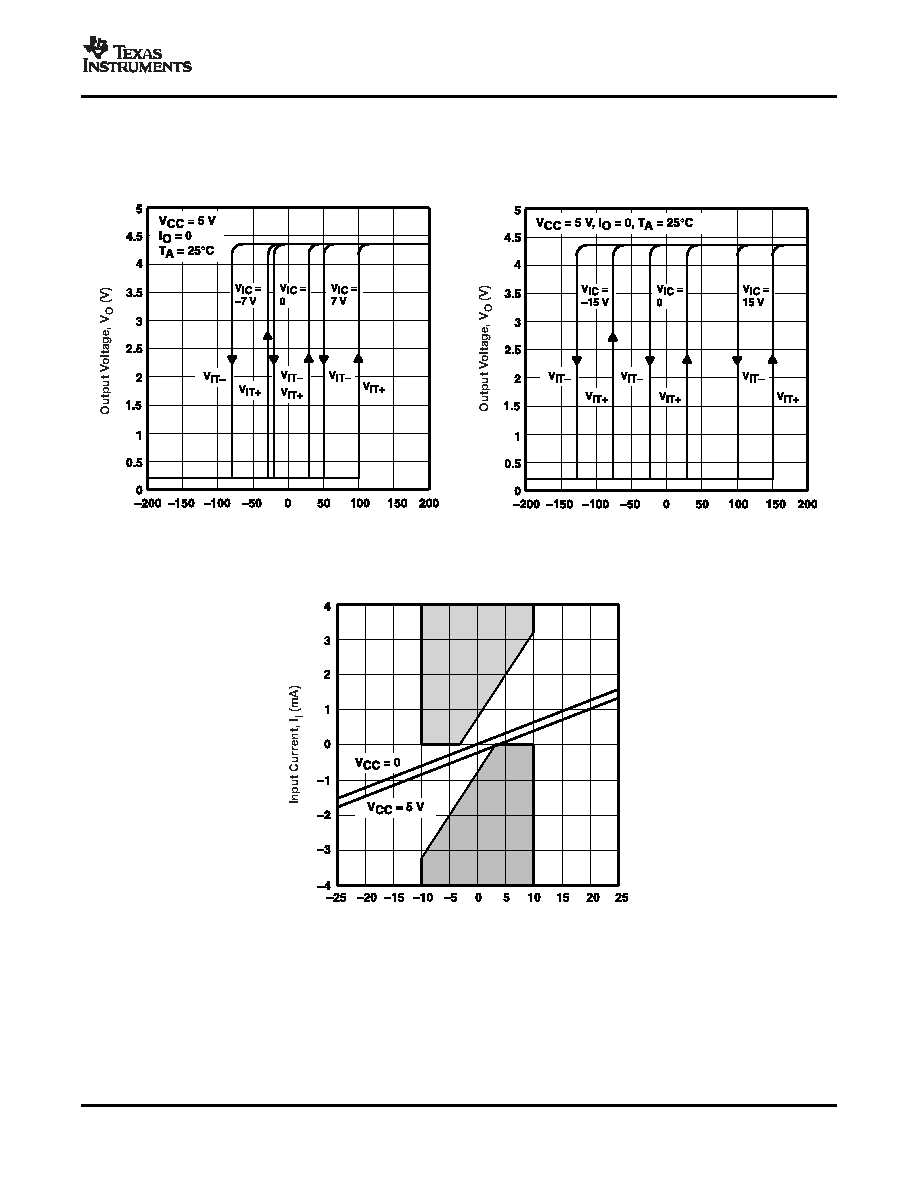

AM26LS32A
AM26LS33A
OUTPUT VOLTAGE
OUTPUT VOLTAGE
vs
vs
DIFFERENTIAL INPUT VOLTAGE
DIFFERENTIAL INPUT VOLTAGE
Figure 10.
Figure 11.
INPUT CURRENT
vs
INPUT VOLTAGE
The unshaded area shows requirements of
paragraph 4.2.1 of ANSI Standards
EIA/TIA-422-B and EIA/TIA-423-B.
Figure 12.
Copyright © 1980–2007, Texas Instruments Incorporated
Submit Documentation Feedback
9
Product Folder Link(s): AM26LS32AC AM26LS32AI AM26LS33AC AM26LS32AM AM26LS33AM
